Space Communication

Space communication is how we send messages into space and receive them back. This amazing technology lets us control space robots, talk to astronauts, and listen to distant stars and planets. It's very important for exploring space because it helps scientists learn new things and keeps space missions safe. It is like the main support for exploring other planets, helping not only with finding out new things but also making sure that missions far from Earth go well and are safe.

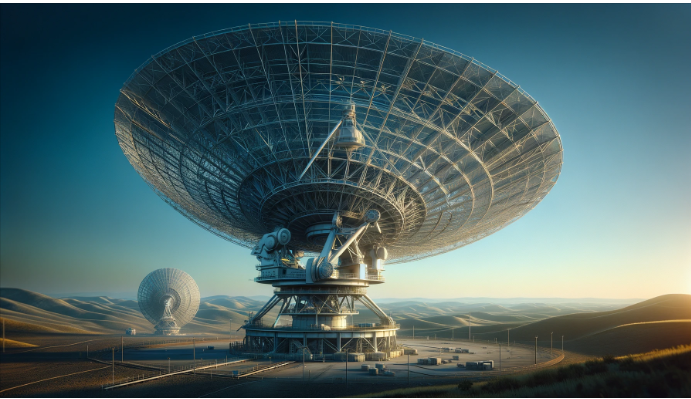

Long ago, we started by sending simple signals to the moon. Over time, this has grown into a very advanced system called the Deep Space Network. This network helps us talk to spacecraft that are very far away, even to the edges of our solar system. As we have improved space communication, it has become a mix of technology, the science of matter and energy (physics), and the design and building of structures (engineering).

This note will talk about how space communication works, the challenges we face, and what we might do in the future. We'll look at how humans have figured out ways to send messages across the huge distances of space, connecting us with the universe.

Principles and Component of the Space Communication

The fundamental principle of space communication lies in the transmission of electromagnetic waves, primarily in the radio frequency spectrum, between a transmitter and a receiver over vast distances. These principles are utilized to design the communication systems that enable data transfer between spacecraft and Earth, allowing for the command and control of missions, as well as the retrieval of scientific data.

  • Electromagnetic Wave Transmission: Space communication uses radio waves because they travel long distances, including through the vacuum of space, and are less affected by atmospheric conditions than other forms of electromagnetic radiation.
  • Transmitters and Receivers: Spacecraft are equipped with transmitters to send signals back to Earth and receivers to receive commands from Earth. Ground stations on Earth have large dish antennas that act as receivers and transmitters to communicate with spacecraft.
    • The specific values for transmission (TX) power and reception (RX) sensitivity can vary widely depending on the type of spacecraft, the communication system used, and the distance over which the communication needs to occur
    • TX Power for Spacecraft:
      • CubeSats: Can have low transmission powers, typically in the range of 1 to 5 watts, due to their small size and limited power availability.
      • Earth Observation Satellites: May transmit with power levels of 5 to 50 watts for Low Earth Orbit (LEO) operations.
      • Deep Space Probes (like Voyager or New Horizons): Use higher transmission powers, which can be hundreds of watts. For example, the Voyager 1 spacecraft has a transmission power of around 22 watts.
    • RX Sensitivity for Ground Stations:
      • Deep Space Network (DSN) Antennas: These are highly sensitive and can detect extremely weak signals, often at levels of a fraction of a femtowatt (10^-15 watts). For instance, the DSN's 34-meter antennas can detect signals as weak as -160 dBm (decibels referenced to one milliwatt).
      • Typical Satellite Ground Stations: Can have receiver sensitivity levels around -100 to -130 dBm.
    • RX Sensitivity for Spacecraft:
      • Mars Rovers: These can have receiver sensitivities capable of detecting very weak signals due to the long distances involved. They must operate with the noise and potential interference from the Martian atmosphere and environment.
      • Interplanetary Spacecraft: Have highly sensitive receivers to pick up signals from Earth. These receivers are designed to operate with the thermal noise limit as the primary sensitivity constraint.
    • Factors Affecting TX Power and RX Sensitivity:
      • Path Loss: For a given frequency, the free-space path loss can be calculated using the formula L = (4πd / λ)2 , where d is the distance and λ is the wavelength
      • Antenna Gain: High-gain antennas can improve both transmission and reception by focusing the signal in a particular direction. Antenna gains for spacecraft typically range from a few dB for omnidirectional antennas to 40-50 dB for high-gain directional antennas.
    • Efficiency and Constraints:
      • Power Efficiency: Satellites and probes prioritize power efficiency; high TX power requires more energy, which is at a premium on spacecraft.
      • Size and Weight: The size and weight of the power supply and antenna also constrain the design, as every extra kilogram requires more fuel to launch and operate.
  • Modulation: This involves varying a wave signal (like a radio or light wave) to encode information. Data from spacecraft instruments is often converted into digital form, modulated onto a carrier wave, and then transmitted. Space communication systems select modulation techniques based on factors like the mission's distance, required data rates, power availability, and the intended lifespan of the mission. Moreover, these techniques are often tailored and optimized for specific missions and spacecraft capabilities.
    • Phase-Shift Keying (PSK):This is one of the most commonly used digital modulation techniques in space communication. It is favored for its spectral efficiency and the ability to carry more bits per symbol, which is advantageous given the limited bandwidth in space.
    • Binary PSK (BPSK):The simplest form, where the phase of the carrier signal is shifted between two distinct states to represent binary 0s and 1s.
    • Quadrature PSK (QPSK):Uses four phase shifts to represent two bits per symbol.
    • Higher-order PSK:Includes 8PSK, 16PSK, etc., which encode more bits per symbol but require a higher signal-to-noise ratio.
    • Frequency-Shift Keying (FSK): Less common in deep space due to its lower spectral efficiency, but it can be used for shorter distances or for beacon signals because of its simplicity.
    • Quadrature Amplitude Modulation (QAM):Combines both amplitude and phase modulation to increase the bandwidth efficiency further. It is more complex and is used in systems where high data rate transmission is required and the signal-to-noise ratio is sufficiently high.
    • Differential Modulation:This technique is used to combat the issues with signal phase ambiguity. Differential modulation, like Differential PSK (DPSK), does not require a reference phase at the receiver and instead uses the difference between consecutive symbols to convey information.
    • Continuous Phase Modulation (CPM):Includes techniques like Gaussian Minimum Shift Keying (GMSK), where the phase of the signal is modulated in a continuous manner. It is useful for reducing the bandwidth of the signal and is utilized in some satellite communication systems.
    • Pulse-Position Modulation (PPM):Used in optical space communications (laser communications), where the position of a pulse in time is varied to convey data. It is preferred for its energy efficiency, which is critical for deep space missions.
    • Error Correction Coding:Not a modulation scheme, but often discussed alongside modulation, as it is crucial for ensuring the integrity of received data. Convolutional coding, Turbo coding, and Low-Density Parity-Check (LDPC) codes are often used in conjunction with modulation to correct errors induced during the signal's long journey.
  • Frequency Bands: Different frequency bands (like S-band, X-band, and Ka-band) are used for different purposes, balancing factors like data rate, power requirements, and atmospheric interference.
  • Antennas: High-gain antennas are used for deep space communication to focus the signal into a narrow beam, which is more effective over long distances.
  • Signal Propagation: Once a signal is transmitted, it propagates at the speed of light. However, due to the vast distances in space, there can be significant delays. For example, a signal from Mars can take anywhere from 3 to 22 minutes to reach Earth, depending on the planets' positions in their orbits.
  • Doppler Effect: The frequency of the signal can change due to the relative motion between the spacecraft and the ground station (like the change in pitch of a passing siren), which must be accounted for in signal processing.
  • Error Correction: Techniques are used to detect and correct errors in received data, which are common due to the weak signals and interference in space.
  • Deep Space Network (DSN): A worldwide network of large antennas and communication facilities supports interplanetary spacecraft missions, as well as some orbiting Earth.
  • Protocols and Standards: Communication protocols, such as those developed by the Consultative Committee for Space Data Systems (CCSDS), standardize how data is formatted and transmitted.
