When you study the physical frame structure of LTE, you may be impressed by flexibility (meaning complexity in other way) of all the possible ways of resource allocation. It was combination of Time Domain, Frequency Domain and the modulation scheme. Especially in frequency domain, you have so many resource blocks you can use (100 Resource Blocks in case of 20 Mhz Bandwidth) and if you think of all the possible permutation of these variables, the number of possible resource allocation will be very huge. Then you would have this question (At least I had this question).. How can the other party (the recieving side) can figure out exactly where in the slot and in which modulation scheme that the sender (transmitter) transmit the data(subframe)? I just captured the physical signal but how can I (the reciever) decode this signal. This is where the term called 'DCI(Downlink Control Indicator)' comes in.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
It is DCI which carries those detailed information like "which resource block carries your data ?" and "what kind of demodulation scheme you have to use to decode data ?" and some other additional information. It means you (the reciever) first have to decode DCI and based on the information you got from the DCI you can decode the real data. It means without DCI, decodingthe data delivered to you is impossible. Not only in LTE, but also in most of wireless communication the reciever requires special information structure like DCI. For example, in WCDMA R99, Slot format and TFCI carries those information and in HSDPA HS-SCCH carried those information and in HSUPA E-TFCI carries it. Comparing to control channel in other technology (WCDMA, HSPA), LTE DCI has a lot more additional information in it. In addition to resource allocation, it can carry Power Control Command, CSI Report Request or CQI Report Request etc. There are several different DCI format, each of which has different set of intormations it can carry. Then Question would be which DCI format we have to use for a specific situation. This question will be answered in later part in this page. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
In terms of protocol implementation with respect to carrying these information, R99 seems to be the most complicated one. You had to define all the possible combination of resource allocation in the form of TFCS (a kind of look-up table for TFCI) and you have to convey those information through L3 message (e.g, Radio Bearer Setup message and RRC Connection Setup message) and the transmitteralso have to configure itself according to the table. A lot of error meaning headache came from the mismatches between the TFCS information you configured in L3 message and the configuration the transmitter applied to itself (transmitter's lower layer configuration). It has been too much headache to me. HSDPA relieved the headache a lot since it carries these information directly on HS-SCCH and this job is done by MAC layer. The resource allocation information carried by HS-SCCH is called 'TFRI'. So I don't have to care much about L3 message.. but still I need to jump around the multiple different 3GPP document to define any meaningful TFRIs. And other complication was that even in HSDPA we still using R99 DPCH for power control and signaling purpose, so I cannot completely remove the headache of handling TFCS.Now in LTE, this information is carried by DCI as I explained above and we only have to care about just a couple of parameters like Number of RBs, the starting point of RBs and the modulation scheme and I don't have to care anything about configuring these things in RRC messages. This is a kind of blessing to me.
As one example showing how/when DCI is used, refer to "Uplink Data Transmission Scheduling - Persistent Scheduling"
DCI carries the following information : i) UL resource allocation (persistent and non-persistent) ii) Descriptions about DL data transmitted to the UE.
L1 signaling is done by DCI and Up to 8 DCIs can be configured in the PDCCH. These DCIs can have 6 formats : 1 format for UL scheduling, 2 formats for Non-MIMO DL scheduling, 1 format for MIMO DL Scheduling and 2 formats for UL power control.
DCI has various formats for the information sent to define resource allocations. The DCI formats defined in LTE are as follows.
L1 signaling is done by DCI and Up to 8 DCIs can be configured in the PDCCH. These DCIs can have 6 formats : 1 format for UL scheduling, 2 formats for Non-MIMO DL scheduling, 1 format for MIMO DL Scheduling and 2 formats for UL power control.
At early LTE (before Rel 10), the operation mode in DCI (Resource Allocation) was pretty simple and straightforward (at least in FDD) as in < Case 1 >. However, as the technology evolves we started setting different variations of DCI operation. Now we have special types of LTE specially designed for IoT/M2M application and DCI operation has been changed even further. In this section, I will try to visualize several typical types of DCI operations as examples just to give you some big picture on how DCI works for PDSCH and PUSCH scheduling.
What kind of information is carried by each DCI ?
The best way to understand this in very detail is to take one example of each of DCI bit string and decode manually based on 3GPP specification. But this section can be a good summary for quick reference. And the DCI decode examples at the end of this page would give you a good/detailed picture of DCI strutures.
Type 0 : A bitmap indicating the resource block groups(RBGs) that are allocated to the scheduled UE. (An RBG is a set of consecutive physical resource blocks(PRBs). This type has following informations
Type 1 : A bitmap indicating PRBs from a set of PRBs from a subset of resource block groups determined by the system bandwidth.
Type 2 : A set of contiguously allocated physical or virtual resource blocks. The allocations vary from a single PRB upto the maximum number of PRBs spanning the system bandwidth.
What determines a DCI Format for the specific situation ?
There are two major factors to determine a DCI format for a specific situation as follows : i) RNTI Type ii) Transmission Mode
This means that you cannot change only one of these parameters arbitrarily and you always have to think of the relationships among these when you change one of these parameters. Otherwise you will spend a long time for troubleshooting -:)
Those tables from 3GPP 36.213 shows the relationships between RNTI Type, Transmission Mode and DCI format. (You would notice that same information (same RNTI type) can have multiple candidates of DCI format. Then, the question is "How network determine which DCI format it has to use at a specific moment ?". In some case, you can find a clear criteria from following table, but some other case the selection criteria is not clear. For example, if you ask "Do I have to use DCI format 1A or 2A when I am using TM3, C-RNTI ?". You may say "Use DCI format 2A in MIMO configuration and use 1 A in non-MIMO configuration". But the answer would not be clear if you ask "What kind of DCI format (1A or 1C) for Paging message (P-RNTI) ?". At least table 7.1-2 does now show any different selection criteria and I haven't found anywhere else in the spec about this selection criteria. In this case, I just ask to several other people who is working on that specific area and trying to draw conclusion by a kind of 'vote'. For this specific case (DCI format for P-RNTI), I got the response saying "There is no clear criteria, it is just upto network on which one to pick".)
< 38.213-v14.6.0 Table 7.1-1: PDCCH and PDSCH configured by SI-RNTI >
< 38.213-v14.6.0 Table 7.1-2: PDCCH and PDSCH configured by P-RNTI >
< 38.213-v14.6.0 Table 7.1-3: PDCCH and PDSCH configured by RA-RNTI >
< 38.213-v14.6.0 Table 7.1-5: PDCCH and PDSCH configured by C-RNTI>
< 38.213-v14.6.0 Table 7.1-7: PDCCH and PDSCH configured by Temporary C-RNTI>
Any relations between DCI format and Layer 3 signaling message ?

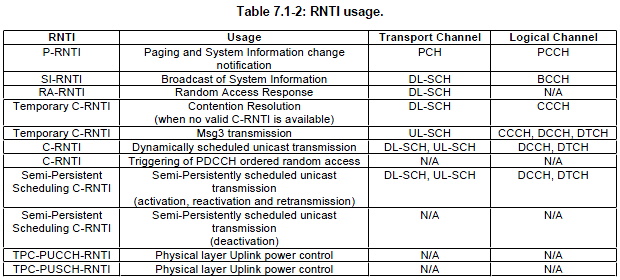

Yes, there is a relationship. You have to know which DCI format is required for which RRC message. Following tables from 3GPP 36.321 shows the relationship between RNTI and logical channel and you would know which RRC message is carried by which logical channel. So with two step induction, you will figure out the link between RRC message and it's corresponding DCI format.
For example, if you see the "Security Mode Command" message of section 6.2.2 of 36.331, it says
Signalling radio bearer: SRB1 RLC-SAP: AM Logical channel: DCCH Direction: UE to E-UTRAN
If you see the table, you would see this message is using C-RNTI. and you will figure out the possible candiates from table 7.1-5 of 36.213 and if you would have detailed information of the transmission mode, you can pinpoint out exactly which DCI format you have to use for this message for a specific case. Assuming TM mode in this case is TM1 and scheduling is dynamic scheduling, if you see Table 7.1-2 you will figure out that this is using C-RNTI. With this RNTI Type and TM mode, if you see table 7.1-5, this case use DCI Format 1 or DCI Format 1A.
Just for Convenience, I created a table that shows RNTI types and DCI Format that can be used for each RNTI. (You can figure this out by combining the descriptions of various tables in previous section.)
Full Details of Each DCI Contents
A lot of complications resides in the composition (structure) of each DCI Format. This is a huge topic and requires a lot of cross referencess among multiple specification. I would just start with DCI format 0 and I think it would take a couple of weeks to complete this section.
NOTE 1: The structure of each DCI format is defined in 36.212 5.3.3.1 DCI formats but many of the fields in a DCI are defined in many other specifications. I tried to consolidate all the different specifications in this single page, so that you can get all the informations here without opening multiple specifications.
NOTE 2: Most of these tables are based on Release 8 specification. Some of field name might have been changed in later specification.
NOTE 3 : DCI for LTE Advanced is not described here. I wrote a separate pages for DCI for LTE Advanced.
DCI Format 0 :--------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.1 Format 0.

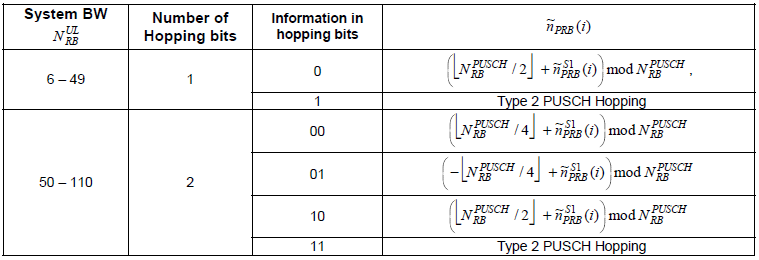

< 36.213 Table 8.4-1: Number of Hopping Bits NUL_hop vs. System Bandwidth >
< 36.213 Table 8.4-2: PDCCH DCI Format 0 Hopping Bit Definition >
< 36.213 8.1 Resource Allocation for PDCCH DCI Format 0 >
< 36.211 Table 5.5.2.1.1-1: Mapping of Cyclic Shift Field in DCI format 0 to DMRS(2)_n Values >

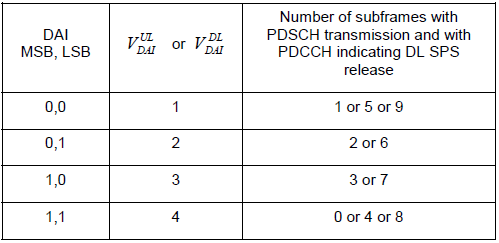

< 36.213 Table 7.3-X: Value of Downlink Assignment Index >
DCI Format 1 :--------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.2 Format 1.
< 36.212 - Table 5.3.3.1.2-2: Number of bits for Downlink Assignment Index. >
DCI Format 1A :-------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.3 Format 1A.
DCI Format 1B :-------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.3A Format 1B.

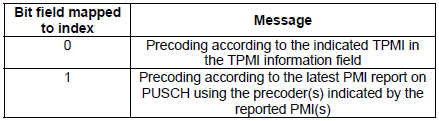

< 36.212 Table 5.3.3.1.3A-2: Content of PMI confirmation >
DCI Format 1C :-------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.4 Format 1C.
DCI Format 1D :-------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.4A Format 1D.
DCI Format 2 :-------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.5 Format 2.
DCI Format 2A :-------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.5A Format 2A.
< 36.212 Table 5.3.3.1.5A-2: Content of precoding information field for 4 antenna ports >
DCI Format 3 :-------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.6 Format 3.

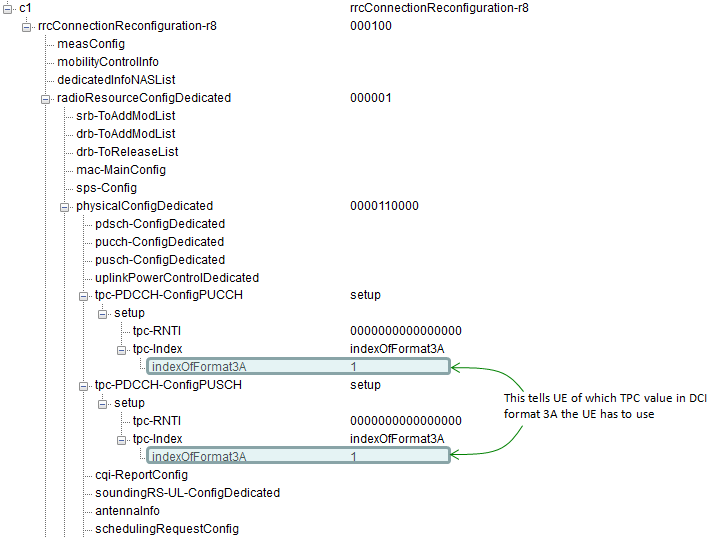

Which TPC value out of N values in DCI format 3 is used for a specific UE is specified by the RRC message as shown below.
DCI Format 3A :-------------------------------------------------------------------------------------
This is based on 3GPP 36.212 - 5.3.3.1.7 Format 3A.
Which TPC value out of N values in DCI format 3 is used for a specific UE is specified by the RRC message as shown below.
DCI Format for Rel 10 or later
For this, refer to DCI for LTE Advanced.
Example 1 > DCIFormat 0, value = 0x2584A800 (00100101100001001010100000000000 b)
You can figure out the Start of RB and N_RB (Number of allocated RB) from RIV value.

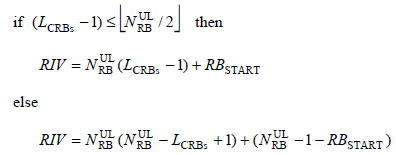

How can I calcuate Start_RB and N_RB from RIV. The simple calcuation is as
follows :
Following is the decoding result from DCI Decoder
Example 2 > DCIFormat 0, value = 0x48720800 (01001000011100100000100000000000 b )
This examples shows the case where PUSCH frequency hopping flag is on. Depending on the value for NUL-hop, the detailed hopping pattern is determined.
When the system band frequency is 1.4M, 3M, 5M, Type PUSCH hopping is decided by below method.
"NUL-hop" = 0 --- Type1 "NUL-hop" = 1 --- Type2
When the system band frequency is 10M, 15M, 20M, Type PUSCH hopping is decided by below method.
"NUL-hop" = 0 --- Type1 "NUL-hop" = 1 --- Type1 "NUL-hop" = 2 --- Type1 "NUL-hop" = 3 --- Type2
Following is the decoding result from DCI Decoder
Example 3 > DCIFormat 0, value = 0x07D7E800 (00000111110101111110100000000000 b)
This example shows you a case with UL HARQ retransmission. If you see the MCS value, it says 31 which is set as RVidx 3 in Table 8.6.1-1 of 36.213.
Following is the decoding result from DCI Decoder
Example 1 > DCIFormat 1A, value = 0x84B3C040 (10000100101100111100000001000000 b)
Following is the decoding result from DCI Decoder
Example 2 > DCIFormat 1A, value = 0xC4B3C140 (11000100101100111100000101000000 b)
Following is the decoding result from DCI Decoder
Example 1 > DCIFormat 2A, value = 0x080005C080 (0000100000000000000001011100000010000000 b)

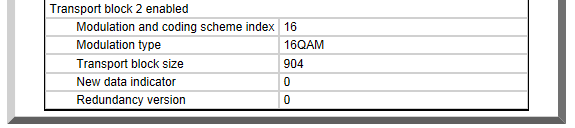

Following is the decoding result from DCI Decoder
You may see the structure of DCI looks too complicated. However, this would be taken as simple comparing to the procedure through which this DCI information has to go to get transmitted through Antenna. DCI that is described above is MAC layer concept and at least you can decode and understand the meaning of each bit field with relatively small effort. Since this is another huge topic and it is transport/physical layer issue, I described these issues in a couple of different pages as linked below.
The overall flow of channel coding to Resource Eelement mapping process for DCI is described in Physical Layer Channel : Downlink : PDCCH (Physical Download Control Channel)
The location of a PDCCH that carries a DCI (even though it is the exactly identical information) varies at every subframe. The location of the PDCCH is determined by CCE Index at transmitter (eNB). But this CCE index is not informed to the reciever (UE). UE has to figure out the location of PDCCH by blind decoding. This process is described in CCE Index Calculation/PDCCH Decoding/Blind Decoding.
When UE is trying blind decoding, how many different combinations of possible PDCCH allocation area (Search Space) ? This is described in PDCCH Candidate and Search Space
How many physical layer bits (how many Resource Elements) a PDCCH occupy when it is being transmitted ? This is explained in PDCCH Resource Allocation.
If you are not faimilar with the PDCCH allocation unit called CCE and how the REG gets distributed over control channel region. Refer to Resource Allocation and Management Unit
If you want to look in further details at the matlab code level, refer to Matlab :ToolBox : LTE : Downlink : PDCCH. This is not a full detail since it is based on Matlab Toolbox and the implementations of the toolbox function is not open to user, but you would get pretty good understandings of overall transport/physical channel process for DCI.
|
