Adaptive Filter

An adaptive filter is a type of digital filter that has the unique ability to automatically adjust its characteristics based on the input signal and a desired output. Unlike fixed filters, which have predefined settings, adaptive filters can modify their parameters in real-time to adapt to changes in the environment or signal.

Adaptive filters are essential in systems where the signal environment is unpredictable or constantly changing. Their ability to "adapt" makes them incredibly versatile and effective for real-world applications, where fixed filters may fail to perform optimally. This makes them a cornerstone of modern signal processing.

Key Features:

Adaptive filters are distinguished by their ability to adapt and optimize their performance in real-time, making them highly versatile for dynamic environments.

Self-Learning: Adaptive filters "learn" by continuously updating their parameters to minimize the difference (error) between their output and a known desired signal. The filter continuously update their parameters to minimize the error between their output and a predefined desired signal. This allows them to improve their accuracy over time without requiring manual intervention
Dynamic Adjustment: They adjust their behavior in response to the incoming signal's changes, such as noise or distortion, ensuring optimal performance. The filter responds effectively to changes in the input signal, such as varying levels of noise or distortion. These features ensure that adaptive filters maintain optimal performance even in unpredictable or rapidly changing conditions.

How It Works:

An adaptive filter works by continuously adjusting its parameters to achieve the best possible match between its output and a desired signal. It begins by taking an input signal, which typically contains both useful information and unwanted noise or distortion. Alongside this, a desired signal is provided, which serves as a reference for what the filter aims to achieve. The filter processes the input signal and generates an output, which is then compared to the desired signal. The difference between the output and the desired signal is calculated as the error signal. This error signal is a critical component because it indicates how far the filter's output is from the desired outcome.

To minimize this error, the filter employs an adaptive algorithm, such as the Least Mean Squares (LMS) or Recursive Least Squares (RLS). These algorithms adjust the filter's internal parameters in real-time, refining the way the filter processes the input signal. Through repeated iterations, the filter learns to reduce the error and improve its output. This continuous process enables the adaptive filter to dynamically respond to changes in the input signal or its environment, making it highly effective for applications in unpredictable or noisy conditions.

Following is a short summary of the mechanism

Input Signal: The filter receives an input signal, which often contains the useful information as well as noise or distortion.
Desired Signal: A reference signal is provided, which represents the ideal or expected output.
Error Signal: The filter calculates the difference between its output and the desired signal. This difference, called the error signal, is used to refine the filter's settings.
Adaptive Algorithm: Algorithms like Least Mean Squares (LMS) or Recursive Least Squares (RLS) guide the adjustment process, ensuring the filter improves its performance over time.

Following is an illustrative example of how it works.

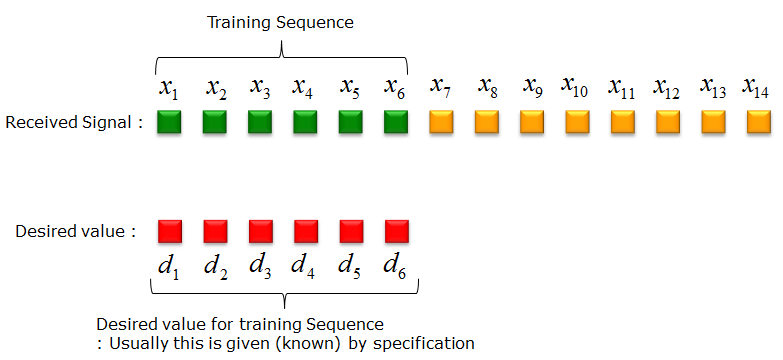

Following diagram (1st step) illustrates the concept of a training sequence used in adaptive filtering. The top part represents the received signal, denoted as x₁, x₂, ..., x₁₄, which consists of a combination of useful data and possible noise or distortion. A specific subset of this signal, x₁ to x₆, is labeled as the training sequence and is highlighted in green. This training sequence is used as input for the adaptive filter to adjust its parameters.

The bottom part shows the corresponding desired values, d₁, d₂, ..., d₆, which are predefined and represent the ideal or target outputs for the training sequence. These desired values are typically provided by system specifications and are used to guide the adaptive algorithm in reducing the error between the filter's output and these target values. The comparison between the received signal's training sequence and the desired values is essential for the filter's learning and adjustment process.

Next figure illustrates the process of adaptive filtering.

Training Step

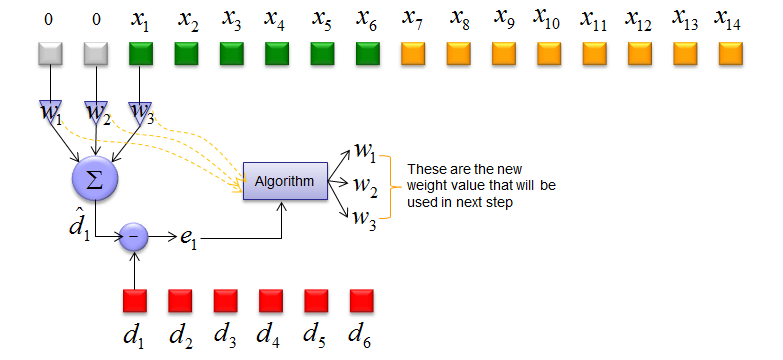

The input signal, represented as x₁, x₂, ..., x₁₄, is passed through the system. A subset of the input signal, x₁ to x₆, serves as the training sequence, with its corresponding weights, w₁, w₂, w₃, being applied. These weights determine how the input values are combined in the summation block (Σ) to generate the filter's output, denoted as d_{1 hat}.

The output d_1 hat is compared with the corresponding desired value d₁, and the difference between them is calculated as the error signal, e₁. This error signal is fed into an algorithm that adjusts the weights w₁, w₂, w₃ to minimize the error in the next iteration.

The adjusted weights are then used in subsequent steps to process the rest of the input signal. This iterative process enables the system to adaptively refine the weights and improve the filter's performance, aligning its output with the desired values d₁, d₂, ..., d₆.

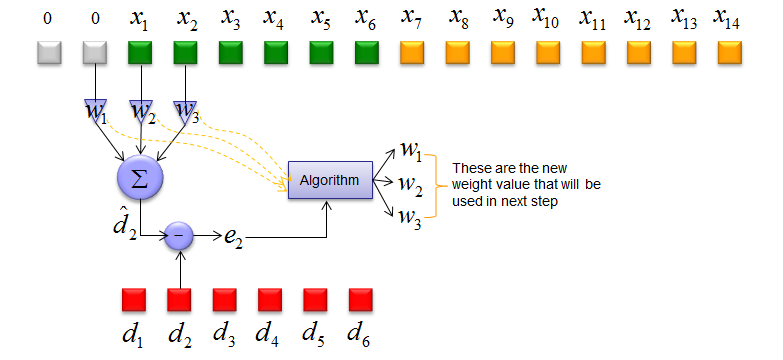

Next step shows the second iteration of the adaptive filtering process. In this step, the next input value, x₂, along with 0 (padding bit) and x₁, is processed using the updated weights w₁, w₂, w₃ from the previous iteration. These weights are applied to the summation block (Σ) to compute the new filter output, denoted as d_{2 hat}.

The output d_2 hat is then compared to the corresponding desired value d₂, and the difference is calculated as the new error signal, e₂. This error signal is again sent to the algorithm, which further refines the weights w₁, w₂, w₃ to reduce the error in the next iteration.

This iterative process ensures that the filter continuously adjusts and improves its performance as it processes the training sequence x₁, x₂, ..., x₆, aligning the outputs d_n hat with the corresponding desired values d₁, d₂, ..., d₆.

Next step represents the third iteration of the adaptive filtering process. At this stage, the filter processes the next input value, x₃, along with x₁ and x₂, using the updated weights w₁, w₂, w₃ from the previous iteration. These weights are applied to the summation block (Σ) to compute the new filter output, denoted as d_{3 hat}.

The output d_{3 hat}. is compared to the corresponding desired value d₃, and the difference between them is calculated as the error signal, e₃. This error signal is sent to the algorithm, which adjusts the weights w₁, w₂, w₃ further to minimize the error in the subsequent iterations.

This iterative process continues, enabling the filter to refine its parameters as it progresses through the training sequence x₁, x₂, ..., x₆. The goal is to ensure that the filter output d_n hat aligns closely with the desired values d₁, d₂, ..., d₆, improving accuracy with each step.

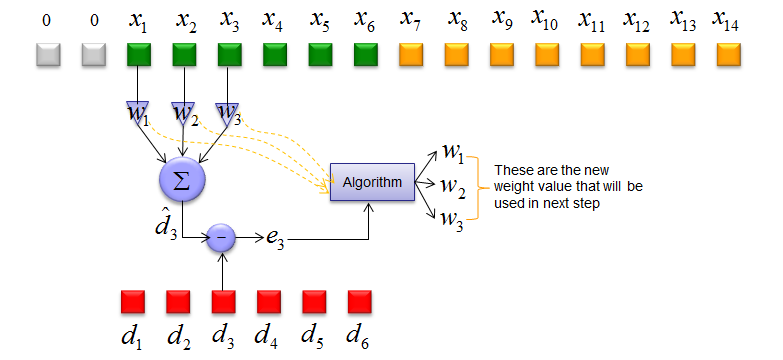

Next step represents the 4th iteration of the adaptive filtering process. At this stage, the filter processes the next input value, x₄, along with x₂ and x₃, using the updated weights w₁, w₂, w₃ from the previous iteration. These weights are applied to the summation block (Σ) to compute the new filter output, denoted as d_{4 hat}.

The output d_{4 hat}. is compared to the corresponding desired value d₃, and the difference between them is calculated as the error signal, e₄. This error signal is sent to the algorithm, which adjusts the weights w₁, w₂, w₃ further to minimize the error in the subsequent iterations.

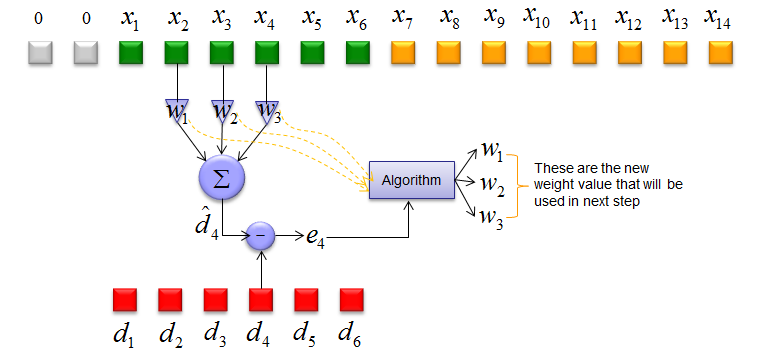

Next step represents the 5th iteration of the adaptive filtering process. At this stage, the filter processes the next input value, x₅, along with x₃ and x₄, using the updated weights w₁, w₂, w₃ from the previous iteration. These weights are applied to the summation block (Σ) to compute the new filter output, denoted as d_{5 hat}.

The output d_{5 hat}. is compared to the corresponding desired value d₃, and the difference between them is calculated as the error signal, e₅. This error signal is sent to the algorithm, which adjusts the weights w₁, w₂, w₃ further to minimize the error in the subsequent iterations.

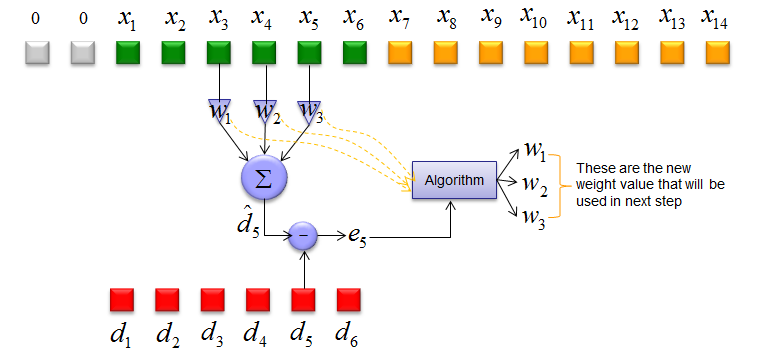

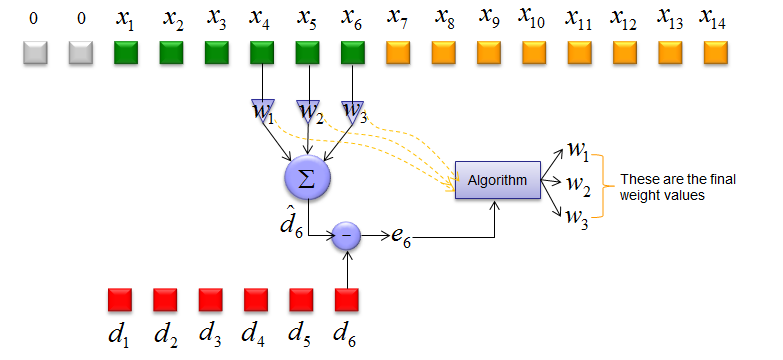

Next step represents the 6th iteration of the adaptive filtering process. At this stage, the filter processes the next input value, x₆, along with x₄ and x₅, using the updated weights w₁, w₂, w₃ from the previous iteration. These weights are applied to the summation block (Σ) to compute the new filter output, denoted as d_{6 hat}.

The output d_{6 hat}. is compared to the corresponding desired value d₆, and the difference between them is calculated as the error signal, e₆. This error signal is sent to the algorithm, which adjusts the weights w₁, w₂, w₃ further to minimize the error in the subsequent iterations.

Filtering Step

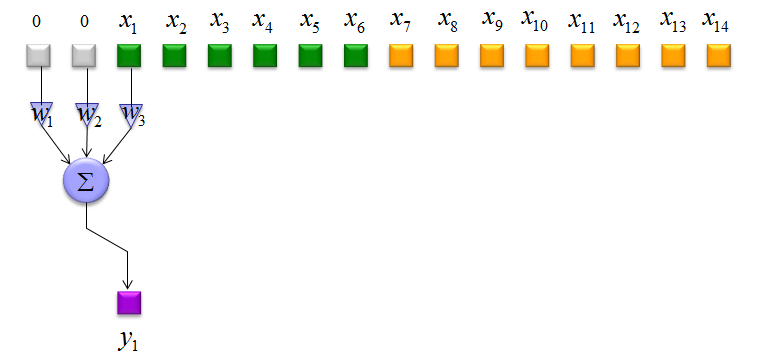

These procedure demonstrates the application phase of the adaptive filtering process after the training has been completed.

The filter now uses the optimized weights w₁, w₂, w₃, which were adjusted during the training iterations. These weights are applied to the new input signal, represented by the first leading pad(0, 0) and x₁, to compute the output y₁.

Unlike the training phase, this stage does not involve a desired value or error signal. Instead, the filter processes the input using the learned weights to generate the output directly. This output, y₁, represents the result of applying the filter to the input signal and reflects the filter's ability to extract meaningful information or remove unwanted noise based on the training it received.

This figure highlights the transition from the learning phase to the operational phase, where the adaptive filter is used to process incoming data using the optimized parameters.

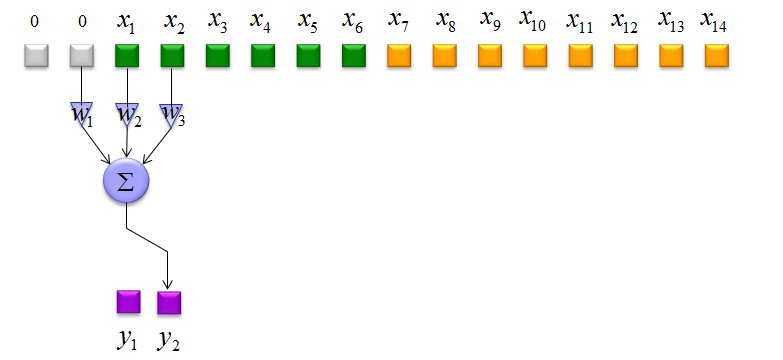

Nest step represents the continuation of the application phase of the adaptive filtering process. After processing the first set of inputs (0, 0, x₁) to produce the output y₁, the filter now processes the next set of inputs (0, x₁, x₂) using the same optimized weights w₁, w₂, w₃ to generate the output y₂.

The summation block (Σ) combines the weighted inputs to produce the outputs sequentially, maintaining the same structure and weights derived during the training phase. This process demonstrates how the adaptive filter operates continuously over a stream of data, producing successive outputs (y₁, y₂, ...) as it moves through the input sequence.

The iterative application of the filter highlights its utility in real-time processing scenarios, where the learned weights are consistently applied to new input data to achieve the desired filtering effects.

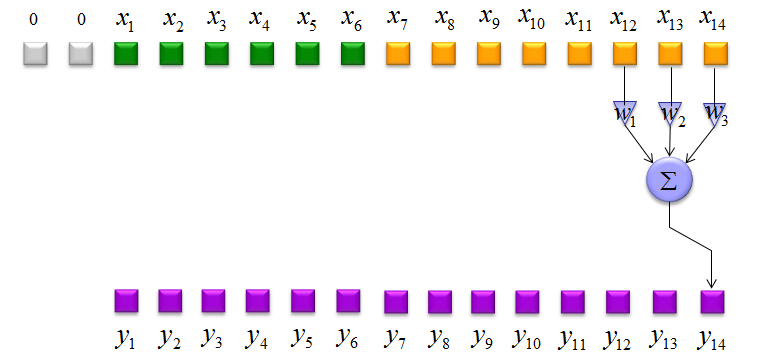

Following figure illustrates the complete application phase of the adaptive filtering process. The input signal, represented as x₁, x₂, ..., x₁₄, is processed sequentially by the filter using the optimized weights w₁, w₂, w₃, which were learned during the training phase. Each set of three consecutive input values, such as 0, 0, x₃ for y₁, or x₁₂, x₁₃, x₁₄ for y₁₄, is processed to produce the corresponding output values y₁, y₂, ..., y₁₄.

The summation block (Σ) combines the weighted input values for each step, generating a sequence of outputs. This process demonstrates how the adaptive filter applies its learned parameters to a complete stream of input data, producing a continuous series of outputs that reflect the filtering operation.

The figure highlights the consistency of the filter's behavior, as the same set of weights is applied throughout the entire input sequence, enabling efficient and accurate processing of the data.

Common Applications

Adaptive filters play a crucial role in a wide range of real-world applications, where they dynamically adjust their parameters to process signals and reduce unwanted noise or distortion. Followings are some of the common application of Adaptive filters

Noise Cancellation:

Adaptive filters are widely used in noise-canceling headphones, where they reduce unwanted background noise while preserving the desired sound. The desired clean signal (e.g., music or voice) is not explicitly provided but inferred by using a reference noise signal captured by an external microphone. The filter learns to subtract this noise from the mixed signal, assuming the noise is uncorrelated with the desired sound. This enables real-time noise suppression.

Channel Equalization:

In communication systems, adaptive filters correct signal distortions caused by the transmission medium, ensuring data integrity. The desired signal is defined using predefined pilot symbols, which are transmitted along with the data and are known at both ends of the communication system. The adaptive filter uses these pilots to learn the channel distortions and adjusts its parameters to equalize the signal, allowing the subsequent data to be received cleanly.

Echo Cancellation:

In telecommunication systems, adaptive filters eliminate echoes during voice calls, improving call clarity. The desired signal is the original speaker�s voice, free from echoes caused by the feedback of the transmitted signal. The transmitted signal is used as a reference for the filter to model and subtract the echo from the received signal, leaving only the clean, echo-free voice.

Speech and Audio Processing:

Adaptive filters enhance speech signals in noisy environments, often used in hearing aids or voice recognition systems. The desired signal (clean speech) is typically approximated during training using clean speech samples recorded in controlled environments. In real-time, the filter relies on statistical differences between noise and speech, or models of noise, to adaptively separate the desired speech from the unwanted noise.

Biomedical Signal Processing:

In biomedical applications, adaptive filters help analyze and clean physiological signals like ECGs by removing noise without affecting the critical information. The desired clean signal is often estimated based on the known characteristics of the physiological signal (e.g., periodic heartbeats). In some cases, clean signals are recorded under noise-free conditions for training, or reference noise signals (e.g., power-line interference) are used to filter out the noise while preserving the meaningful signal.
