Statics and Friction : Introduction



This section is mostly review as all of you taking Solid Mechanics I have experience with static equilibrium analysis in your first year Mechanics course. Majority of problems in Solid Mechanics I involve 2D rigid body equilibrium analysis, with the addition of stress and strain concept



You will be working with pin, fixed, and roller supports





Types of Deformation



Tension – Object is being stretched, length of the object increases



Compression – Object is being pressed in, length of the object decreases



Torsion – Object is being twisted by applied moment, rarely involved in problem solving questions

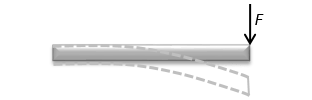

Bending – Object forms a “parabolic” shape due to the applied force at the far end of the support
