IMS/SIP Quick Reference                                                Home : www.sharetechnote.com







Transport Selection and Port Number Determination



Recently I have been experiencing some of the issues while testing IMS which is related to Transport Selection (TCP/UDP selection) or Port Number setting.

I haven't got clear understandings of all the details behind these issues that can be stated in this page, but I thought it would be good time to start posting something. This page will be updated frequently and revised/corrected as well as I find more.





Determination of TCP/UDP

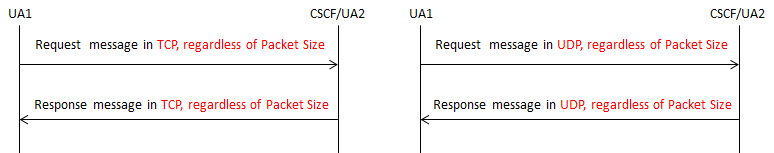

< Case 1 >  ------------------------------------------------------------------------------------------------





Example 01 :

    You would notice

    • (A) matches (1)

    (A) Transmission Control Protocol, (B) Src Port: 50000 , (C) Dst Port: 55062 ,

      REGISTER sip:one.att.net SIP/2.0

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:(D)50001;

               branch=z9hG4bK44ccabd6a7f33104360e9ae78ce1ac0d;rport

        Max-Forwards: 70

        Contact: <sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(E)50001;(F) transport=tcp>;

                    +g.3gpp.smsip;

                    +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

                    +sip.instance="<urn:gsma:imei:00440224-264925-0>"

        To: <sip:310410123456789@one.att.net>

        From: <sip:310410123456789@one.att.net>;tag=4887461765a4b2fc-d90ef734.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 2 REGISTER

        Expires: 600000

        Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO

        User-Agent: IM-client/OMA1.0 TEST-IMS

        Authorization: Digest username="310410123456789@private.att.net", realm="one.att.net",

          nonce="1XcMbTY+MMNkpAePG/jtOm4yOzbFNdVV1XYObjNi45E=", uri="sip:one.att.net", response="7a87c22410c409ffef55ea37b41bfe4c",

          algorithm=AKAv1-MD5,

          cnonce="b4972c8ee817300a7ff36ed1cbd59be", opaque="09e88aef2....", qop=auth, nc=00000001

        Security-Verify: ipsec-3gpp; ealg=null; alg=hmac-sha-1-96; spi-c=98765431; spi-s=87654321;

          (G)port-c=55063;

          (H)port-s=55062;

          q=0.9,ipsec-3gpp; ealg=null; alg=hmac-md5-96; spi-c=98765431; spi-s=87654321;

          (I)port-c=55063;

          (J)port-s=55062;

          q=0.7

        P-Access-Network-Info: 3GPP-E-UTRAN-FDD; utran-cell-id-3gpp=31041000040000004

        Supported: sec-agree, path

        Proxy-Require: sec-agree

        Security-Client: ipsec-3gpp; ealg=aes-cbc;

          alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966;

          (K)port-c=50000;

          (L)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=aes-cbc; alg=hmac-md5-96; spi-c=41064354; spi-s=34933966;

          (M)port-c=50000;

          (N)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=des-ede3-cbc;

          alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966;

          (O)port-c=50000;

          (P)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=des-ede3-cbc; alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966;

          (Q)port-c=50000;

          (R)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=null; alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966;

          (S)port-c=50000;

          (T)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=null; alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966;

          (U)port-c=50000;

          (V)port-s=50001;

          prot=esp; mod=trans

        Require: sec-agree

        Content-Length: 0



    (1)Transmission Control Protocol, (2)Src Port: 55062, (3)Dst Port: 50000, Seq: 1, Ack: 2279, Len: 655

      SIP/2.0 200 OK

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:(4)50001;

              branch=z9hG4bK44ccabd6a7f33104360e9ae78ce1ac0d;rport

        To: <sip:310410123456789@one.att.net>; tag=ATL2604_d9bc654771cd

        From: <sip:310410123456789@one.att.net>;tag=4887461765a4b2fc-d90ef734.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 2 REGISTER

        Contact: <sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(5)50001;(6)transport=tcp>; expires=1200

        P-Associated-URI: <tel:+14251234567>

        P-Associated-URI: <sip:+14251234567@one.att.net>

        Service-Route: <sip:scscf.anyims.test.3gpp.com;lr>

        Path: <sip:[fd29:cc43:7fb9:2:20c:29ff:fe66:b4c7];lr>

        Content-Length: 0

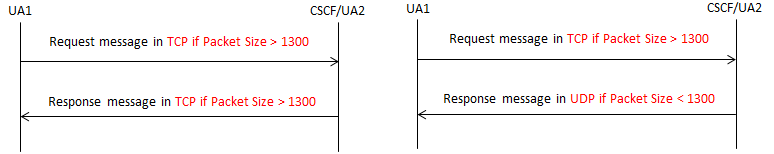

< Case 2 >  ------------------------------------------------------------------------------------------------

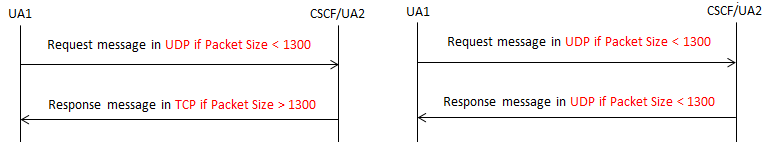

< Case 3 > ------------------------------------------------------------------------------------------------

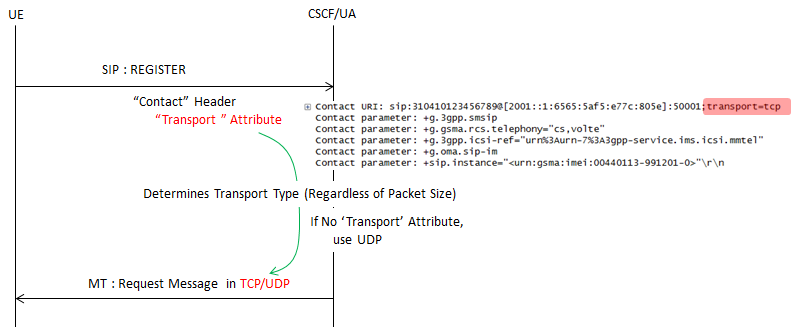

< Case 4 > ------------------------------------------------------------------------------------------------





Example 01 :

    You would notice

    • (E) matches (1)

    Transmission Control Protocol, (A) Src Port: 50000 , (B) Dst Port: 55062 , Seq: 2264924161, Ack: 354, Len: 312

      REGISTER sip:one.att.net SIP/2.0

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:(C)50001;

               branch=z9hG4bK44ccabd6a7f33104360e9ae78ce1ac0d;rport

        Max-Forwards: 70

        Contact: <sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(D)50001;(E) transport=tcp>;

                    +g.3gpp.smsip;

                    +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

                    +sip.instance="<urn:gsma:imei:00440224-264925-0>"

        To: <sip:310410123456789@one.att.net>

        From: <sip:310410123456789@one.att.net>;tag=4887461765a4b2fc-d90ef734.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 2 REGISTER

        Expires: 600000

        Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO

        User-Agent: IM-client/OMA1.0 TEST-IMS

        Authorization: Digest username="310410123456789@private.att.net", realm="one.att.net",

          nonce="1XcMbTY+MMNkpAePG/jtOm4yOzbFNdVV1XYObjNi45E=", uri="sip:one.att.net", response="7a87c22410c409ffef55ea37b41bfe4c",

          algorithm=AKAv1-MD5,

          cnonce="b4972c8ee817300a7ff36ed1cbd59be", opaque="09e88aef2....", qop=auth, nc=00000001

        Security-Verify: ipsec-3gpp; ealg=null; alg=hmac-sha-1-96; spi-c=98765431; spi-s=87654321;

          (F)port-c=55063;

          (G)port-s=55062;

          q=0.9,ipsec-3gpp; ealg=null; alg=hmac-md5-96; spi-c=98765431; spi-s=87654321;

          (H)port-c=55063;

          (I)port-s=55062;

          q=0.7

        P-Access-Network-Info: 3GPP-E-UTRAN-FDD; utran-cell-id-3gpp=31041000040000004

        Supported: sec-agree, path

        Proxy-Require: sec-agree

        Security-Client: ipsec-3gpp; ealg=aes-cbc;

          alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966;

          (J)port-c=50000;

          (K)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=aes-cbc; alg=hmac-md5-96; spi-c=41064354; spi-s=34933966;

          (L)port-c=50000;

          (M)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=des-ede3-cbc;

          alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966;

          (N)port-c=50000;

          (O)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=des-ede3-cbc; alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966;

          (P)port-c=50000;

          (Q)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=null; alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966;

          (R)port-c=50000;

          (S)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=null; alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966;

          (T)port-c=50000;

          (U)port-s=50001;

          prot=esp; mod=trans

        Require: sec-agree

        Content-Length: 0



    (1)Transmission Control Protocol, (2) Src Port: 55063, (3) Dst Port: 50001, Seq: 1302, Ack: 1, Len: 341

      INVITE sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(4)50001;(5)transport=tcp SIP/2.0

        Via: SIP/2.0/TCP [fd29:cc43:7fb9:2:20c:29ff:fe66:b4c7]:(6)55062; branch=z9hG4bK62b4a2938807

        Via: SIP/2.0/TCP scscf.anyims.test.3gpp.com; branch=z9hG4bK74eddae782b9

        Max-Forwards: 69

        To: <tel:+14251234567>

        From: <sip:+18472733800@one.att.net;user=phone>; tag=ATL2604_06f4d629ece8

        Call-ID: 551fe04688e4

        CSeq: 1 INVITE

        Via: SIP/2.0/TCP caller.3gpp.org:6543;branch=z9hG4bK87ee715641bd

        Record-Route: <sip:scscf.anyims.test.3gpp.com;lr>

        Record-Route: <sip:[fd29:cc43:7fb9:2:20c:29ff:fe66:b4c7]:(7)55062;lr>

        Supported: 100rel,precondition

        Allow: INVITE,ACK,CANCEL,BYE,UPDATE,PRACK,MESSAGE,REFER,NOTIFY

        P-Asserted-Identity: <sip:+18472733800@one.att.net;user=phone>

        P-Called-Party-ID: <tel:+14251234567>

        Contact: <sip:+18472733800@[3000:0:0:2::1]:(8)5160>;

          +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";video

        P-Asserted-Service: urn:urn-7:3gpp-service.ims.icsi.mmtel

        Accept-Contact: *;+g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";video

        Accept: application/sdp, application/3gpp-ims+xml

        Content-Length: 486

        Content-Type: application/sdp





Port Number

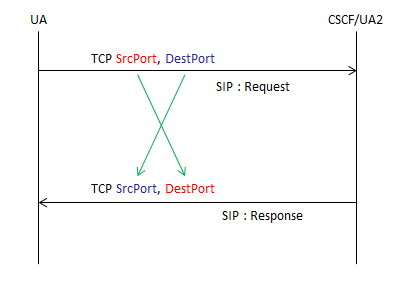

< Case 1 > ------------------------------------------------------------------------------------------------







Example 01 :

    You would notice

    • (B) matches (3)
    • (C) matches (2)

    (A) Transmission Control Protocol, (B) Src Port: 50000 , (C) Dst Port: 55062 ,

      REGISTER sip:one.att.net SIP/2.0

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:(D)50001;

               branch=z9hG4bK44ccabd6a7f33104360e9ae78ce1ac0d;rport

        Max-Forwards: 70

        Contact: <sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(E)50001;(F) transport=tcp>;

                    +g.3gpp.smsip;

                    +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

                    +sip.instance="<urn:gsma:imei:00440224-264925-0>"

        To: <sip:310410123456789@one.att.net>

        From: <sip:310410123456789@one.att.net>;tag=4887461765a4b2fc-d90ef734.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 2 REGISTER

        Expires: 600000

        Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO

        User-Agent: IM-client/OMA1.0 TEST-IMS

        Authorization: Digest username="310410123456789@private.att.net", realm="one.att.net",

          nonce="1XcMbTY+MMNkpAePG/jtOm4yOzbFNdVV1XYObjNi45E=", uri="sip:one.att.net", response="7a87c22410c409ffef55ea37b41bfe4c",

          algorithm=AKAv1-MD5,

          cnonce="b4972c8ee817300a7ff36ed1cbd59be", opaque="09e88aef2....", qop=auth, nc=00000001

        Security-Verify: ipsec-3gpp; ealg=null; alg=hmac-sha-1-96; spi-c=98765431; spi-s=87654321;

          (G)port-c=55063;

          (H)port-s=55062;

          q=0.9,ipsec-3gpp; ealg=null; alg=hmac-md5-96; spi-c=98765431; spi-s=87654321;

          (I)port-c=55063;

          (J)port-s=55062;

          q=0.7

        P-Access-Network-Info: 3GPP-E-UTRAN-FDD; utran-cell-id-3gpp=31041000040000004

        Supported: sec-agree, path

        Proxy-Require: sec-agree

        Security-Client: ipsec-3gpp; ealg=aes-cbc;

          alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966;

          (K)port-c=50000;

          (L)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=aes-cbc; alg=hmac-md5-96; spi-c=41064354; spi-s=34933966;

          (M)port-c=50000;

          (N)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=des-ede3-cbc;

          alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966;

          (O)port-c=50000;

          (P)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=des-ede3-cbc; alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966;

          (Q)port-c=50000;

          (R)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=null; alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966;

          (S)port-c=50000;

          (T)port-s=50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=null; alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966;

          (U)port-c=50000;

          (V)port-s=50001;

          prot=esp; mod=trans

        Require: sec-agree

        Content-Length: 0



    (1)Transmission Control Protocol, (2)Src Port: 55062, (3)Dst Port: 50000, Seq: 1, Ack: 2279, Len: 655

      SIP/2.0 200 OK

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:(4)50001;

              branch=z9hG4bK44ccabd6a7f33104360e9ae78ce1ac0d;rport

        To: <sip:310410123456789@one.att.net>; tag=ATL2604_d9bc654771cd

        From: <sip:310410123456789@one.att.net>;tag=4887461765a4b2fc-d90ef734.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 2 REGISTER

        Contact: <sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(5)50001;(6)transport=tcp>; expires=1200

        P-Associated-URI: <tel:+14251234567>

        P-Associated-URI: <sip:+14251234567@one.att.net>

        Service-Route: <sip:scscf.anyims.test.3gpp.com;lr>

        Path: <sip:[fd29:cc43:7fb9:2:20c:29ff:fe66:b4c7];lr>

        Content-Length: 0

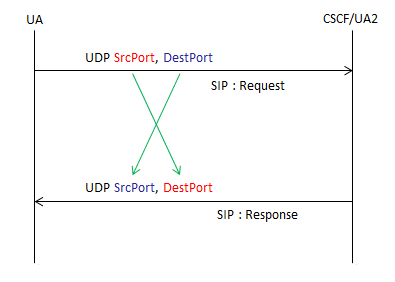

< Case 2> ------------------------------------------------------------------------------------------------







< Case 3> ------------------------------------------------------------------------------------------------

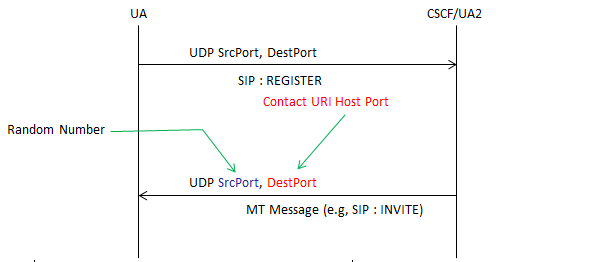

Example 01 :

    You would notice followings :

    • (E) matches (3)
    • (2) is the random number allocated by CSCF

    (A)User Datagram Protocol, (B)Src Port: sip (5060), (C)Dst Port: sip (5060)

      REGISTER sip:test.3gpp.com SIP/2.0

        f: <sip:33333@test.3gpp.com>;tag=3034500338

        t: <sip:33333@test.3gpp.com>

        CSeq: 886930220 REGISTER

        i: 3034413867_2326928952@192.168.1.31

        v: SIP/2.0/UDP 192.168.1.31:5060;branch=z9hG4bK37595987

          Transport: TCP

          Sent-by Address: 192.168.1.31

          Sent-by port: (D)5060

          Max-Forwards: 70

        m: <sip:33333@192.168.1.31:5060>;

                +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

                +g.3gpp.smsip;video;+sip.instance="<urn:gsma:imei:35160200-126799-0>"

          Contact URI User Part: 33333

          Contact URI Host Part: 192.168.1.31

          Contact URI Host Port: (E)5060

        Route: <sip:192.168.1.2:5060;lr>

          Route URI Host Part: 192.168.1.2

          Route URI Host Port: (F)5060

          Route URI parameter: lr

        P-Access-Network-Info: 3GPP-E-UTRAN-FDD; utran-cell-id-3gpp=0010100010000000

        Expires: 0

        l: 0

        Authorization: Digest uri="sip:test.3gpp.com",

          username="33333@test.3gpp.com",

          response="",realm="test.3gpp.com",

          nonce=""

        k: path

        Allow: INVITE,BYE,CANCEL,ACK,NOTIFY,UPDATE,REFER,PRACK,INFO,MESSAGE,OPTIONS



    (1)User Datagram Protocol, (2)Src Port: 51191 (51191), (3)Dst Port: sip (5060)

      INVITE sip:33333@192.168.1.31:(4)5060 SIP/2.0

        Via: SIP/2.0/UDP 192.168.1.2:(5)51191;branch=....;rport;transport=udp

        Via: SIP/2.0/UDP 192.168.1.2:(6)51182;branch=....;rport=51186

        Max-Forwards: 69

        Call-ID: 8bf2ef02e9db49d6b1d4e5b2091e64a9

        CSeq: 58001 INVITE

        To: <sip:33333@test.3gpp.com>

        From: <sip:1111@test.3gpp.com>;tag=1111111111

        Allow: INVITE, PRACK, UPDATE, ACK, BYE, CANCEL

        Supported: 100rel

        Supported: precondition

        Accept-Contact: *;+g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";require;explicit

        User-Agent: Anritsu-VirtualUA/3923

        Content-Type: application/sdp

        Content-Length: 571

        Contact: <sip:1111@192.168.1.2:51182;transport=udp>

          Contact URI User Part: 1111

          Contact URI Host Part: 192.168.1.2

          Contact URI Host Port: (7)51182

          Contact URI parameter: transport=udp

        Privacy: none

        P-Asserted-Identity: <sip:1111@test.3gpp.com>

        Record-Route: <sip:192.168.1.2;lr>

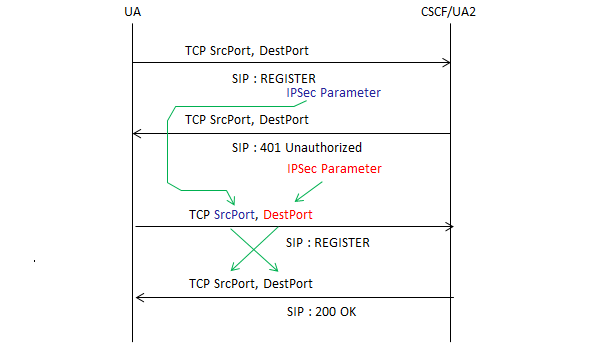

< Case 4> ------------------------------------------------------------------------------------------------





Example 01 :

    Transmission Control Protocol, (A)Src Port: 64404 (64404), (B)Dst Port: sip (5060), ...

      REGISTER sip:one.att.net SIP/2.0

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:(C)5060;

          branch=z9hG4bKa904bdafbf4b82175d9ac6732fdd2fd6;rport

        Max-Forwards: 70

        Contact: <sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(D)5060>;

          +g.3gpp.smsip;

          +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

          +sip.instance="<urn:gsma:imei:00440224-264925-0>"

        To: <sip:310410123456789@one.att.net>

        From: <sip:310410123456789@one.att.net>;tag=c5e5b838a178fe94-5185fd10.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 1 REGISTER

        Expires: 600000

        Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO

        User-Agent: IM-client/OMA1.0 TEST-IMS

        Authorization:

          Digest username="310410123456789@private.att.net",

          realm="one.att.net", nonce="",

          uri="sip:one.att.net",

          response=""

        Supported: sec-agree, path

        Proxy-Require: sec-agree

        Security-Client: ipsec-3gpp; ealg=aes-cbc; alg=hmac-sha-1-96;

          spi-c=41064354; spi-s=34933966; port-c=(E)50000; port-s=(F)50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=aes-cbc;

          alg=hmac-md5-96; spi-c=41064354; spi-s=34933966; port-c=(G)50000; port-s=(H)50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=des-ede3-cbc; alg=hmac-sha-1-96;

          spi-c=41064354; spi-s=34933966; port-c=(I)50000; port-s=(J)50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=des-ede3-cbc;

          alg=hmac-md5-96; spi-c=41064354; spi-s=34933966; port-c=(K)50000; port-s=(L)50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=null;

          alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966; port-c=(M)50000; port-s=(O)50001;

          prot=esp; mod=trans, ipsec-3gpp; ealg=null;

          alg=hmac-md5-96; spi-c=41064354; spi-s=34933966; port-c=(P)50000; port-s=(Q)50001;

          prot=esp; mod=trans

        Require: sec-agree

        Content-Length: 0



    Transmission Control Protocol, (1)Src Port: sip (5060), (2)Dst Port: 64404 (64404), Seq: 1, Ack: 1683,

      SIP/2.0 401 Unauthorized

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:5060;branch=z9hG4bKa904bdafbf4b82175d9ac6732fdd2fd6;rport

        To: <sip:310410123456789@one.att.net>; tag=ATL2604_10c4d620f0c1

        From: <sip:310410123456789@one.att.net>;tag=c5e5b838a178fe94-5185fd10.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 1 REGISTER

        WWW-Authenticate:

          Digest realm="one.att.net",

          algorithm=AKAv1-MD5, q

          op="auth",

          nonce="1XcMbTY+MMNkpAePG/jtOm4yOzbFNdVV1XYObjNi45E=",

          opaque="09....."

        Security-Server:

          ipsec-3gpp; ealg=null;

          alg=hmac-sha-1-96;

          spi-c=98765431; spi-s=87654321; port-c=(3)55063; port-s=(4)55062;

          q=0.9

        Security-Server:

          ipsec-3gpp; ealg=null;

          alg=hmac-md5-96;

          spi-c=98765431; spi-s=87654321; port-c=(5)55063; port-s=(6)55062;

          q=0.7

        Content-Length: 0



    Transmission Control Protocol, (a)Src Port: 50000, (b)Dst Port: 55062, Seq: 1294, Ack: 1,

      REGISTER sip:one.att.net SIP/2.0

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:(c)50001;branch=z9h....;rport

        Max-Forwards: 70

        Contact: <sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(d)50001;(e)transport=tcp>;

          +g.3gpp.smsip;

          +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

          +sip.instance="<urn:gsma:imei:00440224-264925-0>"

        To: <sip:310410123456789@one.att.net>

        From: <sip:310410123456789@one.att.net>;tag=4887461765a4b2fc-d90ef734.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 2 REGISTER

        Expires: 600000

        Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO

        User-Agent: IM-client/OMA1.0 TEST-IMS

        Authorization:

          Digest username="310410123456789@private.att.net",

          realm="one.att.net",

          nonce="1XcMbTY+MMNkpAePG/jtOm4yOzbFNdVV1XYObjNi45E=",

          uri="sip:one.att.net", r

          esponse="7a87c22410c409ffef55ea37b41bfe4c",

          algorithm=AKAv1-MD5,

          cnonce="b4972c8ee817300a7ff36ed1cbd59be", opaque="09e...",

          qop=auth,

          nc=00000001

        Security-Verify:

          ipsec-3gpp; ealg=null;

          alg=hmac-sha-1-96;

          spi-c=98765431; spi-s=87654321; port-c=(f)55063; port-s=(g)55062;

          q=0.9,

          ipsec-3gpp; ealg=null;

          alg=hmac-md5-96;

          spi-c=98765431; spi-s=87654321; port-c=(h)55063; port-s=(i)55062;

          q=0.7

        P-Access-Network-Info: 3GPP-E-UTRAN-FDD; utran-cell-id-3gpp=31041000040000004

        Supported: sec-agree, path

        Proxy-Require: sec-agree

          Security-Client:

          ipsec-3gpp; ealg=aes-cbc;

          alg=hmac-sha-1-96;

          spi-c=41064354; spi-s=34933966; port-c=(j)50000; port-s=(k)50001; prot=esp;

          mod=trans, ipsec-3gpp;

          ealg=aes-cbc;

          alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966; port-c=(l)50000; port-s=(m)50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=des-ede3-cbc;

          alg=hmac-sha-1-96;

          spi-c=41064354; spi-s=34933966; port-c=(o)50000; port-s=(p)50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=des-ede3-cbc;

          alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966; port-c=(q)50000; port-s=(r)50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=null;

          alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966; port-c=(s)50000; port-s=(t)50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=null;

          alg=hmac-md5-96; spi-c=41064354; spi-s=34933966; port-c=(u)50000; port-s=(v)50001; prot=esp; mod=trans

        Require: sec-agree

        Content-Length: 0



    Transmission Control Protocol, (i)Src Port: 55062 , (ii)Dst Port: 50000 , Seq: 1, Ack: 2279, Len: 655

      SIP/2.0 200 OK

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:50001;branch=z9h....;rport

        To: <sip:310410123456789@one.att.net>; tag=ATL2604_d9bc654771cd

        From: <sip:310410123456789@one.att.net>;tag=4887461765a4b2fc-d90ef734.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 2 REGISTER

        Contact: <sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(iii)50001;(iv)transport=tcp>; expires=1200

        P-Associated-URI: <tel:+14251234567>

        P-Associated-URI: <sip:+14251234567@one.att.net>

        Service-Route: <sip:scscf.anyims.test.3gpp.com;lr>

        Path: <sip:[fd29:cc43:7fb9:2:20c:29ff:fe66:b4c7];lr>

        Content-Length: 0

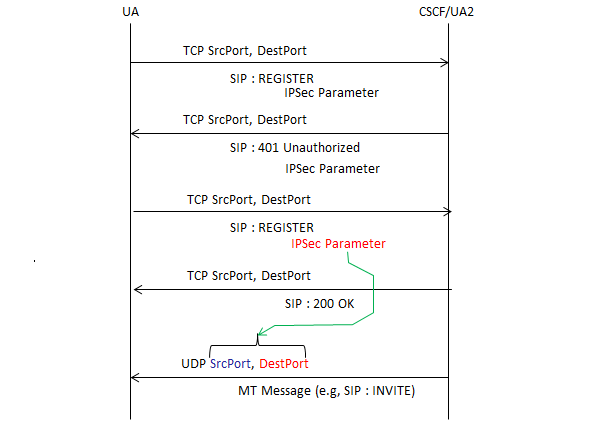

< Case 5> ------------------------------------------------------------------------------------------------





    Transmission Control Protocol, (a)Src Port: 50000, (b)Dst Port: 55062, Seq: 1294, Ack: 1,

      REGISTER sip:one.att.net SIP/2.0

        Via: SIP/2.0/TCP [3000::2:5547:21cb:7edf:9962]:(c)50001;branch=z9h....;rport

        Max-Forwards: 70

        Contact: <sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:(d)50001;(e)transport=tcp>;

          +g.3gpp.smsip;

          +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

          +sip.instance="<urn:gsma:imei:00440224-264925-0>"

        To: <sip:310410123456789@one.att.net>

        From: <sip:310410123456789@one.att.net>;tag=4887461765a4b2fc-d90ef734.0

        Call-ID: 54df046e-10604c38-9f947b79@3000::2:5547:21cb:7edf:9962

        CSeq: 2 REGISTER

        Expires: 600000

        Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO

        User-Agent: IM-client/OMA1.0 TEST-IMS

        Authorization:

          Digest username="310410123456789@private.att.net",

          realm="one.att.net",

          nonce="1XcMbTY+MMNkpAePG/jtOm4yOzbFNdVV1XYObjNi45E=",

          uri="sip:one.att.net", r

          esponse="7a87c22410c409ffef55ea37b41bfe4c",

          algorithm=AKAv1-MD5,

          cnonce="b4972c8ee817300a7ff36ed1cbd59be", opaque="09e...",

          qop=auth,

          nc=00000001

        Security-Verify:

          ipsec-3gpp; ealg=null;

          alg=hmac-sha-1-96;

          spi-c=98765431; spi-s=87654321; port-c=(f)55063; port-s=(g)55062;

          q=0.9,

          ipsec-3gpp; ealg=null;

          alg=hmac-md5-96;

          spi-c=98765431; spi-s=87654321; port-c=(h)55063; port-s=(i)55062;

          q=0.7

        P-Access-Network-Info: 3GPP-E-UTRAN-FDD; utran-cell-id-3gpp=31041000040000004

        Supported: sec-agree, path

        Proxy-Require: sec-agree

          Security-Client:

          ipsec-3gpp; ealg=aes-cbc;

          alg=hmac-sha-1-96;

          spi-c=41064354; spi-s=34933966; port-c=(j)50000; port-s=(k)50001; prot=esp;

          mod=trans, ipsec-3gpp;

          ealg=aes-cbc;

          alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966; port-c=(l)50000; port-s=(m)50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=des-ede3-cbc;

          alg=hmac-sha-1-96;

          spi-c=41064354; spi-s=34933966; port-c=(o)50000; port-s=(p)50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=des-ede3-cbc;

          alg=hmac-md5-96;

          spi-c=41064354; spi-s=34933966; port-c=(q)50000; port-s=(r)50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=null;

          alg=hmac-sha-1-96; spi-c=41064354; spi-s=34933966; port-c=(s)50000; port-s=(t)50001;

          prot=esp; mod=trans, ipsec-3gpp;

          ealg=null;

          alg=hmac-md5-96; spi-c=41064354; spi-s=34933966; port-c=(u)50000; port-s=(v)50001; prot=esp; mod=trans

        Require: sec-agree

        Content-Length: 0





    Transmission Control Protocol, (i)Src Port: 55063 , (ii)Dst Port: 50001 , Seq: 1302, Ack: 1, Len: 341

      INVITE sip:310410123456789@[3000::2:5547:21cb:7edf:9962]:50001;transport=tcp SIP/2.0

        Via: SIP/2.0/TCP [fd29:cc43:7fb9:2:20c:29ff:fe66:b4c7]:55062; branch=z9hG4bK62b4a2938807

        Via: SIP/2.0/TCP scscf.anyims.test.3gpp.com; branch=z9hG4bK74eddae782b9

        Max-Forwards: 69

        To: <tel:+14251234567>

        From: <sip:+18472733800@one.att.net;user=phone>; tag=ATL2604_06f4d629ece8

        Call-ID: 551fe04688e4

        CSeq: 1 INVITE

        Via: SIP/2.0/TCP caller.3gpp.org:6543;branch=z9hG4bK87ee715641bd

        Record-Route: <sip:scscf.anyims.test.3gpp.com;lr>

        Record-Route: <sip:[fd29:cc43:7fb9:2:20c:29ff:fe66:b4c7]:55062;lr>

        Supported: 100rel,precondition

        Allow: INVITE,ACK,CANCEL,BYE,UPDATE,PRACK,MESSAGE,REFER,NOTIFY

        P-Asserted-Identity: <sip:+18472733800@one.att.net;user=phone>

        P-Called-Party-ID: <tel:+14251234567>

        Contact: <sip:+18472733800@[3000:0:0:2::1]:5160>;+g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";video

        P-Asserted-Service: urn:urn-7:3gpp-service.ims.icsi.mmtel

        Accept-Contact: *;+g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";video

        Accept: application/sdp, application/3gpp-ims+xml

        Content-Length: 486

        Content-Type: application/sdp
