NXP has the most diverse registers and most complicated register control parameters that I have ever seen. For sure, it is not a good for the embedded system programmers but it implies you will have full flexibility to control those registers.  In this page, I will just show you the list of those registers and the brief instruction directly copied from the NXP chipset user manual (linked in Reference section) to give you the overall picture of these registers. You would need to look into the user manual if you need any further details.

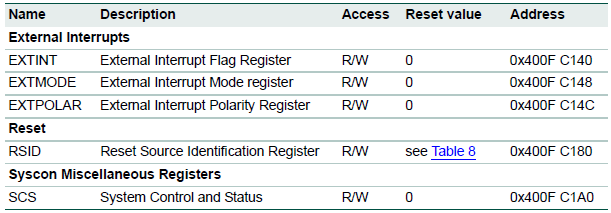

System Control Registers

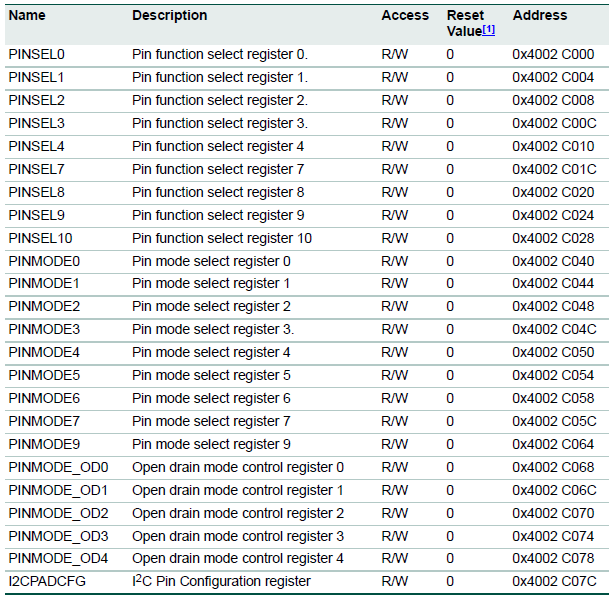

Pin Control Registers

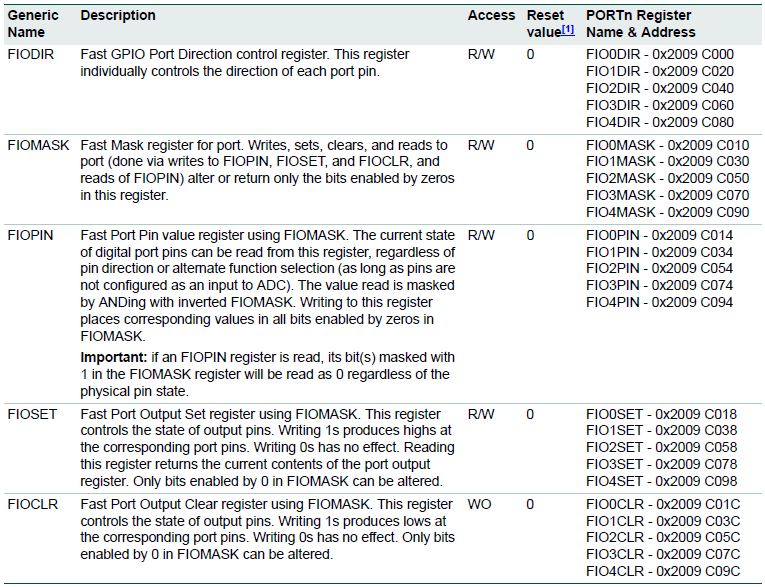

GPIO Registers

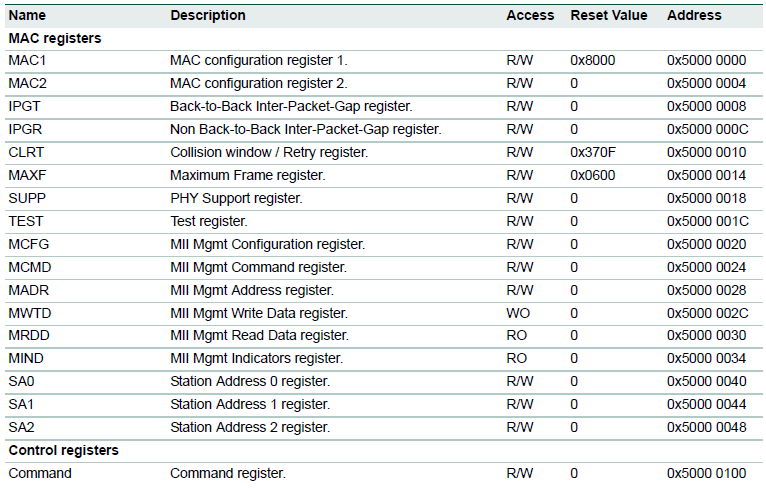

Ethernet Register

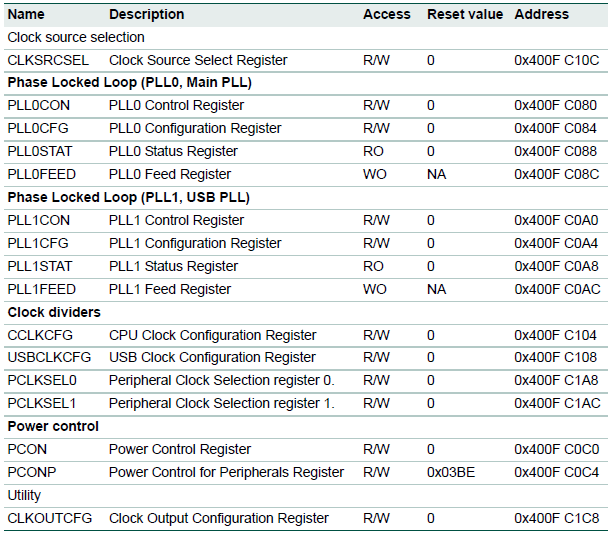

Clocking and Power Control Registers

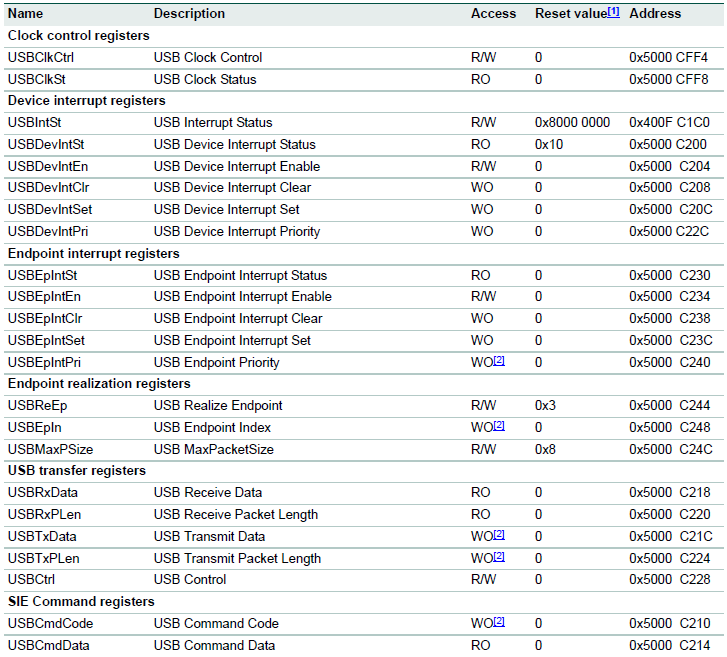

USB Controller Register

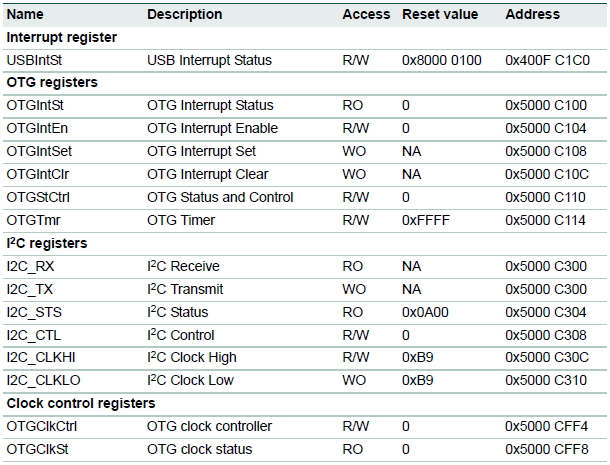

USB OTG(On-The-Go) and I2C Registers

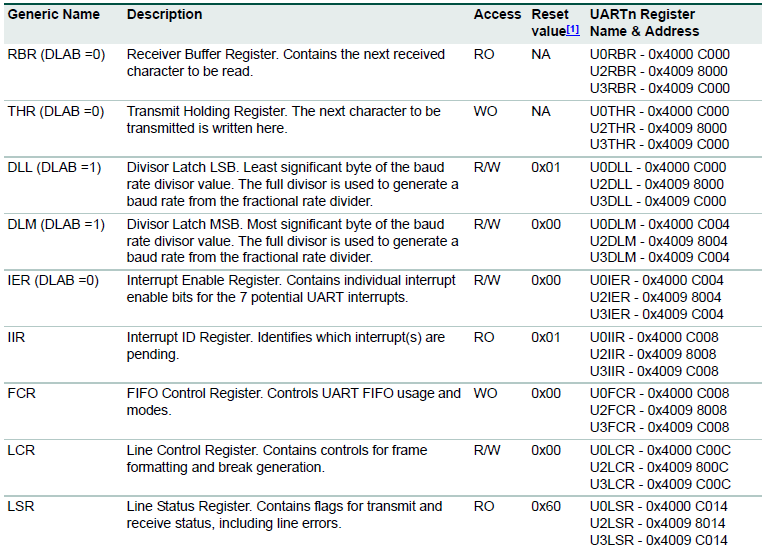

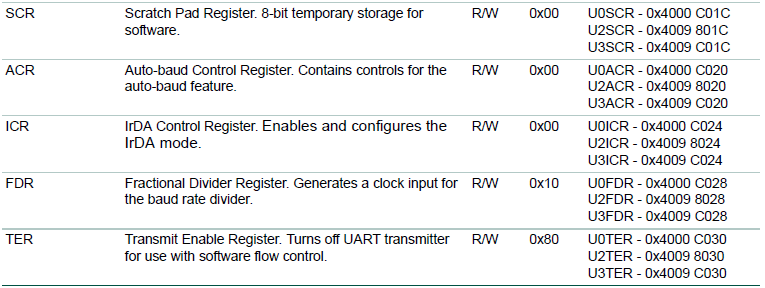

UART 0/2/3

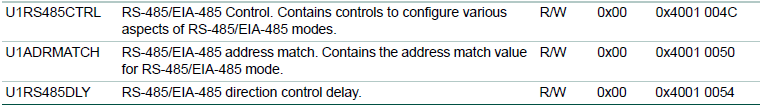

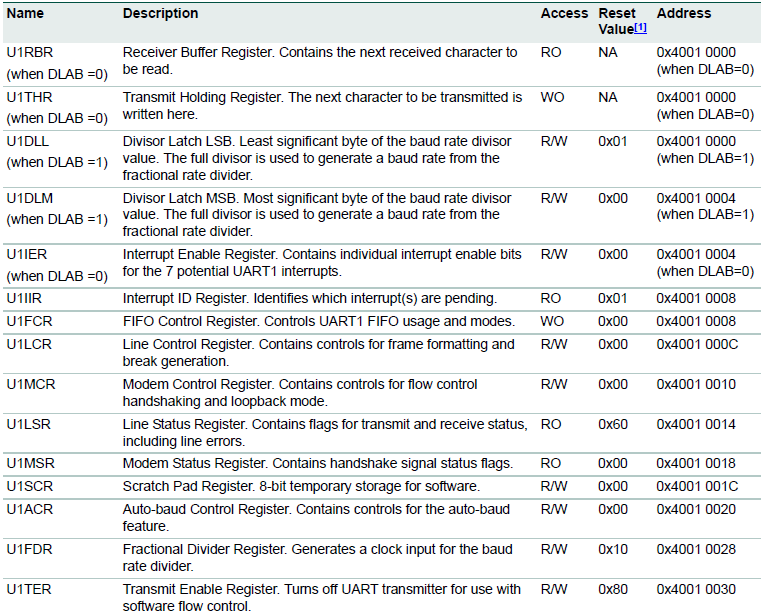

UART 1 Register







CAN Controller Register

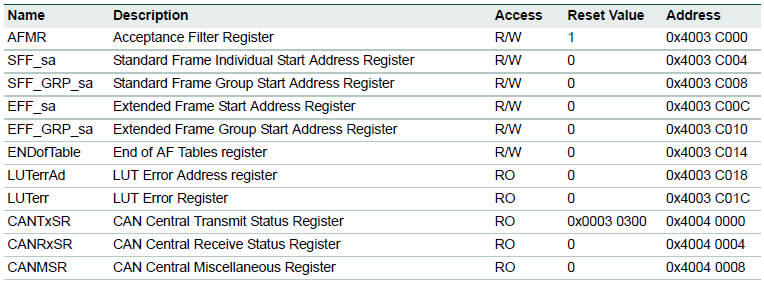

< CAN acceptance filter and central CAN registers  >

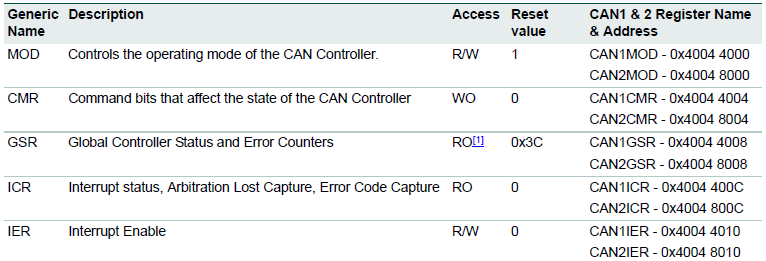

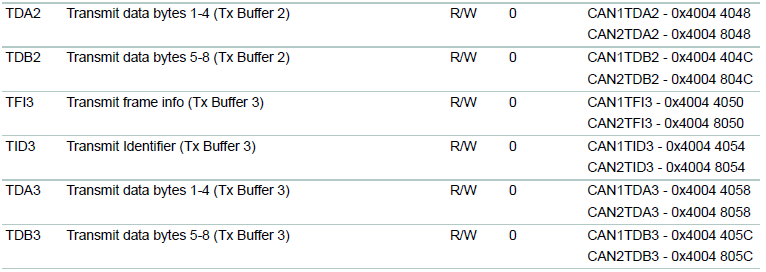

< CAN1 and CAN2 controller register map >

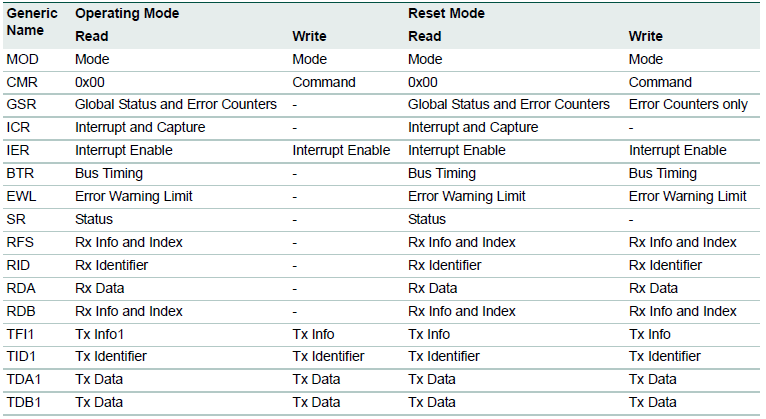

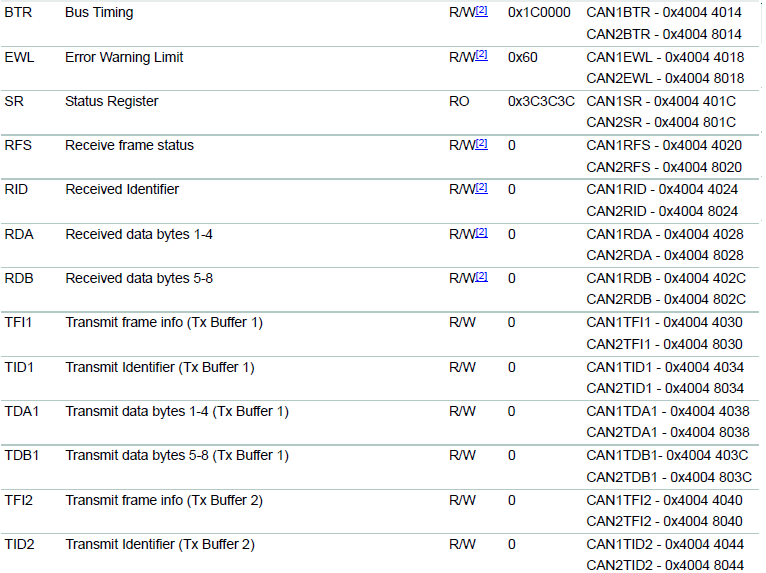

< CAN1 and CAN2 controller register summary >



< CAN Wake and Sleep registers >

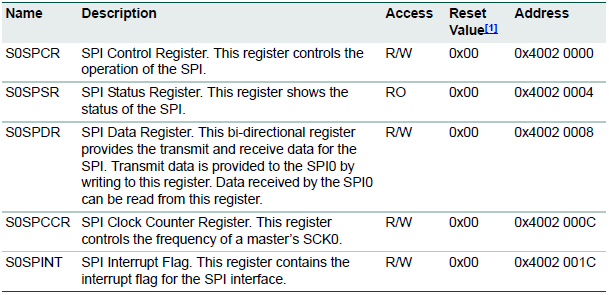

SPI Register

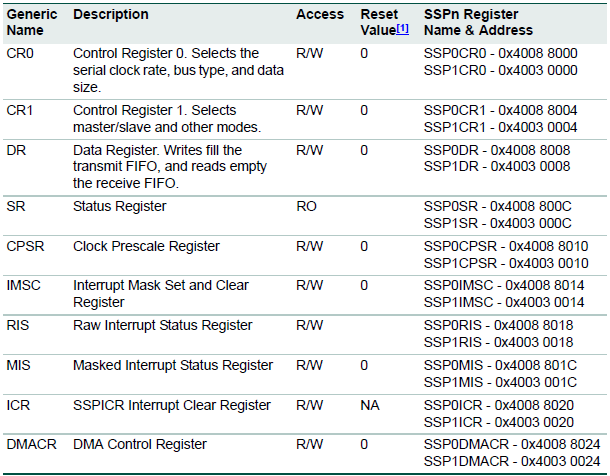

SSP 0/1 Register

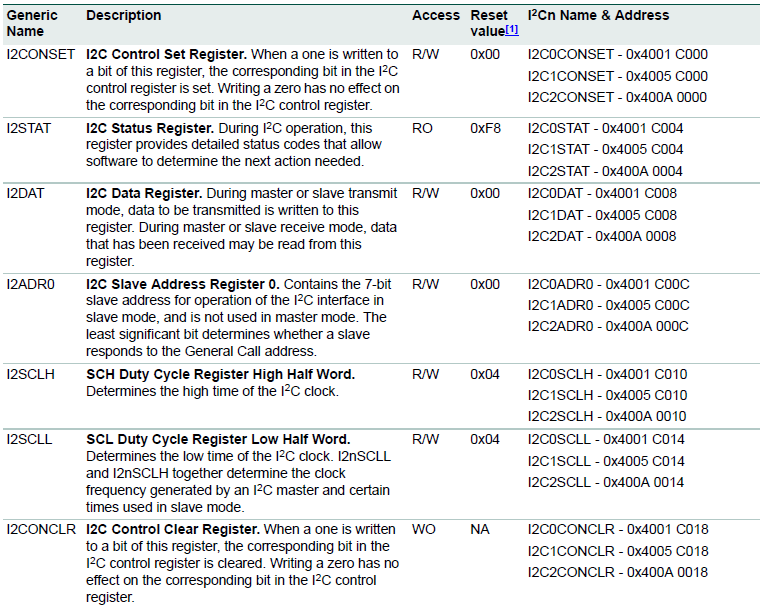

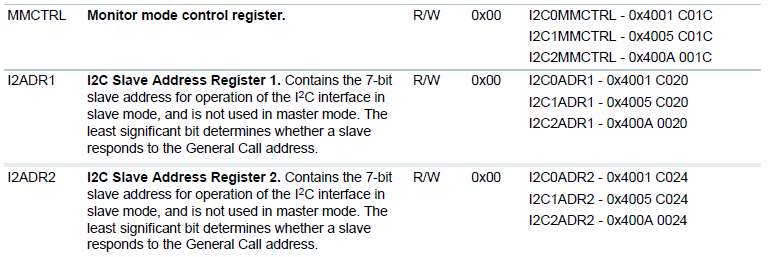

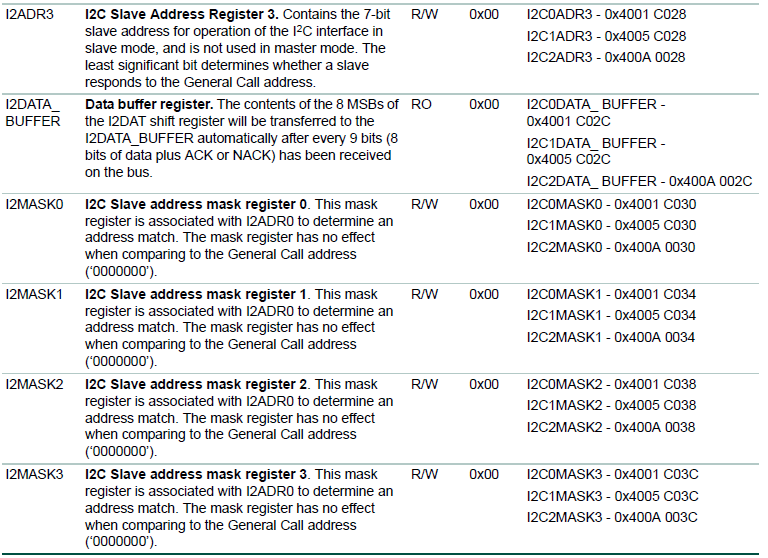

I2C 0/1/2 Register

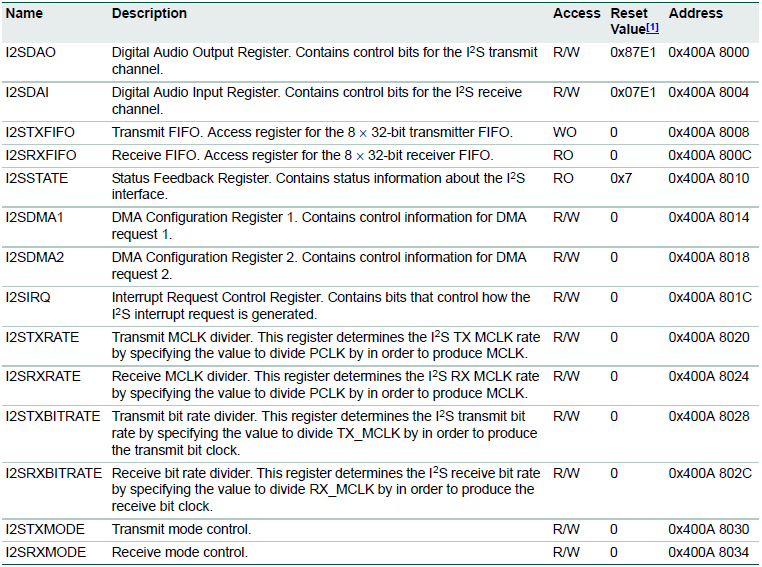

I2S Register

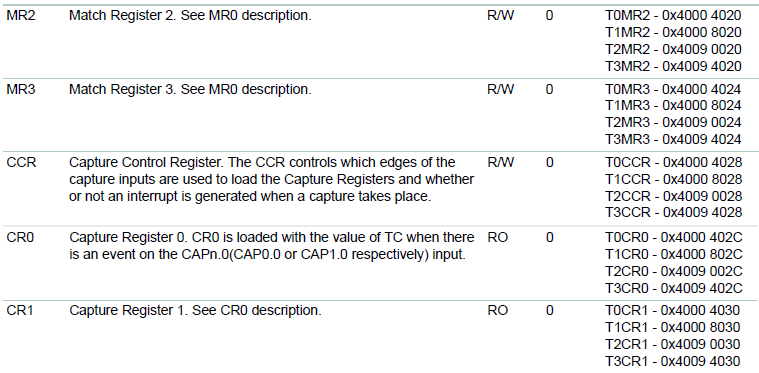

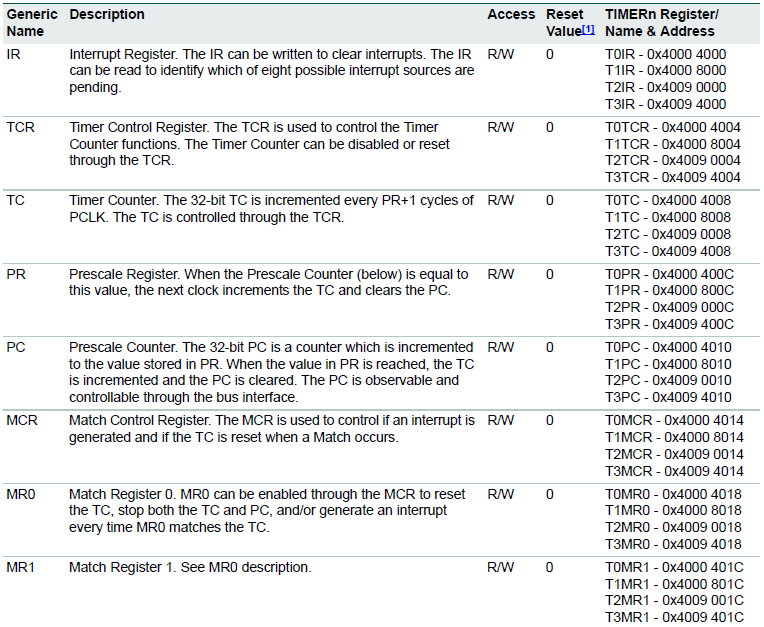

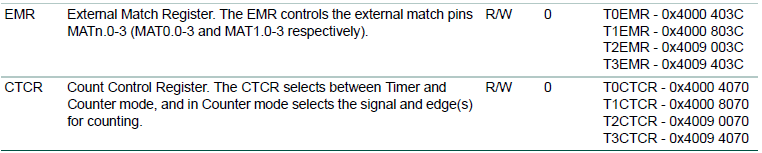

Timer / Counter 0/1/2/3

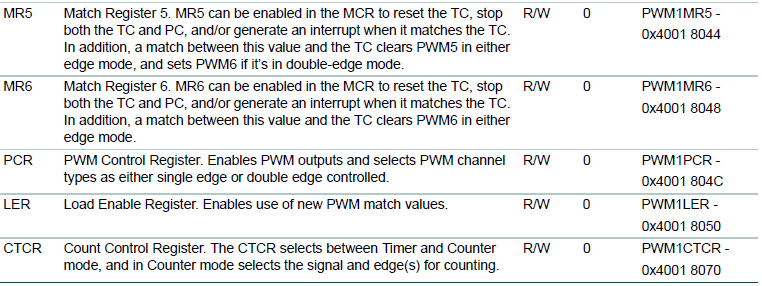

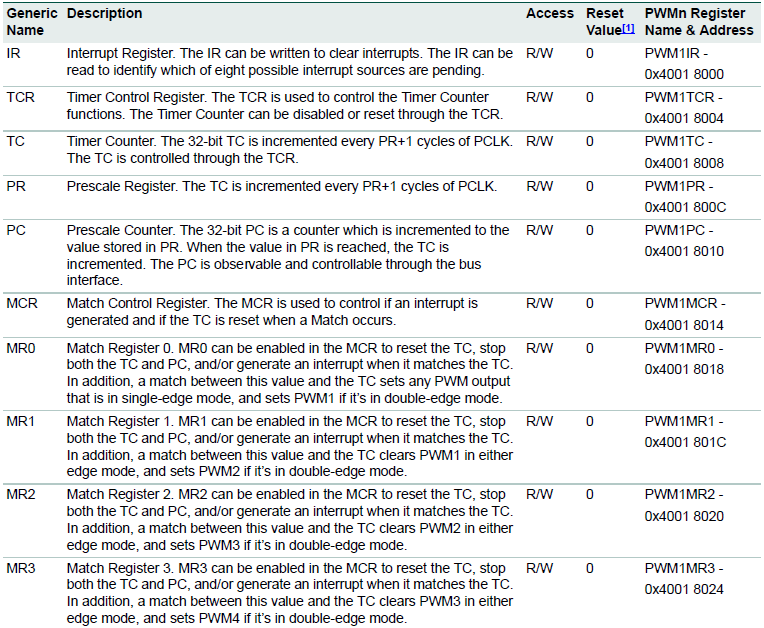

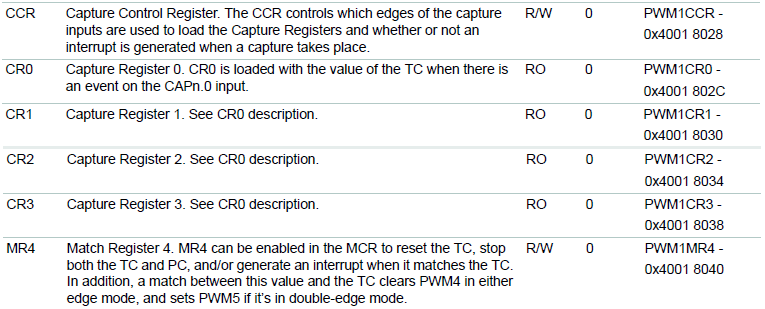

PWM Register

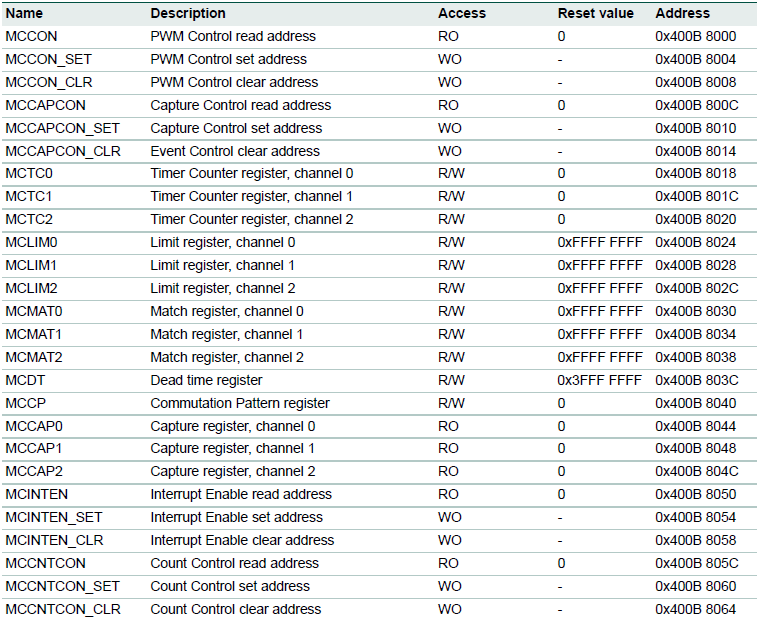

Motor Control PWM

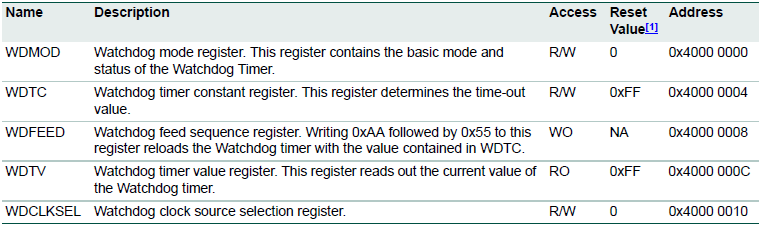

Watchdog Timer Register

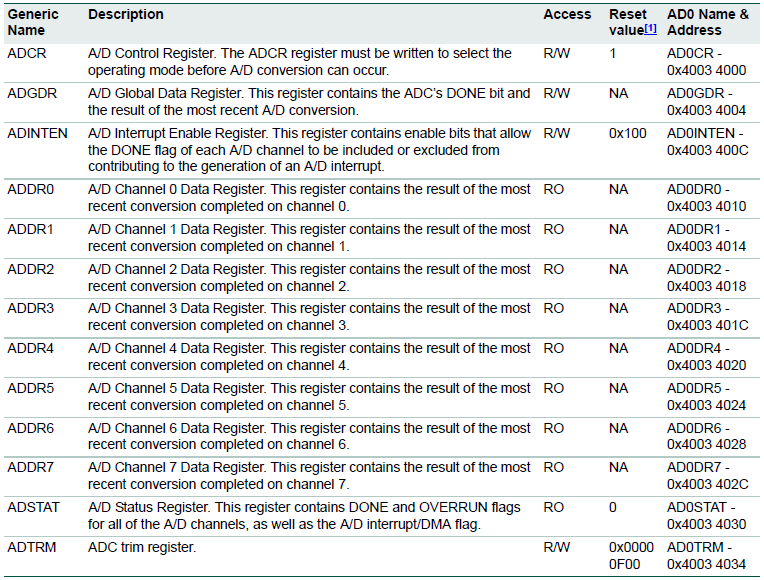

ADC Register

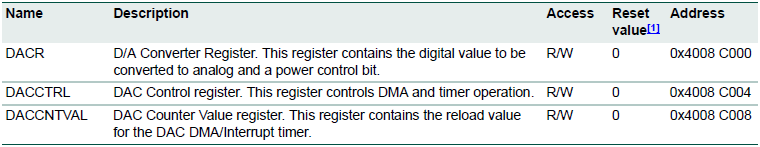

DAC Register

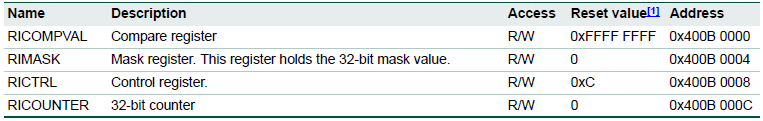

Repetitive Interrupt Timer register

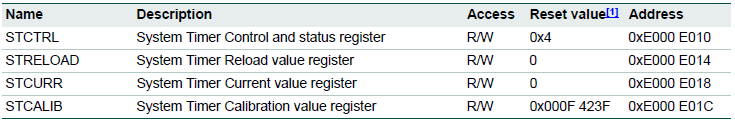

System Tick Timer

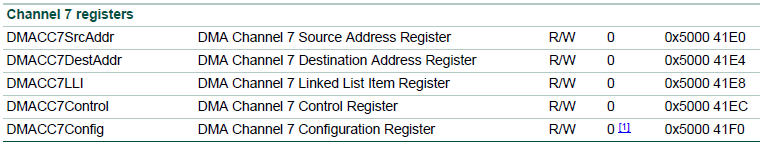

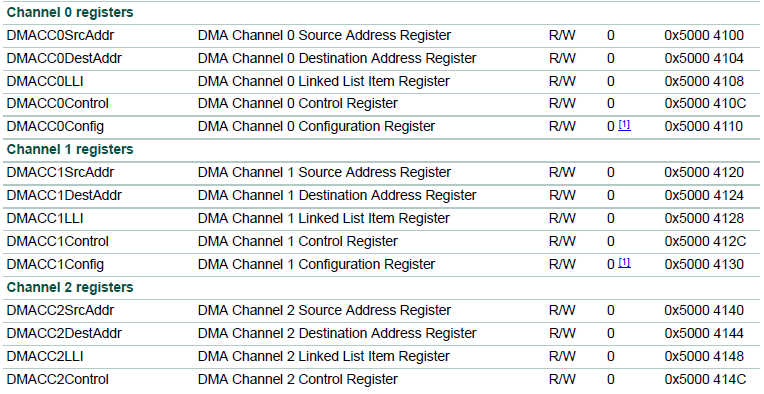

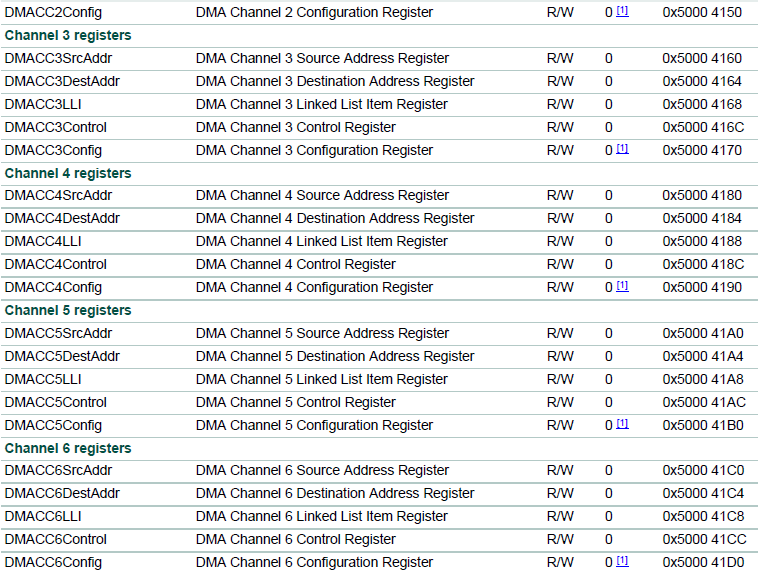

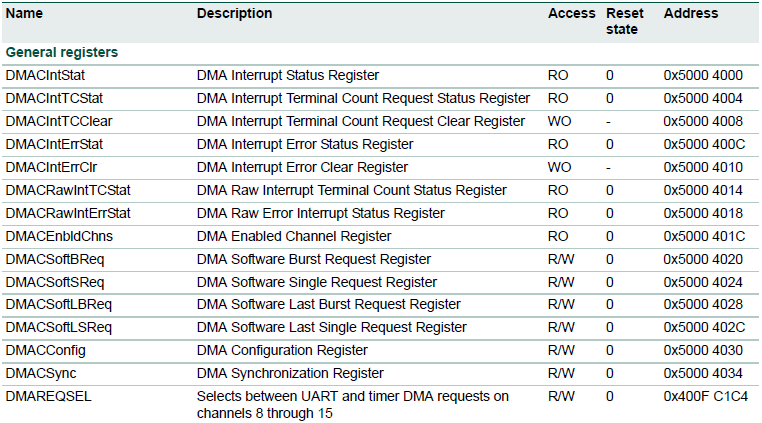

General Purpose DMA







Reference :



[1] UM10360 LPC176x/5x User manual
