IMS | ShareTechnote

As you know all the IMS (SIP) message are carried in the form of IP data through TCP or UDP socket. So, if necessary we can use IP level security for IMS/SIP transaction.

In order to enable IP level security (IP Sec), we need to go through SA(Security Association) process and exchange key exchange procedure. This process be done during IMS registration and the information for SA are embedded in IMS registration message. Overall procedure of IP Sec SA process is illustrated as below.

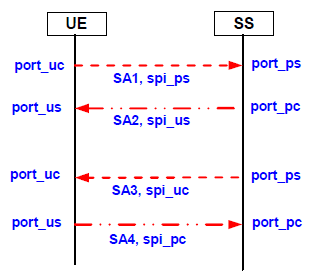

< 36.523-3 Figure 4.2.5.2.3.1-1 Two pairs of SAs >

The 4 step SA setup process can be combined with IMS Registration process in a couple of different variations. One example specified in conformance test is illustrated as below. It seems that the start of SA process may vary. In the following illustration, SA starts from step (3), but in Example 1, you can see the case where UE start SA from Step (1).

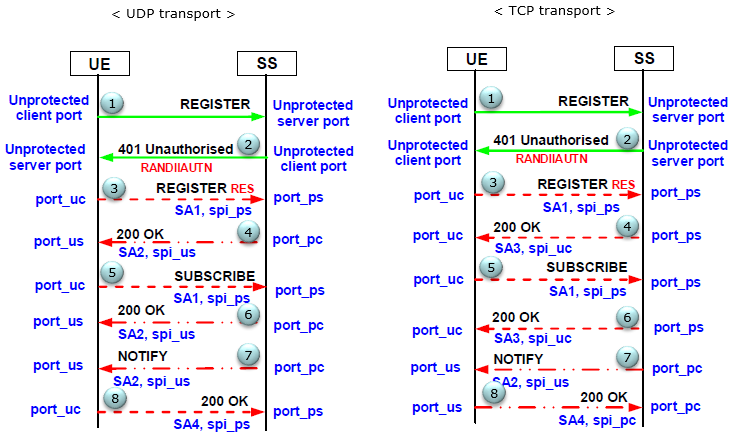

< 36.523-3 Figure 4.2.5.2.3.1-2: Usage of ports and SAs in UDP and TCP transport >

Example 1 : Authentication and IPSec ========================================

This example would look a little bit different from the procedures illustrated above in terms of SA starting point, but overall log (4 step SA process = 2 SA establishment) are same. Go through the message and how the port number in RED are associated the port number in BLUE.

Contents

Step 1 : REGISTER over TCP -----------------------------------

Transmission Control Protocol, Src Port: 42368 (42368), Dst Port: sip (5060), Seq: 1, Ack: 1, Len: 1314

Max-Forwards: 70

Route: <sip:[2001:0:0:1::2]:5060;lr>

Via: SIP/2.0/TCP [2001::1:d1ae:bb37:d9c9:81d0]:5060;branch=z9hG4bK370690ecb-643c9869

Call-ID: 37067dd33-6b8b4567@2001::1:d1ae:bb37:d9c9:81d0

CSeq: 1 REGISTER

From: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=54467370690e30-327b23c6

To: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>

Supported: path,eventlist,sec-agree,gruu,outbound

Require: sec-agree

Allow: INVITE,BYE,CANCEL,ACK,NOTIFY,UPDATE,REFER,PRACK,INFO,MESSAGE

Authorization:

This SIP message clip highlights the following parameters: Via, Route, Authorization, CSeq, Call-ID, From, To, Max-Forwards, Supported, Allow, Require. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Digest username="001010123456789@ims.sharetechnote.com",

realm="ims.sharetechnote.com",

nonce="",

uri="sip:ims.sharetechnote.com",

response="",

algorithm=AKAv1-MD5

This SIP message clip highlights the following parameters: nonce, response, realm, algorithm. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Security-Client:

ipsec-3gpp;

This SIP message clip highlights the following parameters: Security-Client. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

alg=hmac-md5-96;

prot=esp;

mod=trans;

ealg=null;

spi-c=0000565817;spi-s=0000565818;

port-c=38003;port-s=39003,

ipsec-3gpp;

alg=hmac-sha-1-96;

prot=esp;

mod=trans;

ealg=null;

spi-c=0000565817;spi-s=0000565818;

port-c=38003;port-s=39003

Contact: <sip:001010123456789@[2001::1:d1ae:bb37:d9c9:81d0]:39003>;

This SIP message clip highlights the following parameters: Contact. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

+g.3gpp.smsip;

+g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";video;expires=600000;

This SIP message clip highlights the following parameters: Expires. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

+sip.instance="<urn:gsma:imei:35910506-000422-0>";reg-id=1

Proxy-Require: sec-agree

User-Agent: IMS TestClient/4.0.0 H81110t

Content-Length: 0

This SIP message clip highlights the following parameters: Content-Length, User-Agent, Proxy-Require. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Step 2 : 401 Unauthorized over TCP -----------------------------------

Transmission Control Protocol, Src Port: sip (5060), Dst Port: 42368 (42368), Seq: 1, Ack: 1315, Len: 723

SIP/2.0 401 Unauthorized

Max-Forwards: 70

Via: SIP/2.0/TCP [2001::1:d1ae:bb37:d9c9:81d0]:5060;branch=z9hG4bK370690ecb-643c9869

From: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=54467370690e30-327b23c6

To: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=987654321

Call-ID: 37067dd33-6b8b4567@2001::1:d1ae:bb37:d9c9:81d0

CSeq: 1 REGISTER

WWW-Authenticate:

This SIP message clip highlights the following parameters: Via, WWW-Authenticate, CSeq, Call-ID, From, To, Max-Forwards. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Digest realm="ims.mnc01.mcc001.3gppnetwork.org",

nonce="26ohPzgYyy3VFVa4VnXhKgx8Ta1aXYAA27sDDHxNLVo=",

qop="auth",opaque="4669e9192b2042d499606fe3e0fa839a",

algorithm=AKAv1-MD5

This SIP message clip highlights the following parameters: nonce, realm, qop, algorithm, opaque. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Security-Server:

This SIP message clip highlights the following parameters: Security-Server. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

ipsec-3gpp;

alg=hmac-md5-96;

ealg=null;

prot=esp;

mod=trans;

spi-c=3458785863;spi-s=2821032177;

port-c=50717;port-s=50718;

q=0.1

Content-Length: 0

This SIP message clip highlights the following parameters: Content-Length. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Step 3 : REGISTER over TCP -----------------------------------

Transmission Control Protocol, Src Port: 38003 (38003), Dst Port: 50718 (50718), Seq: 1347, Ack: 1, Len: 360

Max-Forwards: 70

Route: <sip:[2001:0:0:1::2]:50718;lr>

Via: SIP/2.0/TCP [2001::1:d1ae:bb37:d9c9:81d0]:39003;branch=z9hG4bK370723a88-32d70d67

Call-ID: 37067dd33-6b8b4567@2001::1:d1ae:bb37:d9c9:81d0

CSeq: 2 REGISTER

From: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=54467370723a6a-0be8e1f8

To: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>

Supported: path,eventlist,sec-agree,gruu,outbound

Require: sec-agree

Allow: INVITE,BYE,CANCEL,ACK,NOTIFY,UPDATE,REFER,PRACK,INFO,MESSAGE

Contact: <sip:001010123456789@[2001::1:d1ae:bb37:d9c9:81d0]:39003>;

This SIP message clip highlights the following parameters: Via, Route, Contact, CSeq, Call-ID, From, To, Max-Forwards, Supported, Allow, Require. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

+g.3gpp.smsip;+g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";video;expires=600000;

+sip.instance="<urn:gsma:imei:35910506-000422-0>";reg-id=1

Security-Client:

ipsec-3gpp;

alg=hmac-md5-96;

prot=esp;

mod=trans;

ealg=null;

spi-c=0000565817;spi-s=0000565818;

port-c=38003;port-s=39003,

ipsec-3gpp;

alg=hmac-sha-1-96;

prot=esp;

mod=trans;

ealg=null;

spi-c=0000565817;spi-s=0000565818;

port-c=38003;port-s=39003

Security-Verify:

ipsec-3gpp;

q=0.1;

alg=hmac-md5-96;

prot=esp;

mod=trans;

ealg=null;

spi-c=3458785863;spi-s=2821032177;

port-c=50717;port-s=50718

P-Access-Network-Info: 3GPP-E-UTRAN-FDD;utran-cell-id-3gpp=0010100000000000

Authorization:

This SIP message clip highlights the following parameters: Authorization, P-Access-Network-Info. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Digest username="001010123456789@ims.sharetechnote.com",

realm="ims.mnc01.mcc001.3gppnetwork.org",

nonce="26ohPzgYyy3VFVa4VnXhKgx8Ta1aXYAA27sDDHxNLVo=",

uri="sip:ims.sharetechnote.com",

response="e089b68060162b5c6a328e5dd2d43133",

algorithm=AKAv1-MD5,

cnonce="NGNhMTgzMw==",

opaque="4669e9192b2042d499606fe3e0fa839a",

qop=auth,

nc=00000001

This SIP message clip highlights the following parameters: nonce, response, realm, qop, algorithm, opaque. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

User-Agent: IMS TestClient/4.0.0 H81110t

Proxy-Require: sec-agree

Content-Length: 0

Step 4 : 200 OK over TCP -----------------------------------

Transmission Control Protocol, Src Port: 50718 (50718), Dst Port: 38003 (38003), Seq: 1, Ack: 1707, Len: 781

SIP/2.0 200 OK

Max-Forwards: 70

Via: SIP/2.0/TCP [2001::1:d1ae:bb37:d9c9:81d0]:39003;branch=z9hG4bK370723a88-32d70d67

From: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=54467370723a6a-0be8e1f8

To: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=54467370723a6a-0be8e1f8

Call-ID: 37067dd33-6b8b4567@2001::1:d1ae:bb37:d9c9:81d0

CSeq: 2 REGISTER

Date: Thu, 25 Aug 2016 11:37:08 GMT

Require: sec-agree

P-Associated-URI: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>

Contact: <sip:001010123456789@[2001::1:d1ae:bb37:d9c9:81d0]:39003>;

This SIP message clip highlights the following parameters: Via, Contact, CSeq, Call-ID, From, To, Max-Forwards, P-Associated-URI, Date, Require. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

+g.3gpp.smsip;

+g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";video;expires=600000;

+sip.instance="<urn:gsma:imei:35910506-000422-0>";reg-id=1

Content-Length: 0

Path: <sip:[2001:0:0:1::2];lr>

Step 5 : SUBSCRIBE over UDP -----------------------------------

User Datagram Protocol, Src Port: 38003 (38003), Dst Port: 50718 (50718)

SUBSCRIBE sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org SIP/2.0

Max-Forwards: 70

Route: <sip:[2001:0:0:1::2]:50718;lr>

Via: SIP/2.0/UDP [2001::1:d1ae:bb37:d9c9:81d0]:39003;branch=z9hG4bK3707d1f14-46487f22

Call-ID: 3707d1e50-445f44a7@2001::1:d1ae:bb37:d9c9:81d0

CSeq: 1 SUBSCRIBE

From: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=544673707d1e7d-3d740161

To: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>

This SIP message clip highlights the following parameters: Via, Route, CSeq, Call-ID, From, To, Max-Forwards. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Accept: application/reginfo+xml

Allow: INVITE,BYE,CANCEL,ACK,NOTIFY,UPDATE,REFER,PRACK,INFO,MESSAGE

This SIP message clip highlights the following parameters: Allow. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Security-Verify:

ipsec-3gpp;

q=0.1;

alg=hmac-md5-96;

prot=esp;

mod=trans;

ealg=null;

spi-c=3458785863;spi-s=2821032177;

port-c=50717;port-s=50718

Require: sec-agree

P-Access-Network-Info: 3GPP-E-UTRAN-FDD;utran-cell-id-3gpp=0010100000000000

This SIP message clip highlights the following parameters: P-Access-Network-Info, Require. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Event: reg

Contact: <sip:001010123456789@[2001::1:d1ae:bb37:d9c9:81d0]:39003;ob>;

+sip.instance="<urn:gsma:imei:35910506-000422-0>"

Expires: 600000

Proxy-Require: sec-agree

User-Agent: IMS TestClient/4.0.0 H81110t

Content-Length: 0

This SIP message clip highlights the following parameters: Expires, Content-Length, User-Agent, Proxy-Require. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Step 6 : 200 OK over UDP -----------------------------------

User Datagram Protocol, Src Port: 50717 (50717), Dst Port: 39003 (39003)

SIP/2.0 200 OK

Max-Forwards: 70

Via: SIP/2.0/UDP [2001::1:d1ae:bb37:d9c9:81d0]:39003;branch=z9hG4bK3707d1f14-46487f22

From: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=544673707d1e7d-3d740161

To: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=544673707d1e7d-3d740161

Call-ID: 3707d1e50-445f44a7@2001::1:d1ae:bb37:d9c9:81d0

CSeq: 1 SUBSCRIBE

Expires: 600000

Contact: <sip:[2001:0:0:1::2]:50718;transport=udp>

This SIP message clip highlights the following parameters: Via, Contact, Expires, CSeq, Call-ID, From, To, Max-Forwards. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Record-Route: <sip:[2001:0:0:1::2]:50718;lr>

Content-Length: 0

Step 7 : NOTIFY over UDP -----------------------------------

User Datagram Protocol, Src Port: 50717 (50717), Dst Port: 39003 (39003)

NOTIFY sip:001010123456789@[2001::1:d1ae:bb37:d9c9:81d0]:39003;ob SIP/2.0

Via: SIP/2.0/UDP [2001:0:0:1::2]:50718;branch=z9hG4bK0a0d0d34d4d84c91b07959b6fcb7e3e914;transport=udp

Max-Forwards: 69

Call-ID: 3707d1e50-445f44a7@2001::1:d1ae:bb37:d9c9:81d0

CSeq: 1 NOTIFY

To: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=544673707d1e7d-3d740161

From: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=544673707d1e7d-3d740161

Contact: <sip:[2001:0:0:1::2]:50718;transport=udp>

This SIP message clip highlights the following parameters: Via, Contact, CSeq, Call-ID, From, To, Max-Forwards. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Event: reg

Subscription-State: active;expires=600000

Content-Type: application/reginfo+xml

Content-Length: 740

This SIP message clip highlights the following parameters: Content-Type, Content-Length. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Record-Route: <sip:[2001:0:0:1::2]:50718;lr>

<?xml version="1.0" encoding="utf-8"?>

<unknown-param name="+g.3gpp.smsip" />

<unknown-param name="+g.3gpp.icsi-ref">"urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"</unknown-param>

<unknown-param name="video" />

<unknown-param name="+sip.instance">"<urn:gsma:imei:35910506-000422-0>"</unknown-param>

<unknown-param name="reg-id">1</unknown-param>

</contact>

</registration>

</reginfo>

Step 8 : 200 OK over UDP -----------------------------------

User Datagram Protocol, Src Port: 38003 (38003), Dst Port: 50718 (50718)

SIP/2.0 200 OK

Via: SIP/2.0/UDP [2001:0:0:1::2]:50718;branch=z9hG4bK0a0d0d34d4d84c91b07959b6fcb7e3e914;transport=udp

This SIP message clip highlights the following parameters: Via. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Record-Route: <sip:[2001:0:0:1::2]:50718;lr>

Call-ID: 3707d1e50-445f44a7@2001::1:d1ae:bb37:d9c9:81d0

CSeq: 1 NOTIFY

From: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=544673707d1e7d-3d740161

To: <sip:001010123456789@ims.mnc01.mcc001.3gppnetwork.org>;tag=544673707d1e7d-3d740161

Contact: <sip:001010123456789@[2001::1:d1ae:bb37:d9c9:81d0]:39003;ob>;

This SIP message clip highlights the following parameters: Contact, CSeq, Call-ID, From, To. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

+sip.instance="<urn:gsma:imei:35910506-000422-0>"

Allow: INVITE,BYE,CANCEL,ACK,NOTIFY,UPDATE,REFER,PRACK,INFO,MESSAGE

P-Access-Network-Info: 3GPP-E-UTRAN-FDD;utran-cell-id-3gpp=0010100000000000

This SIP message clip highlights the following parameters: P-Access-Network-Info, Allow. Use these fields to correlate routing, dialog identity, transaction sequencing, registration/session state, security context, and media negotiation for this part of the procedure.

Server: IMS TestClient/4.0.0 H81110t

Content-Length: 0
