Communication - Encode/Decode                                     Home : www.sharetechnote.com







In this page, I will go through Matlab/Octave functions for communication system within a context of a whole process but in step-by-step manner. You would have seen many other resources elsewhere explaining on these functions, but most of the material that I have seen was purely for showing the syntax of each functions. So it was very hard for me to understand practical meaning of those functions within a whole communication process.



Coding



(With Reference to Lec 2 | MIT 6.450 Principles of Digital Communications I, Fall 2006 (YouTube) )



Looks very simple. Then why the text book about this is so thick ?



It is because "We want to implement Efficient process". What do you mean by "Effiecient process" ? It may roughly mean "a process to send data using as less number of bits as possible" and "a process to be guaranteed to work". All that the thick text book is trying to say is "How we can make the efficient process ?", "How do you represent it in mathemaical form ?", "How do you prove (in mathemtical way) that it is efficient and always work?"



In real work, most of engineers doesn't care about this. There are only handsful of persons who digest all those textbook issues and come out with 'what they think is efficient process' and produce 'technical specification (e.g, 3GPP)'. Around 99% of us just follows the specification. That's why we don't read the text book after we graduate from university and still can survive -:)





Source Coding



There would be a couple of variations of the definitions of Source Coding depending on the context. The first type of definition is 'to convert the original data(user data) into a certain binary sequence' which is illustrated as below.



(With Reference to Lec 2 | MIT 6.450 Principles of Digital Communications I, Fall 2006 (YouTube) )

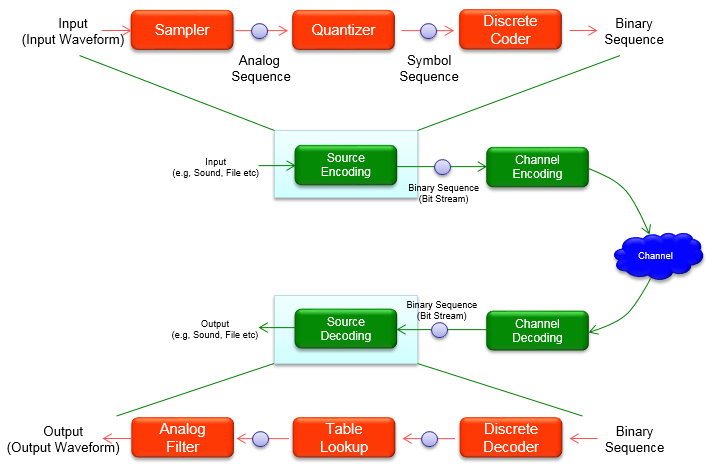

Another type of definition for source coding (according to Ref [2]) is to convert a source data into a form that can minimize the bandwidth that are required to transmit the data. Simply put, it is just another name for 'Data Compression'.



Again, It doesn't look that complicated. Then why the text book about this is so thick ?

Same answer as above.





Channel Coding



Channel Coding is a method to replace 'original data bits' with 'some other bits (normally longer than the original bits)'. For example, the simplest coding would be as follows :

    0 --> 0000 : replace all '1' in orginal data into '0000'

    1 --> 1111 :  replace all '1' in orginal data into '1111'

Another example of coding would be addition of parity bits as in RS 232 communication

        original seven bit data --> original seven bit data + one parity bit



In communication system, we usually call 'the original data' as a 'message' and call the ecoded data as 'Codeword'. In all encoding process, the length of Codeword is greater than the length of 'message', in means that in coding process some additional bits are added to the original data(message) and this additional bits are called 'redundency bits'.



Why Coding ?



Why do we need this kind of Coding ?

Most of the experts in this area would come out with something like 'Shannon's theorem'.. but let's just look at this in intuitive way rather than bringing up such a scary words.

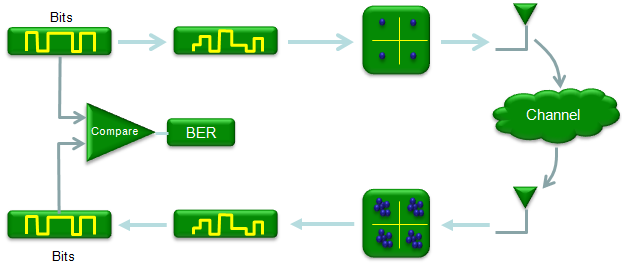

Let's look at the simple wireless communication process that we went through in previous section. In this process, what do you think is the biggest problem ?



Just give your self a moment to think before you go on.



The answer is the 'noise' which is added by 'Channel'. As you can guess, this noise would make a lot of errors while the reciever is demodulate the received signal into the bit stream.



What would be the solution for this problem ?



We can think about two possible options.

  • Make the channel noise-free. (Construct the channel in such a way there is no noise)
  • Use some method to detect and correct the error

Which option do you prefer ? You would know that the first option would be almost impossible especially in wireless communication. If it is wired communication, at least you can make some try to reduce the noise in the channel but in wireless it is almost impossible to remove the noise directly from the channel.

It means the only option is to develop some method (algorithm) to detect and correct the error caused by the noisy channel. This is the main motivation for 'Coding'.





Main idea of Coding is to add some additional bits (we call this as redundancy bits) to original data in a very special way (not in a random/arbitrary way) so that they can be used to detect the exact location of error and correct it.

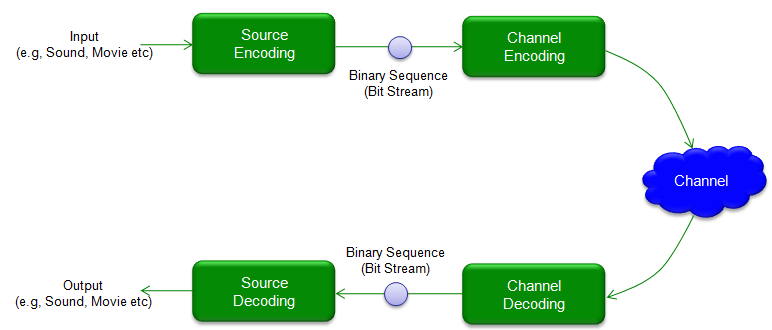

In communication chain, following two blocks are added for this purpose. 'Encoding' is the process of adding redundancy bits and 'Decoding' is the process of extracting the error corrected bits from the received data.

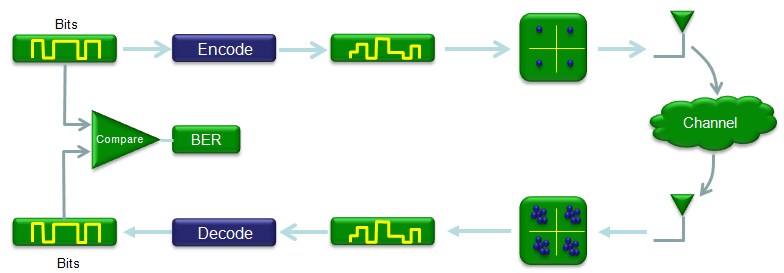

Usually Encoding/Decoding blocks locate as shown below. Encoding takes in the bits stream and produce coded bit stream.

Getting in further detail, this encoding often happens in two steps called Source Coding and Channel Coding, but in this post I will just describe this process as a single step.







Downside of Coding



In previous section, I said "Encoding/Decoding is mainly for detecting/correcting erros generated in communication process". It is very good and important step. But once you gain something, you would lose some other things. It is almost nature of everything including our life.



What is the gain for Encoding/Decoding ? It is the received data with less or almost no error.

What is the loss ? What is downside of this process ? Following are the major issues caused by Encoding/Decoding process.

  • Data Transmission Overhead (Due to redundancy bits)
  • Complicate the data transmission and reception process (due to encoding/decoding algorithm)





Fundamental Questions of Channel Coding



As I said earlier, Coding is adding some redundancy bits to original data and these redundancy bits will be used to detect and correct error in decoding process. There are many different Encoding/Decoding algorithms which has it's own advantage and disadvantages. So we would always have the following question when we implement Coding/Decoding Blocks.

  • How many bits of redundancy bits I have to add to minimize the number of redundancy bits and maximize the error correction ?
  • Which Encoding/Decoding algorithms would be the best for the communication system I am implementing. .

There would not be a simple/clear-cut answers to these questions.

In general, the more redundancy bits you add, you would have higher error detection/correction capability. But the more redudancy bit you add, the less throughput you would get because larger portions of transmitted bits should be allocated for the redundancy bits, not for the information that you want to send. So you have to carefully determine how many bits you would allocate for the redundancy bits.



Fortunately in most mobile communication system, somebody else has already determined the answer to these questions. For example, in LTE or WCDMA system.. 3GPP specification specifies all the details of Encoding/Decoding process and you don't have to worry about these questions.

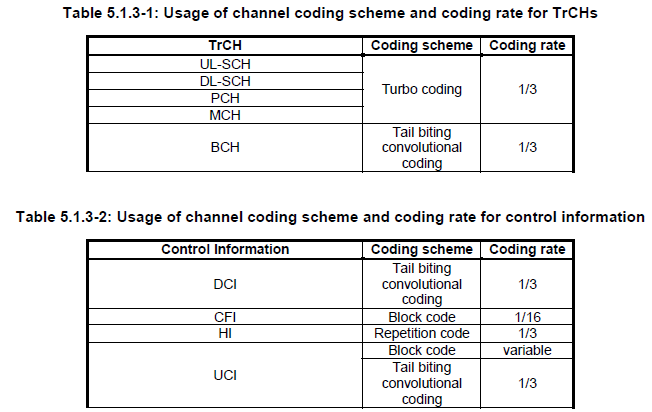

For example, in LTE case, 3GPP 36.212 specifies the Coding algorithm and related parameters as shown below. Chapter 5 of the specification provides all the detailed parameters to implement the coding process.





From now, I will introduce some of the basic functions in Matlab/Octave related to Encoding/Decoding. My goal is to extend this section to Turbo Coding/Convolution Coding which is most widely used in mobile communication system, but I am not sure by when I can achieve this goal. Let's just start with the simple things first.





Block Code



Overview



Block Code is an encoding method in which we split the whole input data stream into small blocks and replace the small block (Message) with another small block(Codeword).

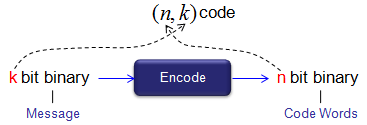

This process can be illustrated as shown below. The small block getting into the Encoding function is called a 'message' and the block getting out of the Encoding function is called 'Codeword'. We also express this process in a symbol (n,k). n is the number of bits for codeword(output) and k is the number of bits for message (input). n is always greater than k, meaning the length of output (Codeword) is always longer than the length of input(Message).

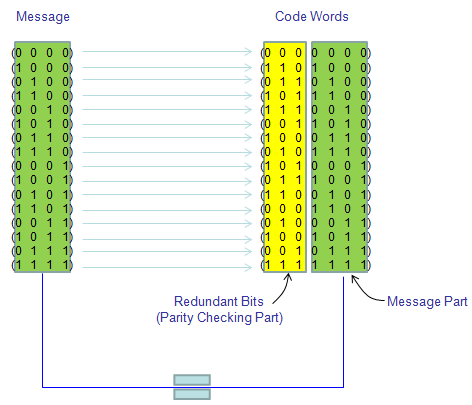

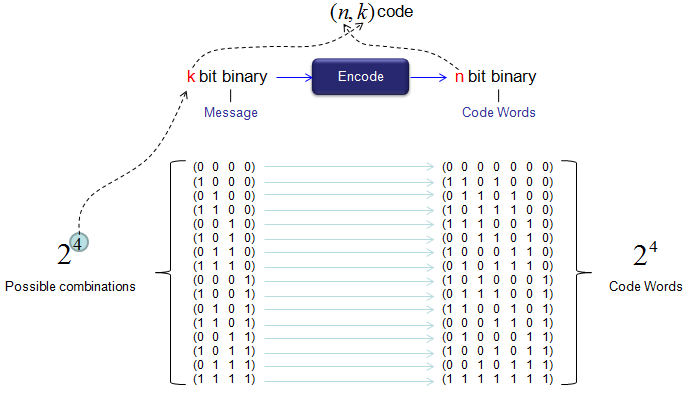

One example of block code is as shown below. In this example, we split the input data stream into 4 bit chunks and replace each of the chunks with 7 bit chunk. The mapping table between each possible 4 bit chunk(input = message) and 7 bit chunk(output = codeword) is shown below.







Meaning of 'Linear'

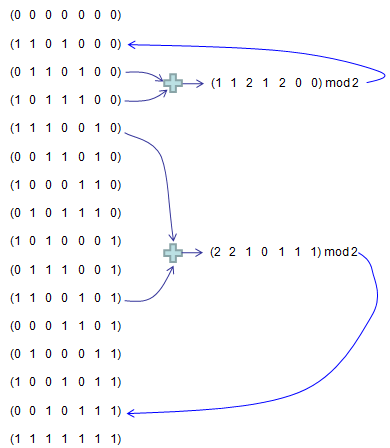

'Linear' when you say 'Linear Coding' means a set of code in which any linear combination (modular 2 sum) of two codes within the set results in a code which also belong to the original set. Let's assume that you have a set of codes as follows. Take out any two codes from the set and take modular 2 sum of them. The result is also a member of the set as shown below. Take any other two codes and try yourself.







Meaning of Cyclic



'Cyclic' is a set of code in which a code can be generated by cyclic shift of another code in the set. or in other word, any number of cyclic shift of a code in the set also fall within the set. For example, let's assume that we have a code set which is made up of following four codes. If you look into each of these codes, you would notice that any of these codes can be created by the cyclic shift of another code as illustrated below.

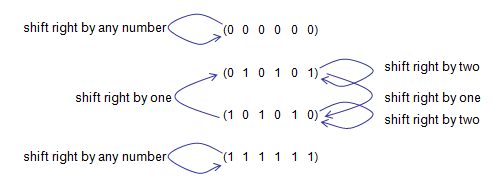

Take the code (0 1 0 1 0 1) and cyclic shift right by one and it gives (1 0 1 0 1 0) which is also a member of the set.

Take the code (0 1 0 1 0 1) and cyclic shift right by two and it gives (0 1 0 1 0 1) which is also a member of the set.

In short, in this set .. whatever code you take and however many times you do cyclic shift, the result is always within the original set.



Generation of Linear Block Code



Now you may ask "how can I create a mapping table as shown above ?".

The simple answer would be "You can create it in any way as you like ?".

Really, Is it true ? Can I use any arbitrary mapping table as pops up in my mind now ?

Yes, you can. but it doesn't mean that what you created in arbitrary way would be 'efficient' mapping (coding).

Then what would be the efficient coding ? There may be multiple answers to this, but some common answer would be

  • Capability of detecting/correcting with minimum number of redundancy bits.
  • Easy of implementatione





Generation By Generation Matrix



One of the way to perform coding is to use what is called 'Generator Function'. You might come across this term in any kind of materials related to 'Coding'. My first response when I first heard of this function was 'What the hell, is it ?'. Is it something like those functions that we learned in high school ? It looks similar to what we learned in high school days.. e.g, g(x) = x^4 + x^2 + 1, but the way they are used looks pretty different from high school.

My next question was "Why they call it 'Generator Function' ?".

I would not try to give you answer to these question here.. you will get it as you proceed. What I am trying to say is "Don't feel yourself as stupid if you have the same questions" -:).

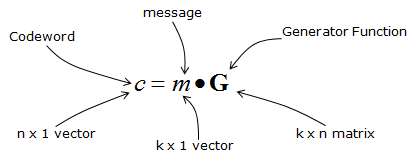

Generator Function is a kind of 'Binary Function' which can perform 'coding' (Convering a message to a codeword) in following manner.

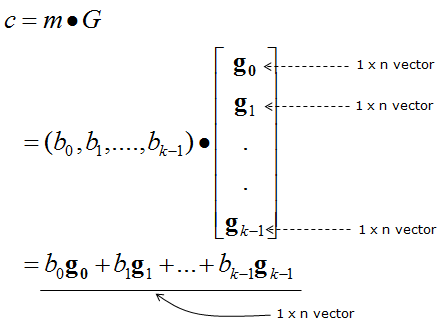

Expressing the equation in more detailed form, it can be expressed as shown below.





The best way to understand the real meaning of the equation above would be by example. Here goes one example.

Let's suppose you have four generating functions

    g1(x) = 1 + 1 x + 0 x^2 + 1 x^3 + 0 x^4 + 0 x^6 + 0 x^7 = 1 + x + x^3

    g2(x) = 0 + 1 x + 1 x^2 + 0 x^3 + 1 x^4 + 0 x^6 + 0 x^7 = 0 + x + x^2 + x^4

    g3(x) = 1 + 1 x + 1 x^2 + 0 x^3 + 0 x^4 + 1 x^6 + 0 x^7 = 1 + x + x^2 + x^6

    g4(x) = 1 + 0 x + 1 x^2 + 0 x^3 + 0 x^4 + 0 x^6 + 1 x^7 = 1 + x + x^2 + x^7

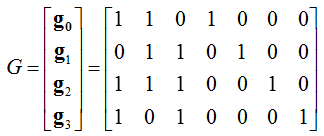

you can pack these equations into a matrix as shown below. (Note that the lowest order comes leftmost).





Let's suppose you have a message as shown below.



m = (1  1  0  1)

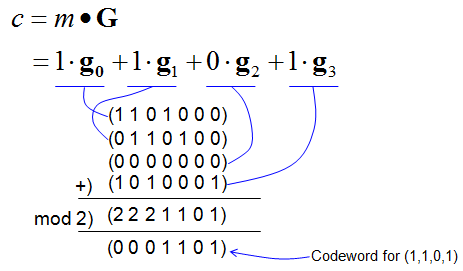

Now, let's figure out codeword for this message (figure out the output bit stream when this message go through the encoder block). This is the point where we use the generator function shown above. The process to calculate the codeword using the generator function is as shown below.





For practice, try all the messages shown in overview section and check if your calculation matches the codewords in the section.

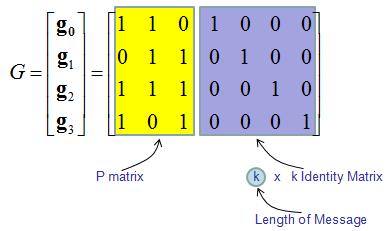

Now let's take a high level view of generator function (generator matrix) and see if there is any recognizable pattern. It is as shown below.

You may notice followings right away.

    i) The number of rows is same as the length of message (number of bits in message)

    ii) The matrix contains the k x k Identity matrix, where k is the length of the message



Now you would ask another again. How can I get these generator functions ? (How can I know which generator functions I have to use ?). Don't worry.. in most case these functions/matrix will be given to you from the specification of the communication system. (Of course, there is theoretical background that justifies those generator functions given by the specification and you can refer to Communication Text Books or surf on internet for it. I would not get further into it). In think, just understanding the meaning of the generator functions and how to use them to implement 'encoder' block would be enough in most case.



Now let's look into the codebook we generated from higher level. As shown below, you would notice that the codebook contains the message part as it is at the end and redundant bits at the beginning. This is one of the characteristics of what we call 'linear block coding'.

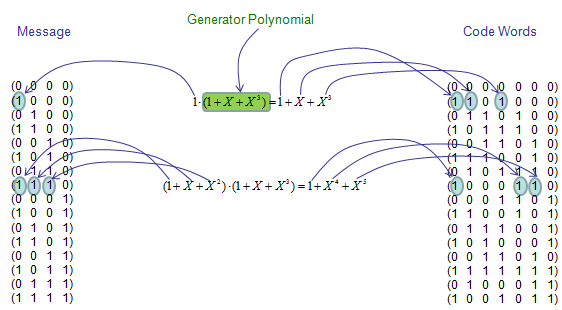

Generation by Generator Polynomial







Convolutional Code



It is hard to cleary explain what is the convolutional code is, but you would get a rough image if you think about the 'convolution' that you learned in your engineering math.



One important criteria for convolutional code would be

  • Each bit on output stream is influenced not only by the current input bit but also influenced by the previous output bits.



How to represent convolutional coding process ?



Representing the convolutional coding process is not simple and clearly explained in short space. So I created a separate page for this(See ConvolutionalCode page).





Reference :



[1]  Lec 2 | MIT 6.450 Principles of Digital Communications I, Fall 2006 (YouTube) )

[2] SIMULATION OF DIGITAL COMMUNICATION SYSTEMS USING MATLAB By Mathuranathan Viswanathan
