LTE-NB : Channel Structure



As you may easily guess, LTE-NB has simpler than legacy LTE as illustrated below (Simple but not extremely simpler than legacy LTE. It is almost same structure as Release 8 legacy channel structure).

Followings are illustrated summary of 36.212 - 6.1 Mapping to physical channels and 36.211-10.1.1 Overview.



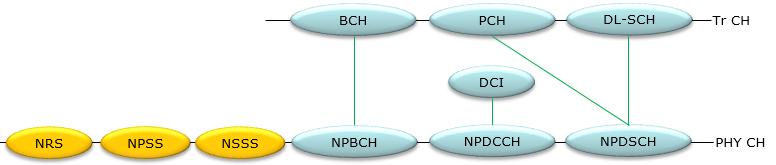

< Downlink >

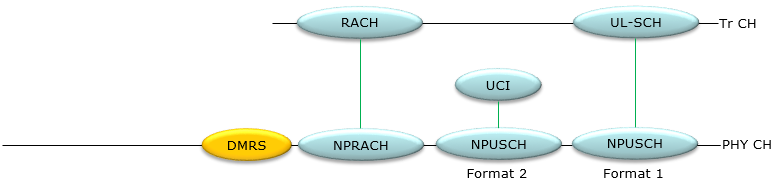

< Uplink >





NOTE : No PUCCH in NB-LTE. UCI information in NB LTE is also carried by NPUSCH
