RRC IE - antennaInfo



| | +-antennaInfo ::= CHOICE [explicitValue] OPTIONAL:Exist

| | | +-explicitValue ::= SEQUENCE [1]

| | |   +-transmissionMode ::= ENUMERATED [tm4]

| | |   +-codebookSubsetRestriction ::= CHOICE [n2TxAntenna-tm4] OPTIONAL:Exist

| | |   | +-n2TxAntenna-tm4 ::= BIT STRING SIZE(6) [111111]

| | |   +-ue-TransmitAntennaSelection ::= CHOICE [setup]

| | |     +-setup ::= ENUMERATED [closedLoop]

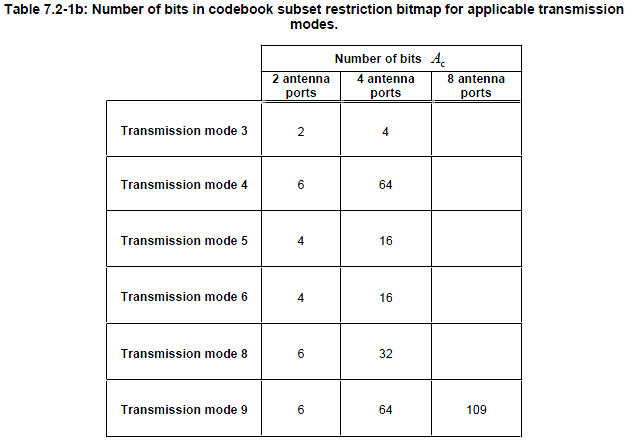

The number of CodebookSubsetRestriction bits are defined in 36.213 as follows.

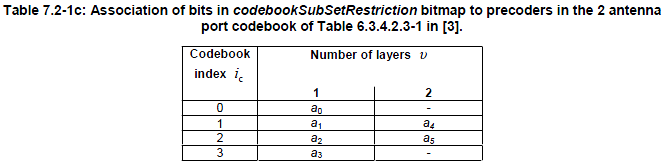

When the number of Antenna is 2, the meaning of each bit is defined in 36.213 as follows.
