Radio Bearer - Rel 6







This page is described with 34.108 section 6.10.2.4.6.5 as a frame.





Streaming or interactive or background / UL:[max bit rate depending on UE category and TTI] DL: [max bit rate depending on UE category] kbps / PS RAB + Streaming or interactive or background / UL: [max bit rate depending on UE category and TTI] DL: [max bit rate depending on UE category] / PS RAB + UL:[max bit rate depending on UE category and TTI] DL:3.4 kbps SRBs for DCCH on E-DCH and DL DCH





Uplink Transport Channel

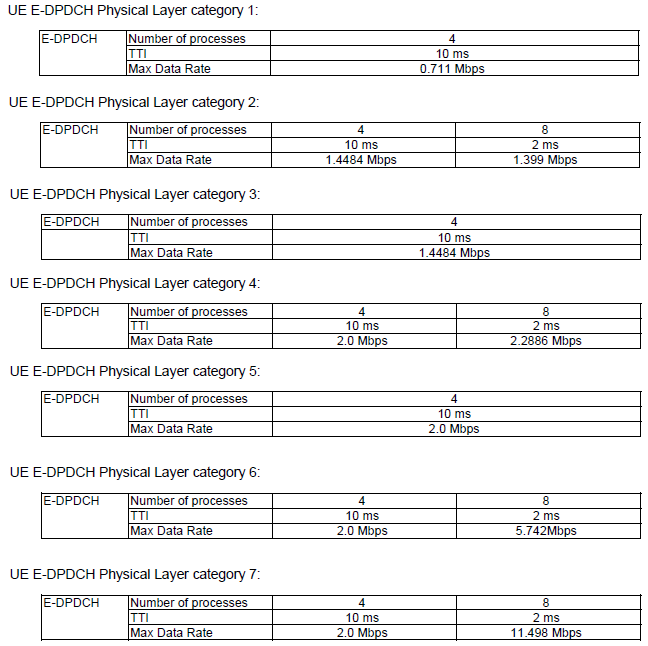

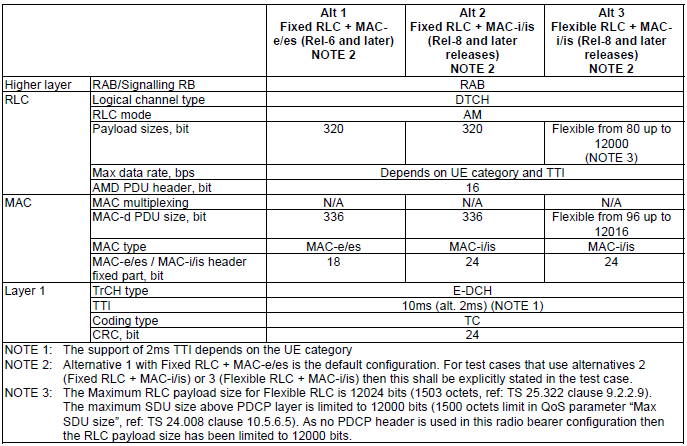

This tables is from 34.108 6.10.2.4.6.1.1.1.1.1 MAC-d flow parameters for Streaming or interactive or background / UL: [max bit rate depending on UE category and TTI] / PS RAB







Uplink Physical Channel







Downlink Transport Channel

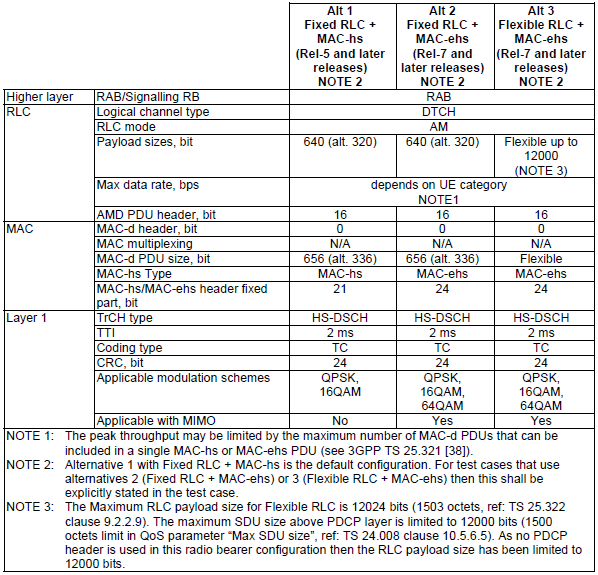

< Transport Channel for HS-DSCH 34-108 - 6.10.2.4.5.6.2.1.1.1>

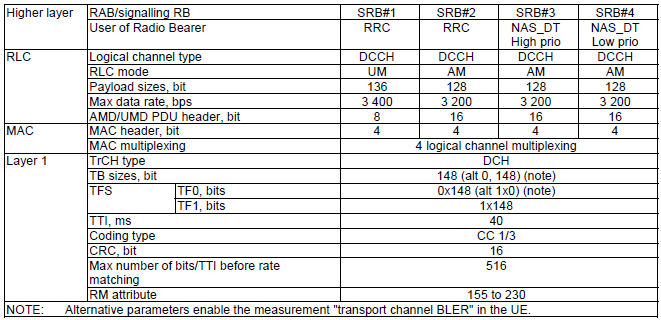

< Transport Channel for DCH - 34.108 6.10.2.4.1.2.2.1.1 >





< TFCI - 34.108 6.10.2.4.1.2.2.1.2 >

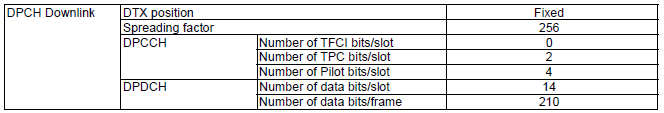

< TFCI - 34.108 6.10.2.4.1.2.2.2.2 >





RRC Connection Setup



DL-CCCH-Message ::= SEQUENCE [0]

  +-integrityCheckInfo ::= SEQUENCE OPTIONAL:Omit

  +-message ::= CHOICE [rrcConnectionSetup]

    +-rrcConnectionSetup ::= CHOICE [later-than-r3]

      +-later-than-r3 ::= SEQUENCE

        +-initialUE-Identity ::= CHOICE [imsi]

        +-rrc-TransactionIdentifier ::= INTEGER (0..3) [0]

        +-criticalExtensions ::= CHOICE [criticalExtensions]

          +-criticalExtensions ::= CHOICE [criticalExtensions]

            +-criticalExtensions ::= CHOICE [r6]

              +-r6 ::= SEQUENCE [00]

                +-rrcConnectionSetup-r6 ::= SEQUENCE [0000010010011]

                | +-activationTime ::= INTEGER OPTIONAL:Omit

                | +-new-U-RNTI ::= SEQUENCE

                | +-new-c-RNTI ::= BIT STRING OPTIONAL:Omit

                | +-new-H-RNTI ::= BIT STRING OPTIONAL:Omit

                | +-newPrimary-E-RNTI ::= BIT STRING OPTIONAL:Omit

                | +-newSecondary-E-RNTI ::= BIT STRING OPTIONAL:Omit

                | +-rrc-StateIndicator ::= ENUMERATED [cell-DCH]

                | +-utran-DRX-CycleLengthCoeff ::= INTEGER (3..9) [8]

                | +-capabilityUpdateRequirement ::= SEQUENCE [0] OPTIONAL:Exist

                | +-specificationMode ::= CHOICE [complete]

                | | +-complete ::= SEQUENCE [1111]

                | |   +-srb-InformationSetupList ::= SEQUENCE OF SIZE(3..4) [4]

                | |   +-ul-CommonTransChInfo ::= SEQUENCE [0010] OPTIONAL:Exist

                | |   +-ul-AddReconfTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCH[32]) [1] OPTIONAL:Exist

                | |   +-dl-CommonTransChInfo ::= SEQUENCE [01] OPTIONAL:Exist

                | |   +-dl-AddReconfTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCHpreconf[32]) [1]

                | +-frequencyInfo ::= SEQUENCE OPTIONAL:Omit

                | +-maxAllowedUL-TX-Power ::= INTEGER OPTIONAL:Omit

                | +-ul-DPCH-Info ::= SEQUENCE [1] OPTIONAL:Exist

                | +-ul-EDCH-Information ::= SEQUENCE OPTIONAL:Omit

                | +-dl-HSPDSCH-Information ::= SEQUENCE OPTIONAL:Omit

                | +-dl-CommonInformation ::= SEQUENCE [100] OPTIONAL:Exist

                | +-dl-InformationPerRL-List ::= SEQUENCE OF SIZE(1..maxRL[8]) [1] OPTIONAL:Exist

                +-rrcConnectionSetup-r6-add-ext ::= BIT STRING OPTIONAL:Omit

                +-v6b0NonCriticalExtensions ::= SEQUENCE OPTIONAL:Omit





SRB-InformationSetup-r6 - RRC Connection Setup



+-srb-InformationSetupList ::= SEQUENCE OF SIZE(3..4) [4]

| +-SRB-InformationSetup-r6 ::= SEQUENCE [1] // This is for DCCH 0

| | +-rb-Identity ::= INTEGER (1..32) [1] OPTIONAL:Exist

| +-SRB-InformationSetup-r6 ::= SEQUENCE [1] // This is for DCCH 1

| | +-rb-Identity ::= INTEGER (1..32) [2] OPTIONAL:Exist

| +-SRB-InformationSetup-r6 ::= SEQUENCE [1] // This is for DCCH 2

| | +-rb-Identity ::= INTEGER (1..32) [3] OPTIONAL:Exist

| +-SRB-InformationSetup-r6 ::= SEQUENCE [1] // This is for DCCH 3

| | +-rb-Identity ::= INTEGER (1..32) [4] OPTIONAL:Exist





+-srb-InformationSetupList ::= SEQUENCE OF SIZE(3..4) [4]

| +-SRB-InformationSetup-r6 ::= SEQUENCE [1] // This is for DCCH 0

| | +-rb-Identity ::= INTEGER (1..32) [1] OPTIONAL:Exist

| | +-rlc-InfoChoice ::= CHOICE [rlc-Info]

| | | +-rlc-Info ::= SEQUENCE [110]

| | |   +-ul-RLC-Mode ::= CHOICE [ul-UM-RLC-Mode] OPTIONAL:Exist

| | |   | +-ul-UM-RLC-Mode ::= SEQUENCE [0]

| | |   |   +-transmissionRLC-Discard ::= CHOICE OPTIONAL:Omit

| | |   +-dl-RLC-Mode ::= CHOICE [dl-UM-RLC-Mode] OPTIONAL:Exist

| | |   | +-dl-UM-RLC-Mode ::= SEQUENCE [0]

| | |   |   +-dl-UM-RLC-LI-size ::= ENUMERATED [size7]

| | |   |   +-dl-Reception-Window-Size ::= ENUMERATED OPTIONAL:Omit

| | |   +-rlc-OneSidedReEst ::= BOOLEAN [FALSE]

| | |   +-altE-bitInterpretation ::= ENUMERATED OPTIONAL:Omit

| | +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [2]

| |   +-RB-MappingOption-r6 ::= SEQUENCE [11]

| |   | +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

| |   | | +-oneLogicalChannel ::= SEQUENCE

| |   | |   +-ul-TrCH-Type ::= CHOICE [dch-rach-usch]

| |   | |   | +-dch-rach-usch ::= SEQUENCE [1]

| |   | |   |   +-ul-TransportChannelType ::= CHOICE [dch]

| |   | |   |   | +-dch ::= INTEGER (1..32) [31]  // This is Transport channel Number

| |   | |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [1] OPTIONAL:Exist

| |   | |   |   +-rlc-SizeList ::= CHOICE [configured]

| |   | |   |     +-configured ::= NULL

| |   | |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [2]

| |   | +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

| |   |   +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

| |   |     +-dl-TransportChannelType ::= CHOICE [dch]

| |   |     | +-dch ::= INTEGER (1..32) [31]

| |   |     +-logicalChannelIdentity ::= INTEGER (1..15) [1] OPTIONAL:Exist

| |   +-RB-MappingOption-r6 ::= SEQUENCE [11]

| |     +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

| |     | +-oneLogicalChannel ::= SEQUENCE

| |     |   +-ul-TrCH-Type ::= CHOICE [dch-rach-usch]

| |     |   | +-dch-rach-usch ::= SEQUENCE [1]

| |     |   |   +-ul-TransportChannelType ::= CHOICE [rach]

| |     |   |   | +-rach ::= NULL

| |     |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [1] OPTIONAL:Exist

| |     |   |   +-rlc-SizeList ::= CHOICE [explicitList]

| |     |   |     +-explicitList ::= SEQUENCE OF SIZE(1..maxTF[32]) [1]

| |     |   |       +-RLC-SizeInfo ::= SEQUENCE

| |     |   |         +-rlc-SizeIndex ::= INTEGER (1..maxTF[32]) [1]

| |     |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [1]

| |     +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

| |       +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

| |         +-dl-TransportChannelType ::= CHOICE [fach]

| |         | +-fach ::= NULL

| |         +-logicalChannelIdentity ::= INTEGER (1..15) [1] OPTIONAL:Exist

| +-SRB-InformationSetup-r6 ::= SEQUENCE [1] // This is for DCCH 1

| | +-rb-Identity ::= INTEGER (1..32) [2] OPTIONAL:Exist

| | +-rlc-InfoChoice ::= CHOICE [rlc-Info]

| | | +-rlc-Info ::= SEQUENCE [110]

| | |   +-ul-RLC-Mode ::= CHOICE [ul-AM-RLC-Mode] OPTIONAL:Exist

| | |   | +-ul-AM-RLC-Mode ::= SEQUENCE [1]

| | |   |   +-transmissionRLC-Discard ::= CHOICE [noDiscard]

| | |   |   | +-noDiscard ::= ENUMERATED [dat10]

| | |   |   +-transmissionWindowSize ::= ENUMERATED [tw128]

| | |   |   +-timerRST ::= ENUMERATED [tr550]

| | |   |   +-max-RST ::= ENUMERATED [rst1]

| | |   |   +-pollingInfo ::= SEQUENCE [010110] OPTIONAL:Exist

| | |   |     +-timerPollProhibit ::= ENUMERATED OPTIONAL:Omit

| | |   |     +-timerPoll ::= ENUMERATED [tp500] OPTIONAL:Exist

| | |   |     +-poll-PDU ::= ENUMERATED OPTIONAL:Omit

| | |   |     +-poll-SDU ::= ENUMERATED [sdu1] OPTIONAL:Exist

| | |   |     +-lastTransmissionPDU-Poll ::= BOOLEAN [TRUE]

| | |   |     +-lastRetransmissionPDU-Poll ::= BOOLEAN [TRUE]

| | |   |     +-pollWindow ::= ENUMERATED [pw50] OPTIONAL:Exist

| | |   |     +-timerPollPeriodic ::= ENUMERATED OPTIONAL:Omit

| | |   +-dl-RLC-Mode ::= CHOICE [dl-AM-RLC-Mode] OPTIONAL:Exist

| | |   | +-dl-AM-RLC-Mode ::= SEQUENCE

| | |   |   +-dl-RLC-PDU-size ::= CHOICE [sizeType1]

| | |   |   | +-sizeType1 ::= INTEGER (0..31) [16]

| | |   |   +-inSequenceDelivery ::= BOOLEAN [TRUE]

| | |   |   +-receivingWindowSize ::= ENUMERATED [rw128]

| | |   |   +-dl-RLC-StatusInfo ::= SEQUENCE [100]

| | |   |     +-timerStatusProhibit ::= ENUMERATED [tsp120] OPTIONAL:Exist

| | |   |     +-dummy ::= ENUMERATED OPTIONAL:Omit

| | |   |     +-missingPDU-Indicator ::= BOOLEAN [TRUE]

| | |   |     +-timerStatusPeriodic ::= ENUMERATED OPTIONAL:Omit

| | |   +-rlc-OneSidedReEst ::= BOOLEAN [FALSE]

| | |   +-altE-bitInterpretation ::= ENUMERATED OPTIONAL:Omit

| | +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [2]

| |   +-RB-MappingOption-r6 ::= SEQUENCE [11]

| |   | +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

| |   | | +-oneLogicalChannel ::= SEQUENCE

| |   | |   +-ul-TrCH-Type ::= CHOICE [dch-rach-usch]

| |   | |   | +-dch-rach-usch ::= SEQUENCE [1]

| |   | |   |   +-ul-TransportChannelType ::= CHOICE [dch]

| |   | |   |   | +-dch ::= INTEGER (1..32) [31] // This is Transport channel Number

| |   | |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [2] OPTIONAL:Exist

| |   | |   |   +-rlc-SizeList ::= CHOICE [configured]

| |   | |   |     +-configured ::= NULL

| |   | |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [2]

| |   | +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

| |   |   +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

| |   |     +-dl-TransportChannelType ::= CHOICE [dch]

| |   |     | +-dch ::= INTEGER (1..32) [31] // This is Transport channel Number

| |   |     +-logicalChannelIdentity ::= INTEGER (1..15) [2] OPTIONAL:Exist

| |   +-RB-MappingOption-r6 ::= SEQUENCE [11]

| |     +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

| |     | +-oneLogicalChannel ::= SEQUENCE

| |     |   +-ul-TrCH-Type ::= CHOICE [dch-rach-usch]

| |     |   | +-dch-rach-usch ::= SEQUENCE [1]

| |     |   |   +-ul-TransportChannelType ::= CHOICE [rach]

| |     |   |   | +-rach ::= NULL

| |     |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [2] OPTIONAL:Exist

| |     |   |   +-rlc-SizeList ::= CHOICE [explicitList]

| |     |   |     +-explicitList ::= SEQUENCE OF SIZE(1..maxTF[32]) [1]

| |     |   |       +-RLC-SizeInfo ::= SEQUENCE

| |     |   |         +-rlc-SizeIndex ::= INTEGER (1..maxTF[32]) [1]

| |     |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [2]

| |     +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

| |       +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

| |         +-dl-TransportChannelType ::= CHOICE [fach]

| |         | +-fach ::= NULL

| |         +-logicalChannelIdentity ::= INTEGER (1..15) [2] OPTIONAL:Exist

| +-SRB-InformationSetup-r6 ::= SEQUENCE [1] // This is for DCCH 2

| | +-rb-Identity ::= INTEGER (1..32) [3] OPTIONAL:Exist

| | +-rlc-InfoChoice ::= CHOICE [rlc-Info]

| | | +-rlc-Info ::= SEQUENCE [110]

| | |   +-ul-RLC-Mode ::= CHOICE [ul-AM-RLC-Mode] OPTIONAL:Exist

| | |   | +-ul-AM-RLC-Mode ::= SEQUENCE [1]

| | |   |   +-transmissionRLC-Discard ::= CHOICE [noDiscard]

| | |   |   | +-noDiscard ::= ENUMERATED [dat10]

| | |   |   +-transmissionWindowSize ::= ENUMERATED [tw128]

| | |   |   +-timerRST ::= ENUMERATED [tr550]

| | |   |   +-max-RST ::= ENUMERATED [rst4]

| | |   |   +-pollingInfo ::= SEQUENCE [010110] OPTIONAL:Exist

| | |   |     +-timerPollProhibit ::= ENUMERATED OPTIONAL:Omit

| | |   |     +-timerPoll ::= ENUMERATED [tp310] OPTIONAL:Exist

| | |   |     +-poll-PDU ::= ENUMERATED OPTIONAL:Omit

| | |   |     +-poll-SDU ::= ENUMERATED [sdu1] OPTIONAL:Exist

| | |   |     +-lastTransmissionPDU-Poll ::= BOOLEAN [TRUE]

| | |   |     +-lastRetransmissionPDU-Poll ::= BOOLEAN [TRUE]

| | |   |     +-pollWindow ::= ENUMERATED [pw70] OPTIONAL:Exist

| | |   |     +-timerPollPeriodic ::= ENUMERATED OPTIONAL:Omit

| | |   +-dl-RLC-Mode ::= CHOICE [dl-AM-RLC-Mode] OPTIONAL:Exist

| | |   | +-dl-AM-RLC-Mode ::= SEQUENCE

| | |   |   +-dl-RLC-PDU-size ::= CHOICE [sizeType1]

| | |   |   | +-sizeType1 ::= INTEGER (0..31) [16]

| | |   |   +-inSequenceDelivery ::= BOOLEAN [TRUE]

| | |   |   +-receivingWindowSize ::= ENUMERATED [rw128]

| | |   |   +-dl-RLC-StatusInfo ::= SEQUENCE [100]

| | |   |     +-timerStatusProhibit ::= ENUMERATED [tsp120] OPTIONAL:Exist

| | |   |     +-dummy ::= ENUMERATED OPTIONAL:Omit

| | |   |     +-missingPDU-Indicator ::= BOOLEAN [TRUE]

| | |   |     +-timerStatusPeriodic ::= ENUMERATED OPTIONAL:Omit

| | |   +-rlc-OneSidedReEst ::= BOOLEAN [FALSE]

| | |   +-altE-bitInterpretation ::= ENUMERATED OPTIONAL:Omit

| | +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [2]

| |   +-RB-MappingOption-r6 ::= SEQUENCE [11]

| |   | +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

| |   | | +-oneLogicalChannel ::= SEQUENCE

| |   | |   +-ul-TrCH-Type ::= CHOICE [dch-rach-usch]

| |   | |   | +-dch-rach-usch ::= SEQUENCE [1]

| |   | |   |   +-ul-TransportChannelType ::= CHOICE [dch]

| |   | |   |   | +-dch ::= INTEGER (1..32) [31]

| |   | |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [3] OPTIONAL:Exist

| |   | |   |   +-rlc-SizeList ::= CHOICE [configured]

| |   | |   |     +-configured ::= NULL

| |   | |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [5]

| |   | +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

| |   |   +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

| |   |     +-dl-TransportChannelType ::= CHOICE [dch]

| |   |     | +-dch ::= INTEGER (1..32) [31]

| |   |     +-logicalChannelIdentity ::= INTEGER (1..15) [3] OPTIONAL:Exist

| |   +-RB-MappingOption-r6 ::= SEQUENCE [11]

| |     +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

| |     | +-oneLogicalChannel ::= SEQUENCE

| |     |   +-ul-TrCH-Type ::= CHOICE [dch-rach-usch]

| |     |   | +-dch-rach-usch ::= SEQUENCE [1]

| |     |   |   +-ul-TransportChannelType ::= CHOICE [rach]

| |     |   |   | +-rach ::= NULL

| |     |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [3] OPTIONAL:Exist

| |     |   |   +-rlc-SizeList ::= CHOICE [explicitList]

| |     |   |     +-explicitList ::= SEQUENCE OF SIZE(1..maxTF[32]) [1]

| |     |   |       +-RLC-SizeInfo ::= SEQUENCE

| |     |   |         +-rlc-SizeIndex ::= INTEGER (1..maxTF[32]) [1]

| |     |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [3]

| |     +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

| |       +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

| |         +-dl-TransportChannelType ::= CHOICE [fach]

| |         | +-fach ::= NULL

| |         +-logicalChannelIdentity ::= INTEGER (1..15) [3] OPTIONAL:Exist

| +-SRB-InformationSetup-r6 ::= SEQUENCE [1] // This is for DCCH 3

|   +-rb-Identity ::= INTEGER (1..32) [4] OPTIONAL:Exist

|   +-rlc-InfoChoice ::= CHOICE [rlc-Info]

|   | +-rlc-Info ::= SEQUENCE [110]

|   |   +-ul-RLC-Mode ::= CHOICE [ul-AM-RLC-Mode] OPTIONAL:Exist

|   |   | +-ul-AM-RLC-Mode ::= SEQUENCE [1]

|   |   |   +-transmissionRLC-Discard ::= CHOICE [noDiscard]

|   |   |   | +-noDiscard ::= ENUMERATED [dat10]

|   |   |   +-transmissionWindowSize ::= ENUMERATED [tw128]

|   |   |   +-timerRST ::= ENUMERATED [tr550]

|   |   |   +-max-RST ::= ENUMERATED [rst4]

|   |   |   +-pollingInfo ::= SEQUENCE [010110] OPTIONAL:Exist

|   |   |     +-timerPollProhibit ::= ENUMERATED OPTIONAL:Omit

|   |   |     +-timerPoll ::= ENUMERATED [tp310] OPTIONAL:Exist

|   |   |     +-poll-PDU ::= ENUMERATED OPTIONAL:Omit

|   |   |     +-poll-SDU ::= ENUMERATED [sdu1] OPTIONAL:Exist

|   |   |     +-lastTransmissionPDU-Poll ::= BOOLEAN [TRUE]

|   |   |     +-lastRetransmissionPDU-Poll ::= BOOLEAN [TRUE]

|   |   |     +-pollWindow ::= ENUMERATED [pw70] OPTIONAL:Exist

|   |   |     +-timerPollPeriodic ::= ENUMERATED OPTIONAL:Omit

|   |   +-dl-RLC-Mode ::= CHOICE [dl-AM-RLC-Mode] OPTIONAL:Exist

|   |   | +-dl-AM-RLC-Mode ::= SEQUENCE

|   |   |   +-dl-RLC-PDU-size ::= CHOICE [sizeType1]

|   |   |   | +-sizeType1 ::= INTEGER (0..31) [16]

|   |   |   +-inSequenceDelivery ::= BOOLEAN [TRUE]

|   |   |   +-receivingWindowSize ::= ENUMERATED [rw128]

|   |   |   +-dl-RLC-StatusInfo ::= SEQUENCE [100]

|   |   |     +-timerStatusProhibit ::= ENUMERATED [tsp120] OPTIONAL:Exist

|   |   |     +-dummy ::= ENUMERATED OPTIONAL:Omit

|   |   |     +-missingPDU-Indicator ::= BOOLEAN [TRUE]

|   |   |     +-timerStatusPeriodic ::= ENUMERATED OPTIONAL:Omit

|   |   +-rlc-OneSidedReEst ::= BOOLEAN [FALSE]

|   |   +-altE-bitInterpretation ::= ENUMERATED OPTIONAL:Omit

|   +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [2]

|     +-RB-MappingOption-r6 ::= SEQUENCE [11]

|     | +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

|     | | +-oneLogicalChannel ::= SEQUENCE

|     | |   +-ul-TrCH-Type ::= CHOICE [dch-rach-usch]

|     | |   | +-dch-rach-usch ::= SEQUENCE [1]

|     | |   |   +-ul-TransportChannelType ::= CHOICE [dch]

|     | |   |   | +-dch ::= INTEGER (1..32) [31]

|     | |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [4] OPTIONAL:Exist

|     | |   |   +-rlc-SizeList ::= CHOICE [configured]

|     | |   |     +-configured ::= NULL

|     | |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [6]

|     | +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

|     |   +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

|     |     +-dl-TransportChannelType ::= CHOICE [dch]

|     |     | +-dch ::= INTEGER (1..32) [31]

|     |     +-logicalChannelIdentity ::= INTEGER (1..15) [4] OPTIONAL:Exist

|     +-RB-MappingOption-r6 ::= SEQUENCE [11]

|       +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

|       | +-oneLogicalChannel ::= SEQUENCE

|       |   +-ul-TrCH-Type ::= CHOICE [dch-rach-usch]

|       |   | +-dch-rach-usch ::= SEQUENCE [1]

|       |   |   +-ul-TransportChannelType ::= CHOICE [rach]

|       |   |   | +-rach ::= NULL

|       |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [4] OPTIONAL:Exist

|       |   |   +-rlc-SizeList ::= CHOICE [explicitList]

|       |   |     +-explicitList ::= SEQUENCE OF SIZE(1..maxTF[32]) [1]

|       |   |       +-RLC-SizeInfo ::= SEQUENCE

|       |   |         +-rlc-SizeIndex ::= INTEGER (1..maxTF[32]) [1]

|       |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [4]

|       +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

|         +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

|           +-dl-TransportChannelType ::= CHOICE [fach]

|           | +-fach ::= NULL

|           +-logicalChannelIdentity ::= INTEGER (1..15) [4] OPTIONAL:Exist





ul-CommonTransChInfo - RRC Connection Setup





+-ul-CommonTransChInfo ::= SEQUENCE [0010] OPTIONAL:Exist

| +-tfc-Subset ::= CHOICE OPTIONAL:Omit

| +-prach-TFCS ::= CHOICE OPTIONAL:Omit

| +-modeSpecificInfo ::= CHOICE [fdd] OPTIONAL:Exist

| | +-fdd ::= SEQUENCE

| |   +-ul-TFCS ::= CHOICE [normalTFCI-Signalling]

| |     +-normalTFCI-Signalling ::= CHOICE [complete]

| |       +-complete ::= SEQUENCE

| |         +-ctfcSize ::= CHOICE [ctfc2Bit]

| |           +-ctfc2Bit ::= SEQUENCE OF SIZE(1..maxTFC[1024]) [2]

| |             +- ::= SEQUENCE [1]

| |             | +-ctfc2 ::= INTEGER (0..3) [0]

| |             | +-powerOffsetInformation ::= SEQUENCE [0] OPTIONAL:Exist

| |             |   +-gainFactorInformation ::= CHOICE [computedGainFactors]

| |             |   | +-computedGainFactors ::= INTEGER (0..3) [0]

| |             |   +-powerOffsetPp-m ::= INTEGER OPTIONAL:Omit

| |             +- ::= SEQUENCE [1]

| |               +-ctfc2 ::= INTEGER (0..3) [1]

| |               +-powerOffsetInformation ::= SEQUENCE [0] OPTIONAL:Exist

| |                 +-gainFactorInformation ::= CHOICE [signalledGainFactors]

| |                 | +-signalledGainFactors ::= SEQUENCE [1]

| |                 |   +-modeSpecificInfo ::= CHOICE [fdd]

| |                 |   | +-fdd ::= SEQUENCE

| |                 |   |   +-gainFactorBetaC ::= INTEGER (0..15) [8]

| |                 |   +-gainFactorBetaD ::= INTEGER (0..15) [15]

| |                 |   +-referenceTFC-ID ::= INTEGER (0..3) [0] OPTIONAL:Exist

| |                 +-powerOffsetPp-m ::= INTEGER OPTIONAL:Omit

| +-tfc-SubsetList ::= SEQUENCE OF OPTIONAL:Omit





ul-AddReconfTransChInfoList - RRC Connection Setup





+-ul-AddReconfTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCH[32]) [1] OPTIONAL:Exist

| +-UL-AddReconfTransChInformation-r6 ::= CHOICE [dch-usch]

|   +-dch-usch ::= SEQUENCE

|     +-ul-TransportChannelType ::= ENUMERATED [dch]

|     +-transportChannelIdentity ::= INTEGER (1..32) [31]

|     +-transportFormatSet ::= CHOICE [dedicatedTransChTFS]

|       +-dedicatedTransChTFS ::= SEQUENCE

|         +-tti ::= CHOICE [tti10]

|         | +-tti10 ::= SEQUENCE OF SIZE(1..maxTF[32]) [1]

|         |   +-DedicatedDynamicTF-Info ::= SEQUENCE

|         |     +-rlc-Size ::= CHOICE [octetModeType1]

|         |     | +-octetModeType1 ::= CHOICE [sizeType1]

|         |     |   +-sizeType1 ::= INTEGER (0..31) [16]

|         |     +-numberOfTbSizeList ::= SEQUENCE OF SIZE(1..maxTF[32]) [2]

|         |     | +-NumberOfTransportBlocks ::= CHOICE [zero]

|         |     | | +-zero ::= NULL

|         |     | +-NumberOfTransportBlocks ::= CHOICE [one]

|         |     |   +-one ::= NULL

|         |     +-logicalChannelList ::= CHOICE [allSizes]

|         |       +-allSizes ::= NULL

|         +-semistaticTF-Information ::= SEQUENCE

|           +-channelCodingType ::= CHOICE [convolutional]

|           | +-convolutional ::= ENUMERATED [third]

|           +-rateMatchingAttribute ::= INTEGER (1..hiRM[256]) [160]

|           +-crc-Size ::= ENUMERATED [crc16]





dl-CommonTransChInfo - RRC Connection Setup



+-dl-CommonTransChInfo ::= SEQUENCE [01] OPTIONAL:Exist

| +-sccpch-TFCS ::= CHOICE OPTIONAL:Omit

| +-modeSpecificInfo ::= CHOICE [fdd] OPTIONAL:Exist

|   +-fdd ::= SEQUENCE [1]

|     +-dl-Parameters ::= CHOICE [sameAsUL] OPTIONAL:Exist

|       +-sameAsUL ::= NULL





dl-AddReconfTransChInfoList - RRC Connection Setup



+-dl-AddReconfTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCHpreconf[32]) [1] OPTIONAL:Exist

  +-DL-AddReconfTransChInformation-r5 ::= SEQUENCE [1]

    +-dl-TransportChannelType ::= CHOICE [dch]

    | +-dch ::= INTEGER (1..32) [31]

    +-tfs-SignallingMode ::= CHOICE [sameAsULTrCH]

    | +-sameAsULTrCH ::= SEQUENCE

    |   +-ul-TransportChannelType ::= ENUMERATED [dch]

    |   +-ul-TransportChannelIdentity ::= INTEGER (1..32) [31]

    +-dch-QualityTarget ::= SEQUENCE OPTIONAL:Exist

      +-bler-QualityValue ::= INTEGER (-63..0) [-20]





ul-DPCH-Info - RRC Connection Setup



+-ul-DPCH-Info ::= SEQUENCE [1] OPTIONAL:Exist

| +-ul-DPCH-PowerControlInfo ::= CHOICE [fdd] OPTIONAL:Exist

| | +-fdd ::= SEQUENCE [000]

| |   +-dpcch-PowerOffset ::= INTEGER (-82..-3) [-30]

| |   +-pc-Preamble ::= INTEGER (0..7) [0]

| |   +-sRB-delay ::= INTEGER (0..7) [7]

| |   +-powerControlAlgorithm ::= CHOICE [algorithm1]

| |   | +-algorithm1 ::= INTEGER (0..1) [0]

| |   +-deltaACK ::= INTEGER OPTIONAL:Omit

| |   +-deltaNACK ::= INTEGER OPTIONAL:Omit

| |   +-ack-NACK-repetition-factor ::= INTEGER OPTIONAL:Omit

| |   +-harq-Preamble-Mode ::= INTEGER (0..1) [0]

| +-modeSpecificInfo ::= CHOICE [fdd]

|   +-fdd ::= SEQUENCE

|     +-scramblingCodeType ::= ENUMERATED [longSC]

|     +-scramblingCode ::= INTEGER (0..16777215) [0]

|     +-dpdchPresence ::= CHOICE [present]

|       +-present ::= SEQUENCE [10]

|         +-numberOfDPDCH ::= INTEGER (1..maxDPDCH-UL[6]) [1] OPTIONAL:Exist

|         +-spreadingFactor ::= ENUMERATED [sf64]

|         +-tfci-Existence ::= BOOLEAN [TRUE]

|         +-numberOfFBI-Bits ::= INTEGER OPTIONAL:Omit

|         +-puncturingLimit ::= ENUMERATED [pl1]





dl-CommonInformation - RRC Connection Setup



+-dl-CommonInformation ::= SEQUENCE [100] OPTIONAL:Exist

| +-dl-dpchInfoCommon ::= CHOICE [dl-DPCH-InfoCommon] OPTIONAL:Exist

| | +-dl-DPCH-InfoCommon ::= SEQUENCE [0]

| |   +-cfnHandling ::= CHOICE [initialise]

| |   | +-initialise ::= NULL

| |   +-modeSpecificInfo ::= CHOICE [fdd]

| |   | +-fdd ::= SEQUENCE [10]

| |   |   +-dl-DPCH-PowerControlInfo ::= SEQUENCE OPTIONAL:Exist

| |   |   | +-modeSpecificInfo ::= CHOICE [fdd]

| |   |   |   +-fdd ::= SEQUENCE

| |   |   |     +-dpc-Mode ::= ENUMERATED [singleTPC]

| |   |   +-powerOffsetPilot-pdpdch ::= INTEGER (0..24) [0]

| |   |   +-dl-rate-matching-restriction ::= SEQUENCE OPTIONAL:Omit

| |   |   +-spreadingFactorAndPilot ::= CHOICE [sfd128]

| |   |   | +-sfd128 ::= ENUMERATED [pb4]

| |   |   +-positionFixedOrFlexible ::= ENUMERATED [fixed]

| |   |   +-tfci-Existence ::= BOOLEAN [FALSE]

| |   +-mac-d-HFN-initial-value ::= BIT STRING OPTIONAL:Omit

| +-modeSpecificInfo ::= CHOICE [fdd]

| | +-fdd ::= SEQUENCE [101]

| |   +-defaultDPCH-OffsetValue ::= INTEGER (0..599) [0] OPTIONAL:Exist

| |   +-dpch-CompressedModeInfo ::= SEQUENCE OPTIONAL:Omit

| |   +-tx-DiversityMode ::= ENUMERATED [noDiversity] OPTIONAL:Exist

| +-mac-hsResetIndicator ::= ENUMERATED OPTIONAL:Omit

| +-postVerificationPeriod ::= ENUMERATED OPTIONAL:Omit



dl-InformationPerRL-List - RRC Connection Setup



+-dl-InformationPerRL-List ::= SEQUENCE OF SIZE(1..maxRL[8]) [1] OPTIONAL:Exist

  +-DL-InformationPerRL-r6 ::= SEQUENCE [10000]

    +-modeSpecificInfo ::= CHOICE [fdd]

    | +-fdd ::= SEQUENCE

    |   +-primaryCPICH-Info ::= SEQUENCE

    |   | +-primaryScramblingCode ::= INTEGER (0..511) [9]

    |   +-servingHSDSCH-RL-indicator ::= BOOLEAN [FALSE]

    |   +-servingEDCH-RL-indicator ::= BOOLEAN [FALSE]

    +-dl-dpchInfo ::= CHOICE [dl-DPCH-InfoPerRL] OPTIONAL:Exist

    | +-dl-DPCH-InfoPerRL ::= CHOICE [fdd]

    |   +-fdd ::= SEQUENCE [000]

    |     +-pCPICH-UsageForChannelEst ::= ENUMERATED [mayBeUsed]

    |     +-dpch-FrameOffset ::= INTEGER (0..149) [0]

    |     +-secondaryCPICH-Info ::= SEQUENCE OPTIONAL:Omit

    |     +-dl-ChannelisationCodeList ::= SEQUENCE OF SIZE(1..maxDPCH-DLchan[8]) [1]

    |     | +-DL-ChannelisationCode ::= SEQUENCE [00]

    |     |   +-secondaryScramblingCode ::= INTEGER OPTIONAL:Omit

    |     |   +-sf-AndCodeNumber ::= CHOICE [sf128]

    |     |   | +-sf128 ::= INTEGER (0..127) [30]

    |     |   +-scramblingCodeChange ::= ENUMERATED OPTIONAL:Omit

    |     +-tpc-CombinationIndex ::= INTEGER (0..5) [0]

    |     +-powerOffsetTPC-pdpdch ::= INTEGER OPTIONAL:Omit

    |     +-closedLoopTimingAdjMode ::= ENUMERATED OPTIONAL:Omit

    +-e-AGCH-Information ::= SEQUENCE OPTIONAL:Omit

    +-e-HICH-Info ::= CHOICE OPTIONAL:Omit

    +-e-RGCH-Info ::= CHOICE OPTIONAL:Omit

    +-cell-id ::= BIT STRING OPTIONAL:Omit





Radio Bearer Setup with One MAC-d Flow



DL-DCCH-Message ::= SEQUENCE [0]

  +-integrityCheckInfo ::= SEQUENCE OPTIONAL:Omit

  +-message ::= CHOICE [radioBearerSetup]

    +-radioBearerSetup ::= CHOICE [later-than-r3]

      +-later-than-r3 ::= SEQUENCE

        +-rrc-TransactionIdentifier ::= INTEGER (0..3) [0]

        +-criticalExtensions ::= CHOICE [criticalExtensions]

          +-criticalExtensions ::= CHOICE [criticalExtensions]

            +-criticalExtensions ::= CHOICE [r6]

              +-r6 ::= SEQUENCE [00]

                +-radioBearerSetup-r6 ::= SEQUENCE [00100011010000111110]

                | +-integrityProtectionModeInfo ::= SEQUENCE OPTIONAL:Omit

                | +-cipheringModeInfo ::= SEQUENCE OPTIONAL:Omit

                | +-activationTime ::= INTEGER (0..255) [0] OPTIONAL:Exist

                | +-new-U-RNTI ::= SEQUENCE OPTIONAL:Omit

                | +-new-C-RNTI ::= BIT STRING OPTIONAL:Omit

                | +-new-DSCH-RNTI ::= BIT STRING OPTIONAL:Omit

                | +-new-H-RNTI ::= BIT STRING SIZE(16) [0001001000110100] OPTIONAL:Exist

                | +-newPrimary-E-RNTI ::= BIT STRING SIZE(16) [0001001000110100] OPTIONAL:Exist

                | +-newSecondary-E-RNTI ::= BIT STRING OPTIONAL:Omit

                | +-rrc-StateIndicator ::= ENUMERATED [cell-DCH]

                | +-utran-DRX-CycleLengthCoeff ::= INTEGER (3..9) [8] OPTIONAL:Exist

                | +-ura-Identity ::= BIT STRING OPTIONAL:Omit

                | +-cn-InformationInfo ::= SEQUENCE OPTIONAL:Omit

                | +-specificationMode ::= CHOICE [complete]

                | | +-complete ::= SEQUENCE [0100100111101]

                | |   +-srb-InformationSetupList ::= SEQUENCE OF OPTIONAL:Omit

                | |   +-rab-InformationSetupList ::= SEQUENCE OF SIZE(1..maxRABsetup[16]) [1] OPTIONAL:Exist

                | |   +-rab-InformationReconfigList ::= SEQUENCE OF OPTIONAL:Omit

                | |   +-rb-InformationReconfigList ::= SEQUENCE OF OPTIONAL:Omit

                | |   +-rb-InformationAffectedList ::= SEQUENCE OF SIZE(1..maxRB[32]) [4] OPTIONAL:Exist

                | |   +-dl-CounterSynchronisationInfo ::= SEQUENCE OPTIONAL:Omit

                | |   +-pdcp-ROHC-TargetMode ::= ENUMERATED OPTIONAL:Omit

                | |   +-ul-CommonTransChInfo ::= SEQUENCE [0010] OPTIONAL:Exist

                | |   +-ul-deletedTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCH[32]) [1] OPTIONAL:Exist

                | |   +-ul-AddReconfTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCH[32]) [1] OPTIONAL:Exist

                | |   +-dl-CommonTransChInfo ::= SEQUENCE [01] OPTIONAL:Exist

                | |   +-dl-DeletedTransChInfoList ::= SEQUENCE OF OPTIONAL:Omit

                | |   +-dl-AddReconfTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCHpreconf[32]) [2]

                | +-frequencyInfo ::= SEQUENCE OPTIONAL:Omit

                | +-maxAllowedUL-TX-Power ::= INTEGER OPTIONAL:Omit

                | +-ul-DPCH-Info ::= SEQUENCE [1] OPTIONAL:Exist

                | +-ul-EDCH-Information ::= SEQUENCE [1111] OPTIONAL:Exist

                | +-dl-HSPDSCH-Information ::= SEQUENCE [11] OPTIONAL:Exist

                | +-dl-CommonInformation ::= SEQUENCE [110] OPTIONAL:Exist

                | +-dl-InformationPerRL-List ::= SEQUENCE OF SIZE(1..maxRL[8]) [1] OPTIONAL:Exist

                | +-mbms-PL-ServiceRestrictInfo ::= ENUMERATED OPTIONAL:Omit

                +-radioBearerSetup-r6-add-ext ::= BIT STRING OPTIONAL:Omit

                +-v6b0NonCriticalExtensions ::= SEQUENCE OPTIONAL:Omit





rab-InformationSetupList - 1 MAC-d Flow



+-rab-InformationSetupList ::= SEQUENCE OF SIZE(1..maxRABsetup[16]) [1] OPTIONAL:Exist

| +-RAB-InformationSetup-r6 ::= SEQUENCE

|   +-rab-Info ::= SEQUENCE [00]

|   +-rb-InformationSetupList ::= SEQUENCE OF SIZE(1..maxRBperRAB[8]) [1]

|     +-RB-InformationSetup-r6 ::= SEQUENCE [0]

|       +-rb-Identity ::= INTEGER (1..32) [8]

|       +-pdcp-Info ::= SEQUENCE OPTIONAL:Omit

|       +-rlc-InfoChoice ::= CHOICE [rlc-Info]

|       | +-rlc-Info ::= SEQUENCE [110]

|       |   +-ul-RLC-Mode ::= CHOICE [ul-AM-RLC-Mode] // RLC Configuration for UL

|       |   +-dl-RLC-Mode ::= CHOICE [dl-AM-RLC-Mode] // RLC Configuration for DL

|       |   +-rlc-OneSidedReEst ::= BOOLEAN [FALSE]

|       |   +-altE-bitInterpretation ::= ENUMERATED OPTIONAL:Omit

|       +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [1]

|         +-RB-MappingOption-r6 ::= SEQUENCE [11]

|           +-ul-LogicalChannelMappings ::= [oneLogicalChannel] // Mapping between E-DCH and Logical Channel

|           +-dl-LogicalChannelMappingList ::= [1] // Mapping between HSDSCH and Logical Channel



If you extend all the information elements, you got following.



+-rab-InformationSetupList ::= SEQUENCE OF SIZE(1..maxRABsetup[16]) [1] OPTIONAL:Exist

| +-RAB-InformationSetup-r6 ::= SEQUENCE

|   +-rab-Info ::= SEQUENCE [00]

|   | +-rab-Identity ::= CHOICE [gsm-MAP-RAB-Identity]

|   | | +-gsm-MAP-RAB-Identity ::= BIT STRING SIZE(8) [00000000]

|   | +-mbms-SessionIdentity ::= OCTET STRING OPTIONAL:Omit

|   | +-cn-DomainIdentity ::= ENUMERATED [ps-domain]

|   | +-nas-Synchronisation-Indicator ::= BIT STRING OPTIONAL:Omit

|   | +-re-EstablishmentTimer ::= ENUMERATED [useT315]

|   +-rb-InformationSetupList ::= SEQUENCE OF SIZE(1..maxRBperRAB[8]) [1]

|     +-RB-InformationSetup-r6 ::= SEQUENCE [0]

|       +-rb-Identity ::= INTEGER (1..32) [8]

|       +-pdcp-Info ::= SEQUENCE OPTIONAL:Omit

|       +-rlc-InfoChoice ::= CHOICE [rlc-Info]

|       | +-rlc-Info ::= SEQUENCE [110]

|       |   +-ul-RLC-Mode ::= CHOICE [ul-AM-RLC-Mode] OPTIONAL:Exist

|       |   | +-ul-AM-RLC-Mode ::= SEQUENCE [1]

|       |   |   +-transmissionRLC-Discard ::= CHOICE [noDiscard]

|       |   |   | +-noDiscard ::= ENUMERATED [dat10]

|       |   |   +-transmissionWindowSize ::= ENUMERATED [tw2047]

|       |   |   +-timerRST ::= ENUMERATED [tr1000]

|       |   |   +-max-RST ::= ENUMERATED [rst12]

|       |   |   +-pollingInfo ::= SEQUENCE [000100] OPTIONAL:Exist

|       |   |     +-timerPollProhibit ::= ENUMERATED OPTIONAL:Omit

|       |   |     +-timerPoll ::= ENUMERATED OPTIONAL:Omit

|       |   |     +-poll-PDU ::= ENUMERATED OPTIONAL:Omit

|       |   |     +-poll-SDU ::= ENUMERATED [sdu1] OPTIONAL:Exist

|       |   |     +-lastTransmissionPDU-Poll ::= BOOLEAN [TRUE]

|       |   |     +-lastRetransmissionPDU-Poll ::= BOOLEAN [TRUE]

|       |   |     +-pollWindow ::= ENUMERATED OPTIONAL:Omit

|       |   |     +-timerPollPeriodic ::= ENUMERATED OPTIONAL:Omit

|       |   +-dl-RLC-Mode ::= CHOICE [dl-AM-RLC-Mode] OPTIONAL:Exist

|       |   | +-dl-AM-RLC-Mode ::= SEQUENCE

|       |   |   +-dl-RLC-PDU-size ::= CHOICE [sizeType2]

|       |   |   | +-sizeType2 ::= SEQUENCE [0]

|       |   |   |   +-part1 ::= INTEGER (0..23) [12]

|       |   |   |   +-part2 ::= INTEGER OPTIONAL:Omit

|       |   |   +-inSequenceDelivery ::= BOOLEAN [TRUE]

|       |   |   +-receivingWindowSize ::= ENUMERATED [rw2047]

|       |   |   +-dl-RLC-StatusInfo ::= SEQUENCE [100]

|       |   |     +-timerStatusProhibit ::= ENUMERATED [tsp50] OPTIONAL:Exist

|       |   |     +-dummy ::= ENUMERATED OPTIONAL:Omit

|       |   |     +-missingPDU-Indicator ::= BOOLEAN [TRUE]

|       |   |     +-timerStatusPeriodic ::= ENUMERATED OPTIONAL:Omit

|       |   +-rlc-OneSidedReEst ::= BOOLEAN [FALSE]

|       |   +-altE-bitInterpretation ::= ENUMERATED OPTIONAL:Omit

|       +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [1]

|         +-RB-MappingOption-r6 ::= SEQUENCE [11]

|           +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

|           | +-oneLogicalChannel ::= SEQUENCE

|           |   +-ul-TrCH-Type ::= CHOICE [e-dch]

|           |   | +-e-dch ::= SEQUENCE

|           |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [5]

|           |   |   +-e-DCH-MAC-d-FlowIdentity ::= INTEGER (0..maxE-DCHMACdFlow-1[7]) [1]

|           |   |   +-ddi ::= INTEGER (0..62) [5]

|           |   |   +-rlc-PDU-SizeList ::= SEQUENCE OF SIZE(1..maxRLCPDUsizePerLogChan[32]) [1]

|           |   |   | +-RLC-PDU-Size ::= CHOICE [sizeType2]

|           |   |   |   +-sizeType2 ::= SEQUENCE [0]

|           |   |   |     +-part1 ::= INTEGER (0..23) [2]

|           |   |   |     +-part2 ::= INTEGER OPTIONAL:Omit

|           |   |   +-includeInSchedulingInfo ::= BOOLEAN [TRUE]

|           |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [8]

|           +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

|             +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [0]

|               +-dl-TransportChannelType ::= CHOICE [hsdsch]

|               | +-hsdsch ::= INTEGER (0..7) [0]

|               +-logicalChannelIdentity ::= INTEGER OPTIONAL:Omit





rb-InformationAffectedList - 1 MAC-d Flow



This is mapping between downlink DCH transport channel and Logical Channel ID and the mapping between E-DCH transport channel and Logical channel. Even thought this RAB is for HSDPA , signaling RAB is still defined in DCH. This is why we need this part.



Overall structure is as follows. You will see four RABs for four signaling channels.



+-rb-InformationAffectedList ::= SEQUENCE OF SIZE(1..maxRB[32]) [4] OPTIONAL:Exist

| +-RB-InformationAffected-r6 ::= SEQUENCE

| | +-rb-Identity ::= INTEGER (1..32) [1]

| +-RB-InformationAffected-r6 ::= SEQUENCE

| | +-rb-Identity ::= INTEGER (1..32) [2]

| +-RB-InformationAffected-r6 ::= SEQUENCE

| | +-rb-Identity ::= INTEGER (1..32) [3]

| +-RB-InformationAffected-r6 ::= SEQUENCE

|   +-rb-Identity ::= INTEGER (1..32) [4]



If you expand them all, you will get the following details.



+-rb-InformationAffectedList ::= SEQUENCE OF SIZE(1..maxRB[32]) [4] OPTIONAL:Exist

| +-RB-InformationAffected-r6 ::= SEQUENCE

| | +-rb-Identity ::= INTEGER (1..32) [1]

| | +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [1]

| |   +-RB-MappingOption-r6 ::= SEQUENCE [11]

| |     +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

| |     | +-oneLogicalChannel ::= SEQUENCE

| |     |   +-ul-TrCH-Type ::= CHOICE [e-dch]

| |     |   | +-e-dch ::= SEQUENCE

| |     |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [1]

| |     |   |   +-e-DCH-MAC-d-FlowIdentity ::= INTEGER (0..maxE-DCHMACdFlow-1[7]) [0]

| |     |   |   +-ddi ::= INTEGER (0..62) [1]

| |     |   |   +-rlc-PDU-SizeList ::= SEQUENCE OF SIZE(1..maxRLCPDUsizePerLogChan[32]) [1]

| |     |   |   | +-RLC-PDU-Size ::= CHOICE [sizeType1]

| |     |   |   |   +-sizeType1 ::= INTEGER (0..31) [16]

| |     |   |   +-includeInSchedulingInfo ::= BOOLEAN [FALSE]

| |     |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [1]

| |     +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

| |       +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

| |         +-dl-TransportChannelType ::= CHOICE [dch]

| |         | +-dch ::= INTEGER (1..32) [31]

| |         +-logicalChannelIdentity ::= INTEGER (1..15) [1] OPTIONAL:Exist

| +-RB-InformationAffected-r6 ::= SEQUENCE

| | +-rb-Identity ::= INTEGER (1..32) [2]

| | +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [1]

| |   +-RB-MappingOption-r6 ::= SEQUENCE [11]

| |     +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

| |     | +-oneLogicalChannel ::= SEQUENCE

| |     |   +-ul-TrCH-Type ::= CHOICE [e-dch]

| |     |   | +-e-dch ::= SEQUENCE

| |     |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [2]

| |     |   |   +-e-DCH-MAC-d-FlowIdentity ::= INTEGER (0..maxE-DCHMACdFlow-1[7]) [0]

| |     |   |   +-ddi ::= INTEGER (0..62) [2]

| |     |   |   +-rlc-PDU-SizeList ::= SEQUENCE OF SIZE(1..maxRLCPDUsizePerLogChan[32]) [1]

| |     |   |   | +-RLC-PDU-Size ::= CHOICE [sizeType1]

| |     |   |   |   +-sizeType1 ::= INTEGER (0..31) [16]

| |     |   |   +-includeInSchedulingInfo ::= BOOLEAN [FALSE]

| |     |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [1]

| |     +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

| |       +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

| |         +-dl-TransportChannelType ::= CHOICE [dch]

| |         | +-dch ::= INTEGER (1..32) [31]

| |         +-logicalChannelIdentity ::= INTEGER (1..15) [2] OPTIONAL:Exist

| +-RB-InformationAffected-r6 ::= SEQUENCE

| | +-rb-Identity ::= INTEGER (1..32) [3]

| | +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [1]

| |   +-RB-MappingOption-r6 ::= SEQUENCE [11]

| |     +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

| |     | +-oneLogicalChannel ::= SEQUENCE

| |     |   +-ul-TrCH-Type ::= CHOICE [e-dch]

| |     |   | +-e-dch ::= SEQUENCE

| |     |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [3]

| |     |   |   +-e-DCH-MAC-d-FlowIdentity ::= INTEGER (0..maxE-DCHMACdFlow-1[7]) [0]

| |     |   |   +-ddi ::= INTEGER (0..62) [3]

| |     |   |   +-rlc-PDU-SizeList ::= SEQUENCE OF SIZE(1..maxRLCPDUsizePerLogChan[32]) [1]

| |     |   |   | +-RLC-PDU-Size ::= CHOICE [sizeType1]

| |     |   |   |   +-sizeType1 ::= INTEGER (0..31) [16]

| |     |   |   +-includeInSchedulingInfo ::= BOOLEAN [FALSE]

| |     |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [1]

| |     +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

| |       +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

| |         +-dl-TransportChannelType ::= CHOICE [dch]

| |         | +-dch ::= INTEGER (1..32) [31]

| |         +-logicalChannelIdentity ::= INTEGER (1..15) [3] OPTIONAL:Exist

| +-RB-InformationAffected-r6 ::= SEQUENCE

|   +-rb-Identity ::= INTEGER (1..32) [4]

|   +-rb-MappingInfo ::= SEQUENCE OF SIZE(1..maxRBMuxOptions[8]) [1]

|     +-RB-MappingOption-r6 ::= SEQUENCE [11]

|       +-ul-LogicalChannelMappings ::= CHOICE [oneLogicalChannel] OPTIONAL:Exist

|       | +-oneLogicalChannel ::= SEQUENCE

|       |   +-ul-TrCH-Type ::= CHOICE [e-dch]

|       |   | +-e-dch ::= SEQUENCE

|       |   |   +-logicalChannelIdentity ::= INTEGER (1..15) [4]

|       |   |   +-e-DCH-MAC-d-FlowIdentity ::= INTEGER (0..maxE-DCHMACdFlow-1[7]) [0]

|       |   |   +-ddi ::= INTEGER (0..62) [4]

|       |   |   +-rlc-PDU-SizeList ::= SEQUENCE OF SIZE(1..maxRLCPDUsizePerLogChan[32]) [1]

|       |   |   | +-RLC-PDU-Size ::= CHOICE [sizeType1]

|       |   |   |   +-sizeType1 ::= INTEGER (0..31) [16]

|       |   |   +-includeInSchedulingInfo ::= BOOLEAN [FALSE]

|       |   +-mac-LogicalChannelPriority ::= INTEGER (1..8) [1]

|       +-dl-LogicalChannelMappingList ::= SEQUENCE OF SIZE(1..maxLoCHperRLC[2]) [1] OPTIONAL:Exist

|         +-DL-LogicalChannelMapping-r5 ::= SEQUENCE [1]

|           +-dl-TransportChannelType ::= CHOICE [dch]

|           | +-dch ::= INTEGER (1..32) [31]

|           +-logicalChannelIdentity ::= INTEGER (1..15) [4] OPTIONAL:Exist





ul-CommonTransChInfo  - 1 MAC-d Flow





+-ul-CommonTransChInfo ::= SEQUENCE [0010] OPTIONAL:Exist

| +-tfc-Subset ::= CHOICE OPTIONAL:Omit

| +-prach-TFCS ::= CHOICE OPTIONAL:Omit

| +-modeSpecificInfo ::= CHOICE [fdd] OPTIONAL:Exist

| | +-fdd ::= SEQUENCE

| |   +-ul-TFCS ::= CHOICE [normalTFCI-Signalling]

| |     +-normalTFCI-Signalling ::= CHOICE [complete]

| |       +-complete ::= SEQUENCE

| |         +-ctfcSize ::= CHOICE [ctfc2Bit]

| |           +-ctfc2Bit ::= SEQUENCE OF SIZE(1..maxTFC[1024]) [2]

| |             +- ::= SEQUENCE [1]

| |             | +-ctfc2 ::= INTEGER (0..3) [0]

| |             | +-powerOffsetInformation ::= SEQUENCE [0] OPTIONAL:Exist

| |             |   +-gainFactorInformation ::= CHOICE [computedGainFactors]

| |             |   | +-computedGainFactors ::= INTEGER (0..3) [0]

| |             |   +-powerOffsetPp-m ::= INTEGER OPTIONAL:Omit

| |             +- ::= SEQUENCE [1]

| |               +-ctfc2 ::= INTEGER (0..3) [1]

| |               +-powerOffsetInformation ::= SEQUENCE [0] OPTIONAL:Exist

| |                 +-gainFactorInformation ::= CHOICE [signalledGainFactors]

| |                 | +-signalledGainFactors ::= SEQUENCE [1]

| |                 |   +-modeSpecificInfo ::= CHOICE [fdd]

| |                 |   | +-fdd ::= SEQUENCE

| |                 |   |   +-gainFactorBetaC ::= INTEGER (0..15) [8]

| |                 |   +-gainFactorBetaD ::= INTEGER (0..15) [15]

| |                 |   +-referenceTFC-ID ::= INTEGER (0..3) [0] OPTIONAL:Exist

| |                 +-powerOffsetPp-m ::= INTEGER OPTIONAL:Omit

| +-tfc-SubsetList ::= SEQUENCE OF OPTIONAL:Omit





ul-deletedTransChInfoList - 1 MAC-d Flow





+-ul-deletedTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCH[32]) [1] OPTIONAL:Exist

| +-UL-TransportChannelIdentity-r6 ::= CHOICE [dch-usch]

|   +-dch-usch ::= SEQUENCE

|     +-ul-TransportChannelType ::= ENUMERATED [dch]

|     +-ul-TransportChannelIdentity ::= INTEGER (1..32) [31]





ul-AddReconfTransChInfoList - 1 MAC-d Flow



+-ul-AddReconfTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCH[32]) [1] OPTIONAL:Exist

| +-UL-AddReconfTransChInformation-r6 ::= CHOICE [e-dch]

|   +-e-dch ::= SEQUENCE [1]

|     +-tti ::= ENUMERATED [tti10]

|     +-harq-Info ::= ENUMERATED [rvtable]

|     +-addReconf-MAC-d-FlowList ::= SEQUENCE OF SIZE(1..maxE-DCHMACdFlow[8]) [2] OPTIONAL:Exist

|       +-E-DCH-AddReconf-MAC-d-Flow ::= SEQUENCE [1101]

|       | +-mac-d-FlowIdentity ::= INTEGER (0..maxE-DCHMACdFlow-1[7]) [1]

|       | +-mac-d-FlowPowerOffset ::= INTEGER (0..6) [0] OPTIONAL:Exist

|       | +-mac-d-FlowMaxRetrans ::= INTEGER (0..15) [7] OPTIONAL:Exist

|       | +-mac-d-FlowMultiplexingList ::= BIT STRING OPTIONAL:Omit

|       | +-transmissionGrantType ::= CHOICE [scheduledTransmissionGrantInfo] OPTIONAL:Exist

|       |   +-scheduledTransmissionGrantInfo ::= NULL

|       +-E-DCH-AddReconf-MAC-d-Flow ::= SEQUENCE [1101]

|         +-mac-d-FlowIdentity ::= INTEGER (0..maxE-DCHMACdFlow-1[7]) [0]

|         +-mac-d-FlowPowerOffset ::= INTEGER (0..6) [0] OPTIONAL:Exist

|         +-mac-d-FlowMaxRetrans ::= INTEGER (0..15) [7] OPTIONAL:Exist

|         +-mac-d-FlowMultiplexingList ::= BIT STRING OPTIONAL:Omit

|         +-transmissionGrantType ::= CHOICE [non-ScheduledTransGrantInfo] OPTIONAL:Exist

|           +-non-ScheduledTransGrantInfo ::= SEQUENCE [0]

|             +-maxMAC-e-PDUContents ::= INTEGER (1..19982) [168]

|             +-ms2-NonSchedTransmGrantHARQAlloc ::= BIT STRING OPTIONAL:Omit





dl-CommonTransChInfo - 1 MAC-d Flow





+-dl-CommonTransChInfo ::= SEQUENCE [01] OPTIONAL:Exist

| +-sccpch-TFCS ::= CHOICE OPTIONAL:Omit

| +-modeSpecificInfo ::= CHOICE [fdd] OPTIONAL:Exist

|   +-fdd ::= SEQUENCE [1]

|     +-dl-Parameters ::= CHOICE [dl-DCH-TFCS] OPTIONAL:Exist

|       +-dl-DCH-TFCS ::= SEQUENCE [1]

|         +-tfcs ::= CHOICE [normalTFCI-Signalling] OPTIONAL:Exist

|           +-normalTFCI-Signalling ::= CHOICE [complete]

|             +-complete ::= SEQUENCE

|               +-ctfcSize ::= CHOICE [ctfc2Bit]

|                 +-ctfc2Bit ::= SEQUENCE OF SIZE(1..maxTFC[1024]) [2]

|                   +- ::= SEQUENCE [0]

|                   | +-ctfc2 ::= INTEGER (0..3) [0]

|                   | +-powerOffsetInformation ::= SEQUENCE OPTIONAL:Omit

|                   +- ::= SEQUENCE [0]

|                     +-ctfc2 ::= INTEGER (0..3) [1]

|                     +-powerOffsetInformation ::= SEQUENCE OPTIONAL:Omit





dl-AddReconfTransChInfoList - 1 MAC-d Flow





+-dl-AddReconfTransChInfoList ::= SEQUENCE OF SIZE(1..maxTrCHpreconf[32]) [2] OPTIONAL:Exist

  +-DL-AddReconfTransChInformation-r5 ::= SEQUENCE [0]

  | +-dl-TransportChannelType ::= CHOICE [hsdsch]

  | | +-hsdsch ::= NULL

  | +-tfs-SignallingMode ::= CHOICE [hsdsch]

  | | +-hsdsch ::= SEQUENCE [11]

  | |   +-harqInfo ::= SEQUENCE OPTIONAL:Exist

  | |   | +-numberOfProcesses ::= INTEGER (1..8) [6]

  | |   | +-memoryPartitioning ::= CHOICE [explicit]

  | |   |   +-explicit ::= SEQUENCE OF SIZE(1..maxHProcesses[8]) [6]

  | |   |     +-HARQMemorySize ::= ENUMERATED [hms28800]

  | |   |     +-HARQMemorySize ::= ENUMERATED [hms28800]

  | |   |     +-HARQMemorySize ::= ENUMERATED [hms28800]

  | |   |     +-HARQMemorySize ::= ENUMERATED [hms28800]

  | |   |     +-HARQMemorySize ::= ENUMERATED [hms28800]

  | |   |     +-HARQMemorySize ::= ENUMERATED [hms28800]

  | |   +-addOrReconfMAC-dFlow ::= SEQUENCE [10] OPTIONAL:Exist

  | |     +-mac-hs-AddReconfQueue-List ::= SEQUENCE OF SIZE(1..maxQueueIDs[8]) [1] OPTIONAL:Exist

  | |     | +-MAC-hs-AddReconfQueue ::= SEQUENCE [1]

  | |     |   +-mac-hsQueueId ::= INTEGER (0..7) [0]

  | |     |   +-mac-dFlowId ::= INTEGER (0..7) [0]

  | |     |   +-reorderingReleaseTimer ::= ENUMERATED [rt50]

  | |     |   +-mac-hsWindowSize ::= ENUMERATED [mws16]

  | |     |   +-mac-d-PDU-SizeInfo-List ::= SEQUENCE OF SIZE(1..maxMAC-d-PDUsizes[8]) [1] OPTIONAL:Exist

  | |     |     +-MAC-d-PDUsizeInfo ::= SEQUENCE

  | |     |       +-mac-d-PDU-Size ::= INTEGER (1..5000) [656]

  | |     |       +-mac-d-PDU-Index ::= INTEGER (0..7) [0]

  | |     +-mac-hs-DelQueue-List ::= SEQUENCE OF OPTIONAL:Omit

  | +-dch-QualityTarget ::= SEQUENCE OPTIONAL:Omit





DL-AddReconfTransChInformation-r5 - 1 MAC-d Flow



+-DL-AddReconfTransChInformation-r5 ::= SEQUENCE [1]

  +-dl-TransportChannelType ::= CHOICE [dch]

  | +-dch ::= INTEGER (1..32) [31]

  +-tfs-SignallingMode ::= CHOICE [explicit-config]

  | +-explicit-config ::= CHOICE [dedicatedTransChTFS]

  |   +-dedicatedTransChTFS ::= SEQUENCE

  |     +-tti ::= CHOICE [tti40]

  |     | +-tti40 ::= SEQUENCE OF SIZE(1..maxTF[32]) [1]

  |     |   +-DedicatedDynamicTF-Info ::= SEQUENCE

  |     |     +-rlc-Size ::= CHOICE [octetModeType1]

  |     |     | +-octetModeType1 ::= CHOICE [sizeType1]

  |     |     |   +-sizeType1 ::= INTEGER (0..31) [16]

  |     |     +-numberOfTbSizeList ::= SEQUENCE OF SIZE(1..maxTF[32]) [2]

  |     |     | +-NumberOfTransportBlocks ::= CHOICE [zero]

  |     |     | | +-zero ::= NULL

  |     |     | +-NumberOfTransportBlocks ::= CHOICE [one]

  |     |     |   +-one ::= NULL

  |     |     +-logicalChannelList ::= CHOICE [allSizes]

  |     |       +-allSizes ::= NULL

  |     +-semistaticTF-Information ::= SEQUENCE

  |       +-channelCodingType ::= CHOICE [convolutional]

  |       | +-convolutional ::= ENUMERATED [third]

  |       +-rateMatchingAttribute ::= INTEGER (1..hiRM[256]) [160]

  |       +-crc-Size ::= ENUMERATED [crc16]

  +-dch-QualityTarget ::= SEQUENCE OPTIONAL:Exist

    +-bler-QualityValue ::= INTEGER (-63..0) [-20]





ul-DPCH-Info - 1 MAC-d Flow



This is for UL HS-DPCCH channel configuration.



+-ul-DPCH-Info ::= SEQUENCE [1] OPTIONAL:Exist

| +-ul-DPCH-PowerControlInfo ::= CHOICE [fdd] OPTIONAL:Exist

| | +-fdd ::= SEQUENCE [111]

| |   +-dpcch-PowerOffset ::= INTEGER (-82..-3) [-30]

| |   +-pc-Preamble ::= INTEGER (0..7) [0]

| |   +-sRB-delay ::= INTEGER (0..7) [7]

| |   +-powerControlAlgorithm ::= CHOICE [algorithm1]

| |   | +-algorithm1 ::= INTEGER (0..1) [0]

| |   +-deltaACK ::= INTEGER (0..8) [3] OPTIONAL:Exist

| |   +-deltaNACK ::= INTEGER (0..8) [3] OPTIONAL:Exist

| |   +-ack-NACK-repetition-factor ::= INTEGER (1..4) [1] OPTIONAL:Exist

| |   +-harq-Preamble-Mode ::= INTEGER (0..1) [0]

| +-modeSpecificInfo ::= CHOICE [fdd]

|   +-fdd ::= SEQUENCE

|     +-scramblingCodeType ::= ENUMERATED [longSC]

|     +-scramblingCode ::= INTEGER (0..16777215) [0]

|     +-dpdchPresence ::= CHOICE [notPresent]

|       +-notPresent ::= SEQUENCE [0]

|         +-tfci-Existence ::= BOOLEAN [FALSE]

|         +-numberOfFBI-Bits ::= INTEGER OPTIONAL:Omit





ul-EDCH-Information - 1 MAC-d Flow



+-ul-EDCH-Information ::= SEQUENCE [1111] OPTIONAL:Exist

| +-mac-es-e-resetIndicator ::= ENUMERATED [true] OPTIONAL:Exist

| +-e-DPCCH-Info ::= SEQUENCE OPTIONAL:Exist

| | +-e-DPCCH-DPCCH-PowerOffset ::= INTEGER (0..8) [8]

| | +-happyBit-DelayCondition ::= ENUMERATED [ms100]

| +-e-DPDCH-Info ::= SEQUENCE [000] OPTIONAL:Exist

| | +-e-TFCI-TableIndex ::= INTEGER (0..1) [0]

| | +-e-DCH-MinimumSet-E-TFCI ::= INTEGER OPTIONAL:Omit

| | +-reference-E-TFCIs ::= SEQUENCE OF SIZE(1..8) [1]

| | | +-E-DPDCH-Reference-E-TFCI ::= SEQUENCE

| | |   +-reference-E-TFCI ::= INTEGER (0..127) [119]

| | |   +-reference-E-TFCI-PO ::= INTEGER (0..29) [5]

| | +-maxChannelisationCodes ::= ENUMERATED [sf4x2]

| | +-pl-NonMax ::= INTEGER (11..25) [21]

| | +-schedulingInfoConfiguration ::= SEQUENCE [00]

| | | +-periodicityOfSchedInfo-NoGrant ::= ENUMERATED OPTIONAL:Omit

| | | +-periodicityOfSchedInfo-Grant ::= ENUMERATED OPTIONAL:Omit

| | | +-powerOffsetForSchedInfo ::= INTEGER (0..6) [0]

| | +-threeIndexStepThreshold ::= INTEGER OPTIONAL:Omit

| | +-twoIndexStepThreshold ::= INTEGER OPTIONAL:Omit

| +-schedulingTransmConfiguration ::= SEQUENCE [00] OPTIONAL:Exist

|   +-ms2-SchedTransmGrantHARQAlloc ::= BIT STRING OPTIONAL:Omit

|   +-servingGrant ::= SEQUENCE OPTIONAL:Omit





dl-HSPDSCH-Information - 1 MAC-d Flow



+-dl-HSPDSCH-Information ::= SEQUENCE [11] OPTIONAL:Exist

| +-hs-scch-Info ::= SEQUENCE OPTIONAL:Exist

| | +-modeSpecificInfo ::= CHOICE [fdd]

| |   +-fdd ::= SEQUENCE [0]

| |     +-hS-SCCHChannelisationCodeInfo ::= SEQUENCE OF SIZE(1..maxHSSCCHs[4]) [1]

| |     | +-HS-SCCH-Codes ::= INTEGER (0..127) [7]

| |     +-dl-ScramblingCode ::= INTEGER OPTIONAL:Omit

| +-measurement-feedback-Info ::= SEQUENCE OPTIONAL:Exist

| | +-modeSpecificInfo ::= CHOICE [fdd]

| |   +-fdd ::= SEQUENCE

| |     +-measurementPowerOffset ::= INTEGER (-12..26) [26]

| |     +-feedback-cycle ::= ENUMERATED [fc4]

| |     +-cqi-RepetitionFactor ::= INTEGER (1..4) [1]

| |     +-deltaCQI ::= INTEGER (0..8) [5]

| +-modeSpecificInfo ::= CHOICE [fdd]

|   +-fdd ::= NULL





dl-CommonInformation - 1 MAC-d Flow



+-dl-CommonInformation ::= SEQUENCE [110] OPTIONAL:Exist

| +-dl-dpchInfoCommon ::= CHOICE [dl-DPCH-InfoCommon] OPTIONAL:Exist

| | +-dl-DPCH-InfoCommon ::= SEQUENCE [0]

| |   +-cfnHandling ::= CHOICE [maintain]

| |   | +-maintain ::= SEQUENCE [0]

| |   |   +-timingmaintainedsynchind ::= ENUMERATED OPTIONAL:Omit

| |   +-modeSpecificInfo ::= CHOICE [fdd]

| |   | +-fdd ::= SEQUENCE [10]

| |   |   +-dl-DPCH-PowerControlInfo ::= SEQUENCE OPTIONAL:Exist

| |   |   | +-modeSpecificInfo ::= CHOICE [fdd]

| |   |   |   +-fdd ::= SEQUENCE

| |   |   |     +-dpc-Mode ::= ENUMERATED [singleTPC]

| |   |   +-powerOffsetPilot-pdpdch ::= INTEGER (0..24) [0]

| |   |   +-dl-rate-matching-restriction ::= SEQUENCE OPTIONAL:Omit

| |   |   +-spreadingFactorAndPilot ::= CHOICE [sfd256]

| |   |   | +-sfd256 ::= ENUMERATED [pb4]

| |   |   +-positionFixedOrFlexible ::= ENUMERATED [fixed]

| |   |   +-tfci-Existence ::= BOOLEAN [FALSE]

| |   +-mac-d-HFN-initial-value ::= BIT STRING OPTIONAL:Omit

| +-modeSpecificInfo ::= CHOICE [fdd]

| | +-fdd ::= SEQUENCE [001]

| |   +-defaultDPCH-OffsetValue ::= INTEGER OPTIONAL:Omit

| |   +-dpch-CompressedModeInfo ::= SEQUENCE OPTIONAL:Omit

| |   +-tx-DiversityMode ::= ENUMERATED [noDiversity] OPTIONAL:Exist

| +-mac-hsResetIndicator ::= ENUMERATED [true] OPTIONAL:Exist

| +-postVerificationPeriod ::= ENUMERATED OPTIONAL:Omit





dl-InformationPerRL-List - 1 MAC-d Flow



+-dl-InformationPerRL-List ::= SEQUENCE OF SIZE(1..maxRL[8]) [1] OPTIONAL:Exist

| +-DL-InformationPerRL-r6 ::= SEQUENCE [11110]

|   +-modeSpecificInfo ::= CHOICE [fdd]

|   | +-fdd ::= SEQUENCE

|   |   +-primaryCPICH-Info ::= SEQUENCE

|   |   | +-primaryScramblingCode ::= INTEGER (0..511) [9]

|   |   +-servingHSDSCH-RL-indicator ::= BOOLEAN [TRUE]

|   |   +-servingEDCH-RL-indicator ::= BOOLEAN [TRUE]

|   +-dl-dpchInfo ::= CHOICE [dl-DPCH-InfoPerRL] OPTIONAL:Exist

|   | +-dl-DPCH-InfoPerRL ::= CHOICE [fdd]

|   |   +-fdd ::= SEQUENCE [000]

|   |     +-pCPICH-UsageForChannelEst ::= ENUMERATED [mayBeUsed]

|   |     +-dpch-FrameOffset ::= INTEGER (0..149) [0]

|   |     +-secondaryCPICH-Info ::= SEQUENCE OPTIONAL:Omit

|   |     +-dl-ChannelisationCodeList ::= SEQUENCE OF SIZE(1..maxDPCH-DLchan[8]) [1]

|   |     | +-DL-ChannelisationCode ::= SEQUENCE [01]

|   |     |   +-secondaryScramblingCode ::= INTEGER OPTIONAL:Omit

|   |     |   +-sf-AndCodeNumber ::= CHOICE [sf256]

|   |     |   | +-sf256 ::= INTEGER (0..255) [10]

|   |     |   +-scramblingCodeChange ::= ENUMERATED [noCodeChange] OPTIONAL:Exist

|   |     +-tpc-CombinationIndex ::= INTEGER (0..5) [0]

|   |     +-powerOffsetTPC-pdpdch ::= INTEGER OPTIONAL:Omit

|   |     +-closedLoopTimingAdjMode ::= ENUMERATED OPTIONAL:Omit

|   +-e-AGCH-Information ::= SEQUENCE OPTIONAL:Exist

|   | +-e-AGCH-ChannelisationCode ::= INTEGER (0..255) [2]

|   +-e-HICH-Info ::= CHOICE [e-HICH-Information] OPTIONAL:Exist

|   | +-e-HICH-Information ::= SEQUENCE

|   |   +-channelisationCode ::= INTEGER (0..127) [4]

|   |   +-signatureSequence ::= INTEGER (0..39) [1]

|   +-e-RGCH-Info ::= CHOICE [e-RGCH-Information] OPTIONAL:Exist

|   | +-e-RGCH-Information ::= SEQUENCE

|   |   +-signatureSequence ::= INTEGER (0..39) [0]

|   |   +-rg-CombinationIndex ::= INTEGER (0..5) [0]

|   +-cell-id ::= BIT STRING OPTIONAL:Omit
