RF - Coax                                         Home : www.sharetechnote.com

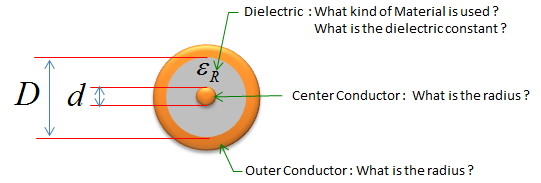

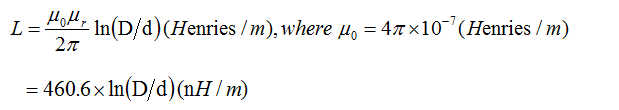

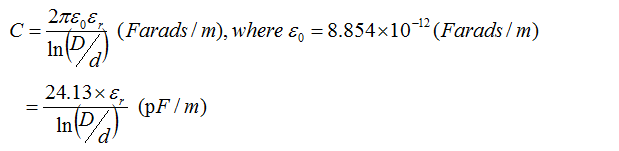

Capacitance and Inductance

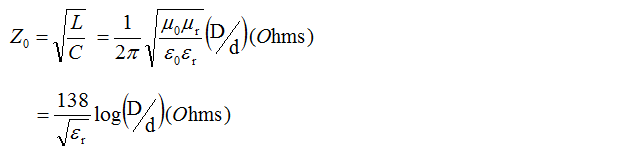

Characteristic Impedence

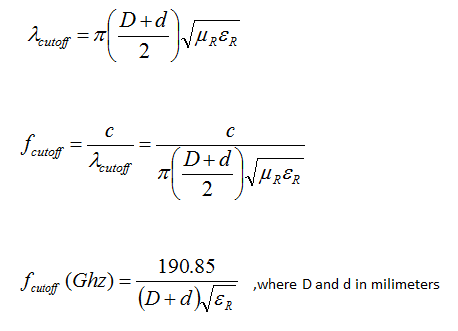

Cutoff Frequency





Tables for Max Frequency for Typical Connectors



Connector Type

Recommended Max Frequency

3.5 mm

26.5 Ghz

2.92 mm

40 Ghz

2.4 mm

50 Ghz

1.85 mm

60 Ghz

1 mm

110 Ghz
