5G/NR - Applicable Time Domain Allocation                      Home : www.sharetechnote.com













PDSCH and PUSCH scheduling is done by the combination of many different factors summarizied at Scheduling : Overview page. But most of those factors are optional parameters which can be omitted. If any of those parameters are omitted (not configured), at set of predefined scheduling parameters (called 'Default' parameter). This page shows those default parameter sets for various cases.







Applicable PDSCH Time Domain Resource Allocation



The tables in this section shows the set of default parameters that are used for PDSCH scheduling.

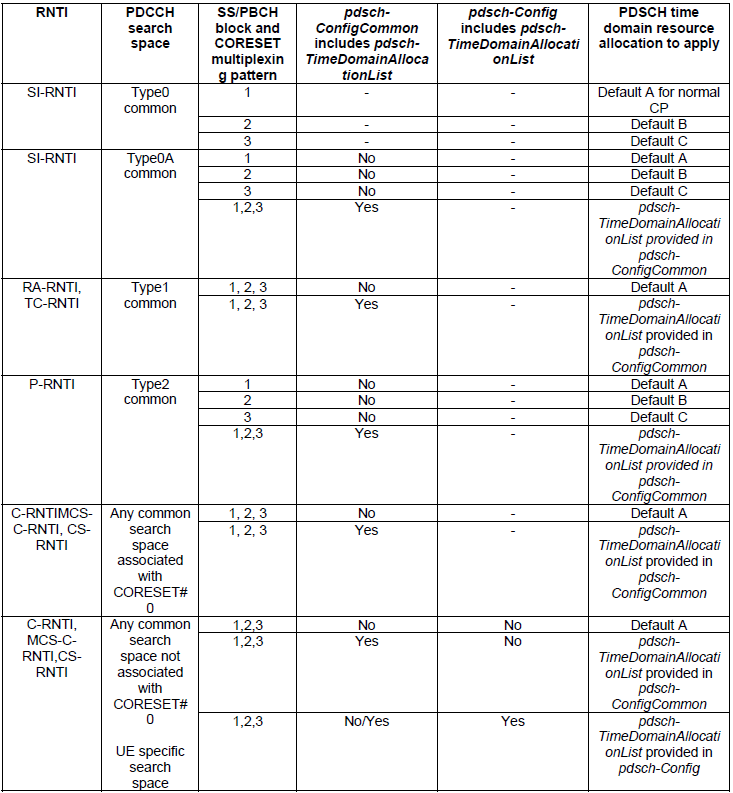

< 38.214 v15.3 - Table 5.1.2.1.1-1: Applicable PDSCH time domain resource allocation >

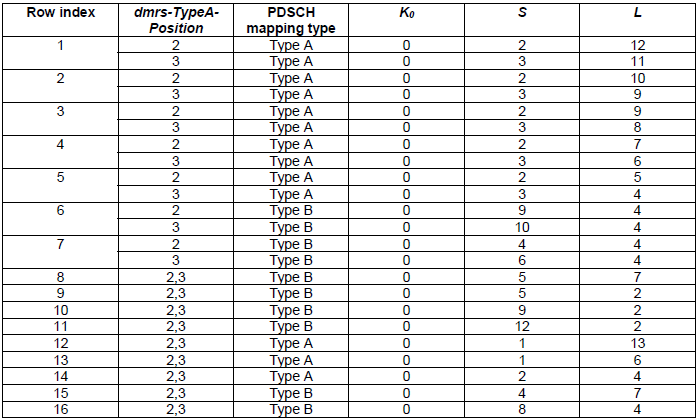

< 38.214 v15.3 - Table 5.1.2.1.1-2: Default PDSCH time domain resource allocation A for normal CP >

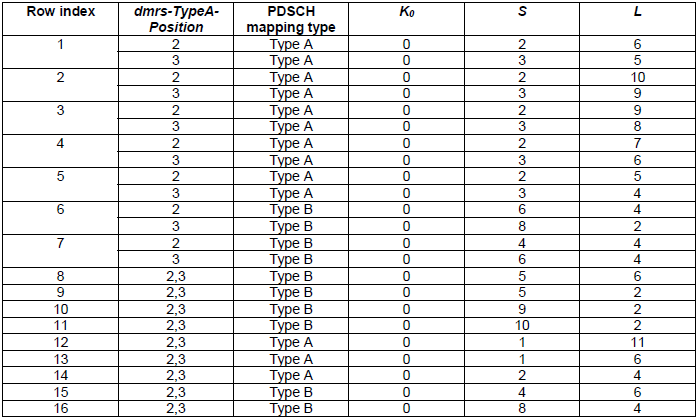

< 38.214 v15.3 - Table 5.1.2.1.1-3: Default PDSCH time domain resource allocation A for extended CP >

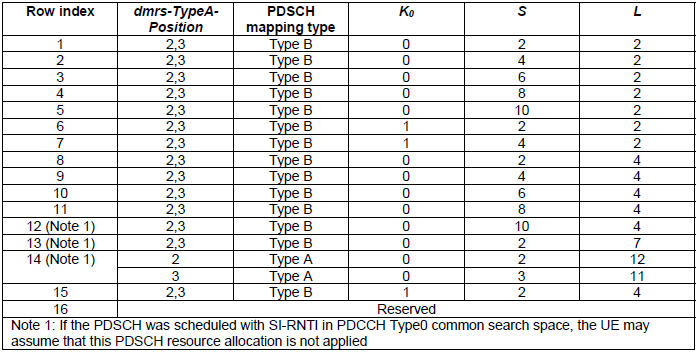

< 38.214 v15.3 - Table 5.1.2.1.1-4: Default PDSCH time domain resource allocation B >

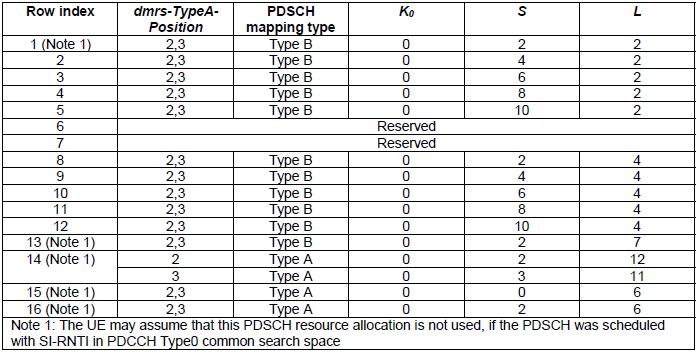

< 38.214 v15.3 - Table 5.1.2.1.1-5: Default PDSCH time domain resource allocation C >







Applicable PUSCH Time Domain Resource Allocation



The tables in this section shows the set of default parameters that are used for PUSCH scheduling.

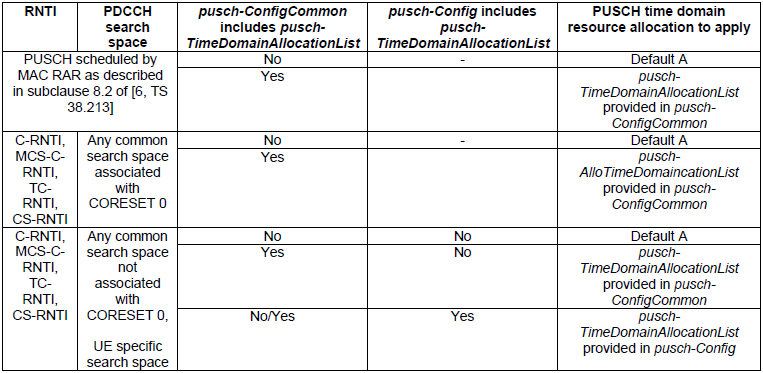

< 38.214 v15.3 - Table 6.1.2.1.1-1: Applicable PUSCH time domain resource allocation >

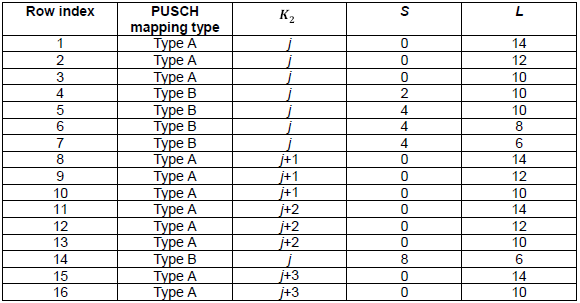

< 38.214 v15.3 - Table 6.1.2.1.1-2: Default PUSCH time domain resource allocation A for normal CP >

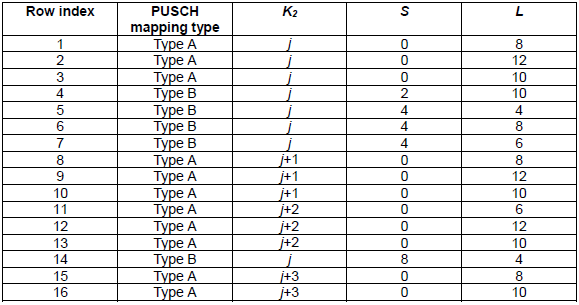

< 38.214 v15.3 - Table 6.1.2.1.1-3: Default PUSCH time domain resource allocation A for extended CP >





< 38.214 v15.3 - Table 6.1.2.1.1-4: Definition of value j >





< 38.214 v15.3 -Table 6.1.2.1.1-5: Definition of value Δ >
