Embedded System - Beaglebone









Memory Map and Registers



Our brain is functionally divided into multiple regions and each and every parts of our body is controlled by a specific region of a brain. It means each and every parts of our body is somehow connected to some specific parts of a brain. If you stimulate a specific parts of the brain that is connected to a specific body part, that body parts would response in specific way. For example, if you stimulate the brain parts that is connected to a mustle in your arm, the mustle would twitch.

Likewise, Hardware parts on Computer/Microprocessor board and memory on the board is in very similar relation between our brain and body parts. It means, each and every parts of the hardware is somewhow connected to a some part in the memory. If you write some value in a specific parts of the memory, it is reflected as a specific action of a hardware. A most common hardware in Microsprocessor board would be various I/O pins and communication ports. All of these pins and ports are connected to a specific parts of the memory. In most case, which parts of the memory is connected to which part of the hardware is determined by the CPU/Microcontroller type and the operating system. You can create a table or diagram showing each functional blocks of the memory. This table or diagram is called Memory Map.

If you understand the memory map of a specific CPU/Microprocessor, you can directly controls a specific hardware by writing some value directly into a specific memory location or you can figure out the status of a specific hardware by reading the value of a specific memory portion (address).

If you are a programmer running on a modern operating system, there wouldn't be many cases where you need to read/write to/from the memory because in modern operating system you just send some high level command and operating system is doing all the necessary details to control the hardware and in most case you are not even allowed to directly read/write on memory. However, in Microprocessor (Embedded) application there are still many cases where it is better to control the hardware by direct read/write on memory. So it is still important to understand the details of the memory map and every microprocessor manufacture publish the memory map in their technical reference. However, if you are new to this area, the biggest problem is to understand the document itself. It would just like a long tables showing just a bunch of magic numbers (or looks like garbage).

In this page, I will try to show you how to interpret the memory map of Beaglebone Microprocessor (AM335x Sitara™ Processors).

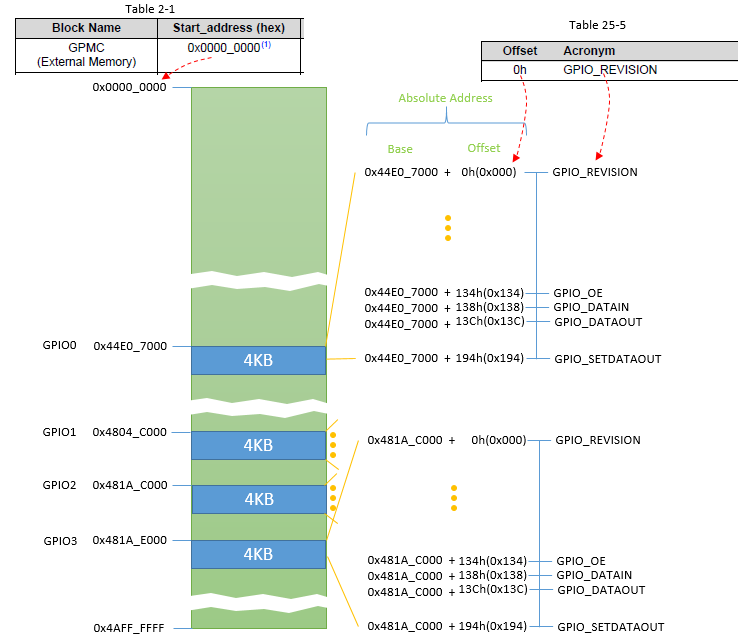

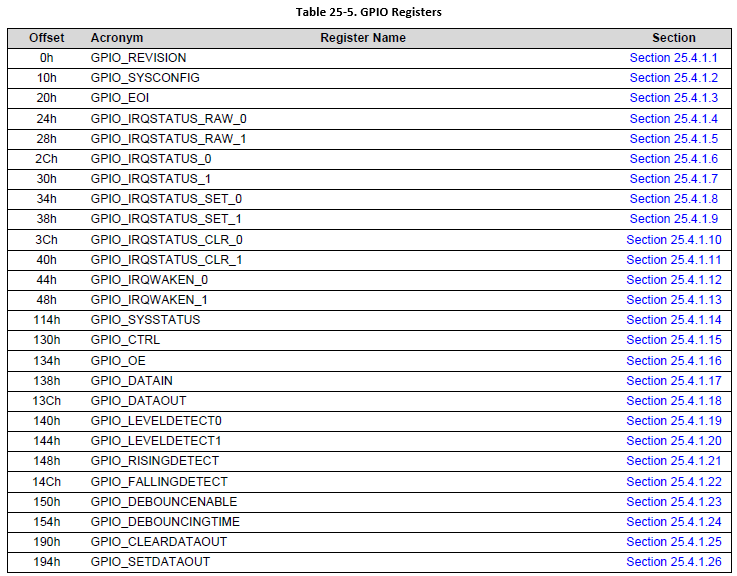

GPIO Memory Map and Registers













GPIO Pin Number on Board and Memory Map



GPIO on Board

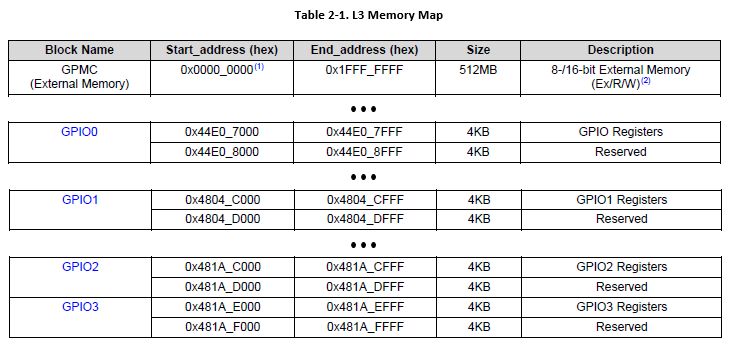

GPIO Bank on Momory

Bit #

Header on Board

Address

2

0

2

P9_22



3

0

3

P9_21



4

0

4

P9_18



5

0

5

P9_17



7

0

7

P9_42A



8

0

8

P8_35



9

0

9

P8_33



10

0

10

P8_31



11

0

11

P8_32



12

0

12

P9_20



13

0

13

P9_19



14

0

14

P9_26



15

0

15

P9_24



20

0

20

P9_41A



22

0

22

P8_19



23

0

23

P8_13



26

0

26

P8_14



27

0

27

P8_17



30

0

30

P9_11



31

0

31

P9_13



32

1

0

P8_25



33

1

1

P8_24



34

1

2

P8_05



35

1

3

P8_06



36

1

4

P8_23



37

1

5

P8_22



38

1

6

P8_03



39

1

7

P8_04



44

1

12

P8_12



45

1

13

P8_11



46

1

14

P8_16



47

1

15

P8_15



48

1

16

P9_15



49

1

17

P9_23



50

1

18

P9_14



51

1

19

P9_16



60

1

28

P9_12



61

1

29

P8_26



62

1

30

P8_21



63

1

31

P8_20



65

2

1

P8_18



66

2

2

P8_07



67

2

3

P8_08



68

2

4

P8_10



69

2

5

P8_09



70

2

6

P8_45



71

2

7

P8_46



72

2

8

P8_43



73

2

9

P8_44



74

2

10

P8_41



75

2

11

P8_42



76

2

12

P8_39



77

2

13

P8_43



78

2

14

P8_37



79

2

15

P8_38



80

2

16

P8_36



81

2

17

P8_34



86

2

22

P8_27



87

2

23

P8_29



88

2

24

P8_28



89

2

25

P8_30



110

3

14

P9_31



111

3

15

P9_29



112

3

16

P9_30



113

3

17

P9_28



114

3

18

P9_42B



115

3

19

P9_27



116

3

20

P9_41B



117

3

21

P9_25

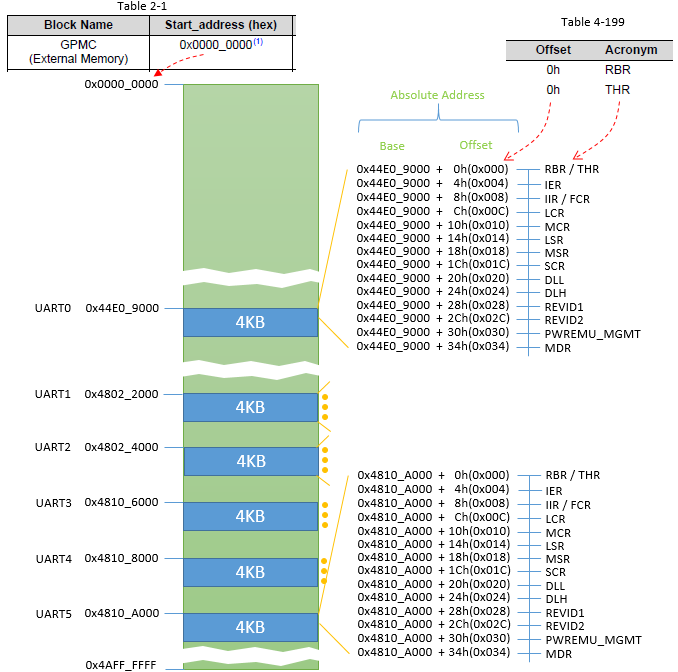

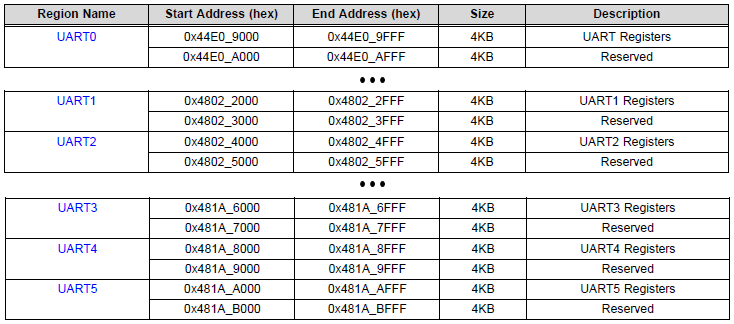

UART Memory Map and Registers







< Table 2-2. L4_WKUP Peripheral Memory Map >

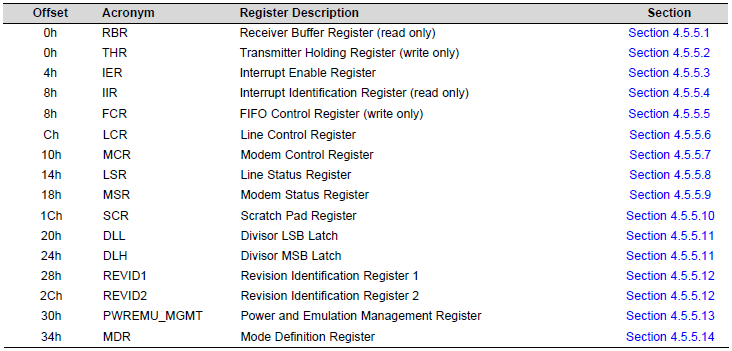

< Table 4-199. PRU_ICSS_UART Registers >





Reference :

[1] AM335x Sitara™ Processors Technical Reference Manual

[2] Exploring Beaglebone - Chap 6
