MatLab Toolbox - Phase Array System                       Home : www.sharetechnote.com







ReplicatedSubarray





RSA_Basic_01.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength



txSubarray = phased.URA('Size',[4 4],'ElementSpacing',[lambda/2 lambda/2]);

txSubarray.Element.BackBaffled = true;



txReplicatedURA = phased.ReplicatedSubarray('Subarray',txSubarray,...

                               'Layout','Rectangular',...

                               'GridSize',[2 2],...

                               'GridSpacing',4.0*lambda/2,...

                               'SubarraySteering','Phase',...

                               'PhaseShifterFrequency',fc);

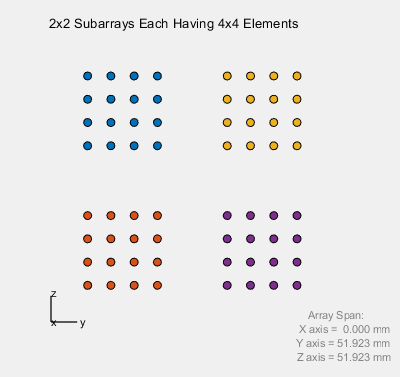

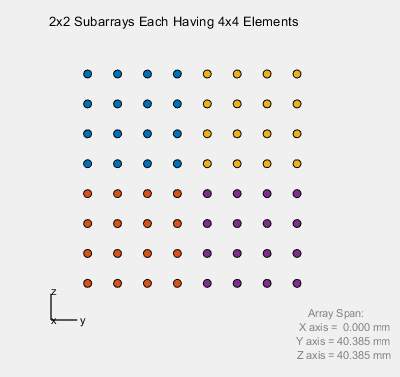

viewArray(txReplicatedURA,'Title','2x2 Subarrays Each Having 4x4 Elements');





'GridSpacing',4.0*lambda/2

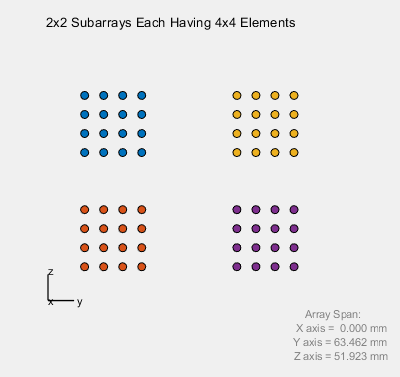

'GridSpacing',6.0*lambda/2





'GridSpacing',[6.0*lambda/2,8.0*lambda/2]







RSA_Basic_02.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength



txSubarray = phased.URA('Size',[4 4],'ElementSpacing',[lambda/2 lambda/2]);

txSubarray.Element.BackBaffled = true;



txReplicatedURA = phased.ReplicatedSubarray('Subarray',txSubarray,...

                               'Layout','Rectangular',...

                               'GridSize',[2 2],...

                               'GridSpacing',4.0*lambda/2,...

                               'SubarraySteering','Phase',...

                               'PhaseShifterFrequency',fc);

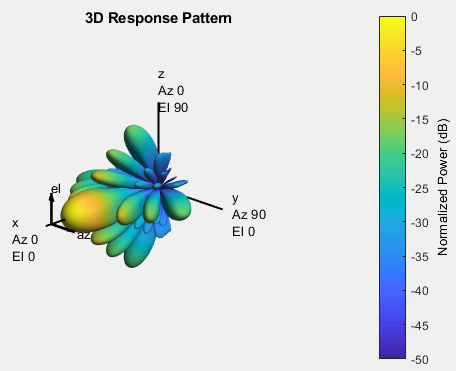

pattern(txReplicatedURA,fc,[-180:180],[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdB')





'GridSpacing',4.0*lambda/2







RSA_Basic_03.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength



txSubarray = phased.URA('Size',[4 4],'ElementSpacing',[lambda/2 lambda/2]);

txSubarray.Element.BackBaffled = true;



txReplicatedURA = phased.ReplicatedSubarray('Subarray',txSubarray,...

                               'Layout','Rectangular',...

                               'GridSize',[2 2],...

                               'GridSpacing',4.0*lambda/2,...

                               'SubarraySteering','Phase',...

                               'PhaseShifterFrequency',fc);

steer_ang = [0;0];

sv_array = phased.SteeringVector('SensorArray',txReplicatedURA,...

                                 'PropagationSpeed',c);



wts_array = sv_array(fc,steer_ang);



viewArray(txReplicatedURA,'Title','2x2 Subarrays Each Having 4x4 Elements');

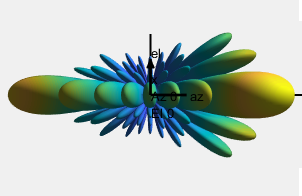

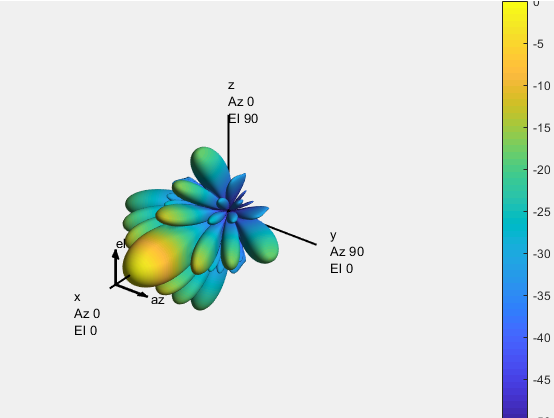

pattern(txReplicatedURA,fc,[-180:180],[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdB',...

    'Weights',wts_array,...

    'SteerAngle',steer_ang)



view(90+37.5,30);





steer_ang = [0;0];

view(90+37.5,30);





steer_ang = [-15;0];

view(90,0);

steer_ang = [0;0];

view(90,0);

steer_ang = [15;0];

view(90,0);





steer_ang = [30;0];

view(90,0);

steer_ang = [60;0];

view(90,0);





steer_ang = [0;-15];

view(90,0);

steer_ang = [0;0];

view(90,0);

steer_ang = [0;15];

view(90,0);







steer_ang = [0;30];

view(90,0);

steer_ang = [0;45];

view(90,0);

steer_ang = [0;60];

view(90,0);
