5G/NR - VoNR







VoNR  (Voice Over NR)

VoNR is very similar to VoLTE. They are all based on Voice call over IMS. The main difference is that the IMS is established by and go through 5G Core network in VoNR whereas it is established by and go through 4G core network. Even in terms of 3GPP, the details of VoNR procedure is described in 23.228 which is mainly for IMS for LTE and 5G specific details are provided as an appendix (Annex Y). So if you are already familiar with VoLTE, you would catch up VoNR very quickly and most of the contents listed in my IMS notes would applies to VoNR as well. In this page, I would mostly focus on the differences in VoNR.

Overall Call Flow

Following is the overall call flow of NR. You would see a little bit of differences in terms of signaling message name comparing to VoLTE setup, but those differences are due to signaling difference between LTE and NR, not specifically due to IMS side difference. I wouldn't put all the details of NR signaling procedure here. I would only put those steps related to VoNR.

Step

Direction

Message

Memo

1

UE <- NW

SIB1

SIB1 should indicate that the NW supports IMS

(ims-EmergencySupport,eCallOverIMS-Support) and it is not barred(uac-BarringInfo).

2

UE <-> NW

N/A

All the necessary UAC condition should be met for allowing IMS call.

3

UE -> NW

Registration Request

Usage setting = voice centric, GMM capability S1 mode = true

....

4

UE <- NW

UE Capability Enquiry



5

UE -> NW

UE Capability Information

UE should notify the IMS related capabilities (IMS-Parameters)

6

UE <- NW

Registration Accept



7

UE -> NW

Registration Complete



8

UE -> NW

PDU Session Establishment Request

internet DNN, 5QI = (Usually) 6

9

UE <- NW

PDU Session Establishment Accept



10

UE -> NW

PDU Session Establishment Request

ims DNN

11

UE <- NW

PDU Session Establishment Accept

5QI = 5 (mainly for SIP signaling)

12

UE <-> NW

SIP Registration



13

UE

Initiate Voice Call



14

UE <-> NW

SIP Setup before Voice Traffic



15

UE <- NW

PDU Session Modification Command

Add QoS Flow for SIP traffic, 5QI = 1

16

UE -> NW

PDU Session Modification Complete



17

UE <-> NW

SIP Traffic



NOTE : S1 mode capability at step 3 indicates whether UE support EPS Fallback or not. So it may not be set when the voice call is expected purely through VoNR

PDU session establishment request (Log shared by Amarisoft)

This is the message from UE that initiate setting up the configuration which are required to do IMS registration. I would like you to note that this message is requesting a PDU setup with DNN="ims" and requesting the IP address for P-CSCF.  If you are familiar with VoLTE process, you would notice that the role of this message is similar to PDN Connectivity Request in VoLTE.

    Protocol discriminator = 0x7e (5GS Mobility Management)

    Security header = 0x2 (Integrity protected and ciphered)

    Auth code = 0xff096300 Sequence number = 0x02

    Protocol discriminator = 0x7e (5GS Mobility Management)

    Security header = 0x0 (Plain 5GS NAS message, not security protected)

    Message type = 0x67 (UL NAS transport) Payload container type = 1 (N1 SM information)

    Payload container:

      Protocol discriminator = 0x2e (5GS Session Management)

      PDU session identity = 5

      Procedure transaction identity = 9

      Message type = 0xc1 (PDU session establishment request)

        Integrity protection maximum data data:

          Maximum data rate per UE for user-plane integrity protection for uplink = 0xff (Full data rate)

          Maximum data rate per UE for user-plane integrity protection for downlink = 0xff (Full data rate)

        PDU session type = 0x3 (IPv4v6) SSC mode = 0x1 (1)

        Extended protocol configuration options:

          Ext = 1

          Configuration protocol = 0

          Protocol ID = 0x000a (IP address allocation via NAS signalling)

          Data =

          Protocol ID = 0x0002 (IM CN Subsystem Signaling Flag)

          Data =

          Protocol ID = 0x0001 (P-CSCF IPv6 Address Request)

          Data =

          Protocol ID = 0x000c (P-CSCF IPv4 Address Request)

          Data =

          Protocol ID = 0x0003 (DNS Server IPv6 Address Request)

          Data =

          Protocol ID = 0x000d (DNS Server IPv4 Address Request)

          Data =

        PDU session ID = 5

        Request type = 0x1 (initial request)

        DNN = "ims"

PDU session establishment accept (Log shared by Amarisoft).

Once network recieves the PDU session establishment request message from UE, Network informs the UE of the requested information (P-CSCF) and creates a QoS pipe that is necessary for the traffic. This is similar to Activate default EPS bearer context request in VoLTE.

    Protocol discriminator = 0x7e (5GS Mobility Management)

    Security header = 0x2 (Integrity protected and ciphered)

    Auth code = 0x66f143b0

    Sequence number = 0x03

    Protocol discriminator = 0x7e (5GS Mobility Management)

    Security header = 0x0 (Plain 5GS NAS message, not security protected)

    Message type = 0x68 (DL NAS transport)

    Payload container type = 1 (N1 SM information)

    Payload container:

    Protocol discriminator = 0x2e (5GS Session Management)

    PDU session identity = 5

    Procedure transaction identity = 9

    Message type = 0xc2 (PDU session establishment accept)

      Selected PDU session type = 0x3 (IPv4v6)

      Selected SSC mode = 0x1 (1)

      Authorized QoS rules:

        QoS rule 1:

        QoS rule identifier = 1

        Rule operation code = 1 (create new QoS rule)

        DQR = 1 (the QoS rule is the default QoS rule)

        Number of packet filters = 1

        Packet filter identifier = 15

        Packet filter direction = 3 (bidirectional)

        Match-all QoS rule precedence = 255

        QFI = 1

        Session AMBR:

          Session-AMBR for downlink = 3000000 kbps

          Session-AMBR for uplink = 1000000 kbps

          PDU address: PDU session type = 3 (IPv4v6)

        IPv6 = ::2001:468:3000:1

        IPv4 = 192.168.4.2

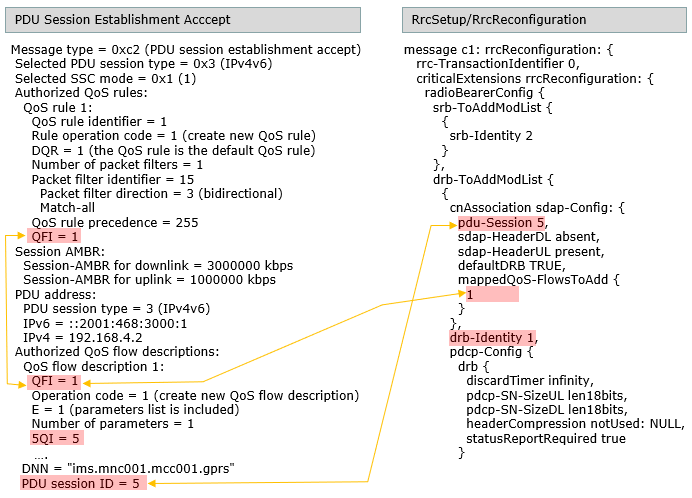

        Authorized QoS flow descriptions: QoS flow description 1:

          QFI = 1

        Operation code = 1 (create new QoS flow description)

        E = 1 (parameters list is included)

        Number of parameters = 1

        5QI = 5

      Extended protocol configuration options:

        Ext = 1

        Configuration protocol = 0

        Protocol ID = 0x000d (DNS Server IPv4 Address)

        Data = 8.8.8.8

        Protocol ID = 0x0003 (DNS Server IPv6 Address)

        Data = 2001:4860:4860:0:0:0:0:8888

        Protocol ID = 0x000c (P-CSCF IPv4 Address)

        Data = 192.168.4.1

        Protocol ID = 0x0001 (P-CSCF IPv6 Address)

        Data = 2001:468:3000:1:0:0:0:0

        Protocol ID = 0x0002 (IM CN Subsystem Signaling Flag)

        Data =

      DNN = "ims.mnc001.mcc001.gprs"

      PDU session ID = 5

PDU session modification command (Log shared by Amarisoft)

Once IMS registration is done and the user trigger IMS call, it would reach a certain point where another data pipe for IMS data traffic (i.e, Voice traffic). For setting up the data only traffic (not IMS signaling), usually NW sets up another data pipe (QoS flow) dedicated for the data traffic. This process is initiated by NW via PDU session modification command (NOTE : Even though this step is done in most of the real network implementation for IMS service, it is not mandatory in protocol point of view. In other words, you may implement the service in such a way that both IMS signaling and voice data go through the single data pipe). This is similar to Activate dedicated EPS bearer context request in VoLTE.

    Protocol discriminator = 0x7e (5GS Mobility Management)

    Security header = 0x2 (Integrity protected and ciphered)

    Auth code = 0x1a236417

    Sequence number = 0x05

    Protocol discriminator = 0x7e (5GS Mobility Management)

    Security header = 0x0 (Plain 5GS NAS message, not security protected)

    Message type = 0x68 (DL NAS transport)

    Payload container type = 1 (N1 SM information)

    Payload container:

      Protocol discriminator = 0x2e (5GS Session Management)

      PDU session identity = 5

      Procedure transaction identity = 0

      Message type = 0xcb (PDU session modification command)

      Authorized QoS rules:

      QoS rule 1:

      QoS rule identifier = 2

      Rule operation code = 1 (create new QoS rule)

      DQR = 0 (the QoS rule is not the default QoS rule)

      Number of packet filters = 2

      Packet filter identifier = 0

        Packet filter direction = 3 (bidirectional)

        Packet filter component 0x20 = 0x20010468300000010000000000000000 ...

                                                         ffffffffffffffffffffffffffffffff3011502710407918

      Packet filter identifier = 1

        Packet filter direction = 3 (bidirectional)

        Packet filter component 0x20 = 0x20010468300000010000000000000000 ...

                                                          ffffffffffffffffffffffffffffffff3011502711407919 QoS rule precedence = 0

      QFI = 2

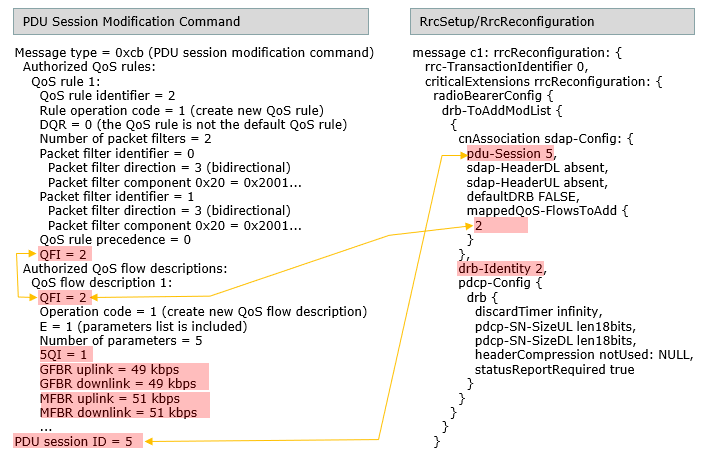

    Authorized QoS flow descriptions:

      QoS flow description 1:

        QFI = 2

        Operation code = 1 (create new QoS flow description)

        E = 1 (parameters list is included)

        Number of parameters = 5

        5QI = 1

        GFBR uplink = 49 kbps

        GFBR downlink = 49 kbps

        MFBR uplink = 51 kbps

        MFBR downlink = 51 kbps

    Extended protocol configuration options:

      Ext = 1 Configuration protocol = 0

      Protocol ID = 0x000d (DNS Server IPv4 Address)

      Data = 8.8.8.8

      Protocol ID = 0x0003 (DNS Server IPv6 Address)

      Data = 2001:4860:4860:0:0:0:0:8888

      Protocol ID = 0x000c (P-CSCF IPv4 Address)

      Data = 192.168.4.1

      Protocol ID = 0x0001 (P-CSCF IPv6 Address)

      Data = 2001:468:3000:1:0:0:0:0

      Protocol ID = 0x0002 (IM CN Subsystem Signaling Flag)

      Data =

    PDU session ID = 5

PDU session modification complete (Log shared by Amarisoft)

    Protocol discriminator = 0x7e (5GS Mobility Management)

    Security header = 0x2 (Integrity protected and ciphered)

    Auth code = 0x81da3da5

    Sequence number = 0x04

    Protocol discriminator = 0x7e (5GS Mobility Management)

    Security header = 0x0 (Plain 5GS NAS message, not security protected)

    Message type = 0x67 (UL NAS transport)

    Payload container type = 1 (N1 SM information)

    Payload container:

      Protocol discriminator = 0x2e (5GS Session Management)

      PDU session identity = 5

      Procedure transaction identity = 0

      Message type = 0xcc (PDU session modification complete)

    PDU session ID = 5

QoS Flow

In VoNR, two different data flows get involved and in most case these two flows are mapped to two different types of QoS pipe. Following is a typical example of the two QoS pipe being used in VoNR based on the log shared by Amarisoft. If you are not familiar with 5G QoS Structure, it would be worth reading my notes on 5G QoS first.

The first QoS Pipe is involved mostly in setting up the data flow for IMS signaling message as shown in the following example. Usually, this QoS setup is triggered by UE via PDU Session Establishment Request and Network creates a core network side of the QoS flow via PDU Session Establishment Accept message. This core network side of QoS pipe (QoS Flow) is mapped to RAN(Radio Access Network) pipe through SDAP configuration in Rrc Message as shown below.

The second QoS Pipe is involved mostly in setting up the data flow for IMS traffic (Voice data) as shown in the following example. This QoS setup is triggered by Network via PDU Session Modification Command and Network creates another QoS pipe on core network side. This core network side of QoS pipe (QoS Flow) is mapped to RAN(Radio Access Network) pipe through SDAP configuration in Rrc Message as shown below.

S1 mode vs N1 mode

  •   S1 mode :  indicates successful EPS Attach
  •   N1 mode : indicates successful 5GC(5G Core) Attach

Key Informations in Signaling Message

There are many different types of message with various information elements related to VoNR service and I am trying to list up those messages and information elements in this section. But I wouldn't say all of these information elements are mandatory. Depending on Network implementation or UE protocol stack implementation it may work without some of these informations.

SIB1

    SIB1 ::=        SEQUENCE {

        ...

        ims-EmergencySupport                ENUMERATED {true}             OPTIONAL,   -- Need R

        eCallOverIMS-Support                 ENUMERATED {true}             OPTIONAL,   -- Cond Absent

        ...

    }

UE Capability Information

    IMS-Parameters ::= SEQUENCE {

       ims-ParametersCommon                  IMS-ParametersCommon OPTIONAL,

       ims-ParametersFRX-Diff                  IMS-ParametersFRX-Diff OPTIONAL,

       ...

    }



    IMS-ParametersCommon ::= SEQUENCE {

       voiceOverEUTRA-5GC                     ENUMERATED {supported} OPTIONAL,

       ...,

       [[

          voiceOverSCG-BearerEUTRA-5GC   ENUMERATED {supported} OPTIONAL

       ]],

       [[

          voiceFallbackIndicationEPS-r16      ENUMERATED {supported} OPTIONAL

       ]]

       }



    IMS-ParametersFRX-Diff ::= SEQUENCE {

       voiceOverNR                                 ENUMERATED {supported} OPTIONAL,

       ...

    }

PDU session establishment request

    ...

    PDU session type = 0x3 (IPv4v6)

    SSC mode = 0x1 (1)

    Extended protocol configuration options:

      Ext = 1

      ...

      Protocol ID = 0x0001 (P-CSCF IPv6 Address Request)

      Data =

      Protocol ID = 0x000c (P-CSCF IPv4 Address Request)

      Data =

      ...

    PDU session ID = 5

    Request type = 0x1 (initial request)

    DNN = "ims"

PDU session establishment accept

    Authorized QoS rules:

      QoS rule 1:

      QoS rule identifier = 1

      Rule operation code = 1 (create new QoS rule)

      DQR = 1 (the QoS rule is the default QoS rule)

      Number of packet filters = 1

      Packet filter identifier = 15

      Packet filter direction = 3 (bidirectional)

      Match-all QoS rule precedence = 255

      QFI = 1

    Session AMBR:

      Session-AMBR for downlink = 3000000 kbps

      Session-AMBR for uplink = 1000000 kbps

    PDU address:

      PDU session type = 3 (IPv4v6)

      IPv6 = ::2001:468:3000:1

      IPv4 = 192.168.4.2

      Authorized QoS flow descriptions:

        QoS flow description 1:

        QFI = 1

        Operation code = 1 (create new QoS flow description)

        E = 1 (parameters list is included)

        Number of parameters = 1

        5QI = 5

    Extended protocol configuration options:

      Ext = 1

      ...

      Protocol ID = 0x000c (P-CSCF IPv4 Address)

      Data = 192.168.4.1

      Protocol ID = 0x0001 (P-CSCF IPv6 Address)

      Data = 2001:468:3000:1:0:0:0:0

      ...

    DNN = "ims.mnc001.mcc001.gprs"

    PDU session ID = 5

Overall SIP Procedure

Step

Direction

Message

1

UE --> CSCF

Request: REGISTER sip:msg.testdomain.com

2

UE <-- CSCF

Status: 200 OK (REGISTER)

3

UE --> CSCF

Request: SUBSCRIBE sip:+98765432100@test.3gpp.com

4

UE <-- CSCF

Status: 200 OK (SUBSCRIBE)

5

UE <-- CSCF

Request: NOTIFY sip:+98765432100@[2001:0:0:2::1]:5060

6

UE <-- CSCF

Request: NOTIFY sip:+98765432100@[2001:0:0:2::1]:5060

7

UE --> CSCF

Status: 200 OK (NOTIFY)

8

UE <-- CSCF

Request: INVITE sip:+98765432100@[2001:0:0:2::1]:5060

9

UE --> CSCF

Status: 183 Session Progress

10

UE <-- CSCF

Request: PRACK sip:+98765432100@[2001:0:0:2::1]:5060

11

UE --> CSCF

Status: 200 OK (PRACK)

12

UE <-- CSCF

Request: UPDATE sip:+98765432100@[2001:0:0:2::1]:5060

13

UE --> CSCF

Status: 200 OK (UPDATE

14

UE --> CSCF

Status: 180 Ringing

15

UE --> CSCF

EVS      107    PT=EVS, SSRC=0x33050, Seq=1, Time=277680, Mark, EVS Primary 13.2

16

UE <-- CSCF

EVS      107    PT=EVS, SSRC=0x33051, Seq=1, Time=277680, Mark, EVS Primary 13.2









[1]  Request: REGISTER sip:msg.testdomain.com



Internet Protocol Version 6, Src: 2001:0:0:2::1, Dst: 2001:0:0:11::2

Transmission Control Protocol, Src Port: 33841, Dst Port: 5060, Seq: 1001, Ack: 1, Len: 641

Session Initiation Protocol (REGISTER)

    Request-Line: REGISTER sip:msg.testdomain.com SIP/2.0

        Method: REGISTER

        Request-URI: sip:msg.lab.t-mobile.com

            Request-URI Host Part: msg.testdomain.com

        [Resent Packet: False]

    Message Header

        Via: SIP/2.0/TCP [2001:0:0:2::1]:5060;branch=z9hG4bK-524287-1---d2129e94b5f02ee5;rport;transport=TCP

        Max-Forwards: 70

        Proxy-Require: sec-agree

        Require: sec-agree

        Contact: <sip:+98765432100@[2001:0:0:2::1]:5060>;

                      +sip.instance="<urn:gsma:imei:35012167-001225-0>";q=1.0;

                      +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";video;+g.3gpp.smsip;text

            Contact URI: sip:+98765432100@[2001:0:0:2::1]:5060

            Contact parameter: +sip.instance="<urn:gsma:imei:35012167-001225-0>"

            Contact parameter: q=1.0

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: video

            Contact parameter: +g.3gpp.smsip

            Contact parameter: text

        To: <sip:+98765432100@test.3gpp.com>

            SIP to address: sip:+98765432100@test.3gpp.com

        From: <sip:+98765432100@test.3gpp.com>;tag=0896d778

            SIP from address: sip:+98765432100@test.3gpp.com

            SIP from tag: 0896d778

        Call-ID: j62XAO7FQuoiNGYpvV_3UA..@2001:0:0:2::1

        [Generated Call-ID: j62XAO7FQuoiNGYpvV_3UA..@2001:0:0:2::1]

        CSeq: 1 REGISTER

        Expires: 600000

        Allow: INVITE, ACK, OPTIONS, CANCEL, BYE, UPDATE, INFO, REFER, NOTIFY, MESSAGE, PRACK

        Supported: path, gruu, sec-agree

        User-Agent: T-Mobile VONR-RCSUP-ePDG-IR94-RTT-ussd-VVM SEC/SM-G998U G998USQU4AUG8

        Authorization: Digest username="001010987654321@test.3gpp.com",

                           realm="msg.testdomain.com",

                           uri="sip:msg.testdomain.com",nonce="",response="",algorithm=AKAv1-MD5

            Authentication Scheme: Digest

            Username: "001010987654321@test.3gpp.com"

            Realm: "msg.testdomain.com

            Authentication URI: "sip:msg.testdomain.com"

            Nonce Value: ""

            Digest Authentication Response: ""

            Algorithm: AKAv1-MD5

         [truncated]Security-Client: ipsec-3gpp;prot=esp;mod=trans;spi-c=31598;spi-s=31599;port-c=6101;

                    port-s=6100;alg=hmac-md5-96;ealg=des-ede3-cbc, ipsec-3gpp;prot=esp;mod=trans;

                    spi-c=31598;spi-s=31599;port-c=6101;port-s=6100;alg=hmac-md5-96;ea

        Content-Length: 0



[2]  Status: 200 OK (REGISTER)



Internet Protocol Version 6, Src: 2001:0:0:11::2, Dst: 2001:0:0:2::1

Transmission Control Protocol, Src Port: 5060, Dst Port: 33841, Seq: 1, Ack: 1642, Len: 683

Session Initiation Protocol (200)

    Status-Line: SIP/2.0 200 OK

        Status-Code: 200

        [Resent Packet: False]

    Message Header

        Max-Forwards: 70

        Via: SIP/2.0/TCP [2001:0:0:2::1]:5060;branch=z9hG4bK-524287-1-- d2129e94b5f02ee5;

                                                             rport=33841;transport=TCP

        From: <sip:+98765432100@test.3gpp.com>;tag=0896d778

            SIP from address: sip:+98765432100@test.3gpp.com

            SIP from tag: 0896d778

        To: <sip:+98765432100@test.3gpp.com>;tag=0896d778

            SIP to address: sip:+98765432100@test.3gpp.com

            SIP to tag: 0896d778

        Call-ID: j62XAO7FQuoiNGYpvV_3UA..@2001:0:0:2::1

        [Generated Call-ID: j62XAO7FQuoiNGYpvV_3UA..@2001:0:0:2::1]

        CSeq: 1 REGISTER

        Date: Sat, 27 Aug 2022 14:22:43 GMT

        Require: sec-agree

        P-Associated-URI: <sip:+98765432100@test.3gpp.com>

        Contact: <sip:+98765432100@[2001:0:0:2::1]:5060>;

                      +sip.instance="<urn:gsma:imei:35012167-001225-0>";q=1.0;

                      +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";video;

                      +g.3gpp.smsip;text;expires=600000

            Contact URI: sip:+98765432100@[2001:0:0:2::1]:5060

            Contact parameter: +sip.instance="<urn:gsma:imei:35012167-001225-0>"

            Contact parameter: q=1.0

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: video

            Contact parameter: +g.3gpp.smsip

            Contact parameter: text

            Contact parameter: expires=600000

        Content-Length: 0

        Path: <sip:[2001:0:0:11::2];lr>



[3]  Request: SUBSCRIBE sip:+98765432100@test.3gpp.com



Internet Protocol Version 6, Src: 2001:0:0:2::1, Dst: 2001:0:0:11::2

Transmission Control Protocol, Src Port: 33841, Dst Port: 5060, Seq: 2642, Ack: 684, Len: 85

[2 Reassembled TCP Segments (1085 bytes): #42(1000), #43(85)]

Session Initiation Protocol (SUBSCRIBE)

    Request-Line: SUBSCRIBE sip:+98765432100@test.3gpp.com SIP/2.0

        Method: SUBSCRIBE

        Request-URI: sip:+98765432100@test.3gpp.com

            Request-URI User Part: +98765432100

            E.164 number (MSISDN): 98765432100

            Request-URI Host Part: test.3gpp.com

        [Resent Packet: False]

    Message Header

        Via: SIP/2.0/TCP [2001:0:0:2::1]:5060;branch=z9hG4bK-524287-1---4b779d7664c314d5;rport;transport=TCP

        Max-Forwards: 70

        Route: <sip:[2001:0:0:11::2]:5060;lr>

        Proxy-Require: sec-agree

        Require: sec-agree

         [truncated]Contact: <sip:+98765432100@[2001:0:0:2::1]:5060>;

                                    +sip.instance="<urn:gsma:imei:35012167-001225-0>";

                                    +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

                                    +g.3gpp.mid-call;+g.3gpp.srvcc-alerting;+g.3gpp.ps2cs-srvcc-orig-p

            Contact URI: sip:+98765432100@[2001:0:0:2::1]:5060

            Contact parameter: +sip.instance="<urn:gsma:imei:35012167-001225-0>"

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: +g.3gpp.mid-call

            Contact parameter: +g.3gpp.srvcc-alerting

            Contact parameter: +g.3gpp.ps2cs-srvcc-orig-pre-alerting

            Contact parameter: video

            Contact parameter: +g.3gpp.smsip

            Contact parameter: text

        To: <sip:+98765432100@test.3gpp.com>

            SIP to address: sip:+98765432100@test.3gpp.com

        From: <sip:+98765432100@test.3gpp.com>;tag=6382823e

            SIP from address: sip:+98765432100@test.3gpp.com

            SIP from tag: 6382823e

        Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1

        [Generated Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1]

        CSeq: 1 SUBSCRIBE

        Expires: 600000

        Accept: application/reginfo+xml

        Allow: INVITE, ACK, OPTIONS, CANCEL, BYE, UPDATE, INFO, REFER, NOTIFY, MESSAGE, PRACK

        Supported: sec-agree

        User-Agent: Test VONR-RCSUP-ePDG-IR94-RTT-ussd-VVM SEC/SM-G998U G998USQU4AUG8

        Event: reg

        P-Preferred-Identity: <sip:+98765432100@test.3gpp.com>

            SIP PPI Address: sip:+98765432100@test.3gpp.com

        P-Access-Network-Info: 3GPP-NR-FDD;utran-cell-id-3gpp=00101000001000000000

        Content-Length: 0



[4] Status: 200 OK (SUBSCRIBE)



Internet Protocol Version 6, Src: 2001:0:0:11::2, Dst: 2001:0:0:2::1

Transmission Control Protocol, Src Port: 5060, Dst Port: 33841, Seq: 684, Ack: 2727, Len: 450

Session Initiation Protocol (200)

    Status-Line: SIP/2.0 200 OK

        Status-Code: 200

        [Resent Packet: False]

    Message Header

        Max-Forwards: 70

        Via: SIP/2.0/TCP [2001:0:0:2::1]:5060;branch=z9hG4bK-524287-1---4b779d7664c314d5;

                                                             rport=33841;transport=TCP

        From: <sip:+98765432100@test.3gpp.com>;tag=6382823e

            SIP from address: sip:+98765432100@test.3gpp.com

            SIP from tag: 6382823e

        To: <sip:+98765432100@test.3gpp.com>;tag=6382823e

            SIP to address: sip:+98765432100@test.3gpp.com

            SIP to tag: 6382823e

        Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1

        [Generated Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1]

        CSeq: 1 SUBSCRIBE

        Expires: 600000

        Contact: <sip:[2001:0:0:11::2]:5060;transport=tcp>

            Contact URI: sip:[2001:0:0:11::2]:5060;transport=tcp

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

        Content-Length: 0



[5] Request: NOTIFY sip:+98765432100@[2001:0:0:2::1]:5060



Internet Protocol Version 6, Src: 2001:0:0:11::2, Dst: 2001:0:0:2::1

User Datagram Protocol, Src Port: 5060, Dst Port: 5060

Session Initiation Protocol (NOTIFY)

    Request-Line: NOTIFY sip:+98765432100@[2001:0:0:2::1]:5060 SIP/2.0

        Method: NOTIFY

        Request-URI: sip:+98765432100@[2001:0:0:2::1]:5060

            Request-URI User Part: +98765432100

            E.164 number (MSISDN): 98765432100

                Country Code: Iran (Islamic Republic of) (98)

            Request-URI Host Part: [2001:0:0:2::1]

            Request-URI Host Port: 5060

        [Resent Packet: False]

    Message Header

        Via: SIP/2.0/UDP [2001:0:0:11::2]:5060;

              branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a6404;rport;transport=udp

            Transport: UDP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 5060

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a6404

            RPort: rport

            transport=udp

        Max-Forwards: 69

        Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1

        [Generated Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1]

        CSeq: 1 NOTIFY

            Sequence Number: 1

            Method: NOTIFY

        To: <sip:+98765432100@test.3gpp.com>;tag=6382823e

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

            SIP to tag: 6382823e

        From: <sip:+98765432100@test.3gpp.com>;tag=6382823e

            SIP from address: sip:+98765432100@test.3gpp.com

                SIP from address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 6382823e

        Contact: <sip:[2001:0:0:11::2]:5060;transport=tcp>

            Contact URI: sip:[2001:0:0:11::2]:5060;transport=tcp

                Contact URI Host Part: [2001:0:0:11::2]

                Contact URI Host Port: 5060

                Contact URI parameter: transport=tcp

        Event: reg

        Subscription-State: active;expires=600000

        Content-Type: application/reginfo+xml

        Content-Length: 678

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr

    Message Body

        eXtensible Markup Language

            <?xml

                version="1.0"

                encoding="UTF-8"

                ?>

            <reginfo

                version="0"

                state="full"

                xmlns="urn:ietf:params:xml:ns:reginfo">

                <registration

                    aor="sip:+98765432100@test.3gpp.com"

                    id="a1"

                    state="active">

                    <contact

                        id="1"

                        state="active"

                        event="registered">

                        <uri>

                            sip:+98765432100@[2001:0:0:2::1]:5060

                            </uri>

                        <unknown-param

                            name="+sip.instance">

                            "&lt;urn:gsma:imei:35012167-001225-0&gt;"

                            </unknown-param>

                        <unknown-param

                            name="+g.3gpp.icsi-ref">

                            "urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

                            </unknown-param>

                        <unknown-param

                            name="video"/>

                        <unknown-param

                            name="+g.3gpp.smsip"/>

                        <unknown-param

                            name="text"/>

                        </contact>

                    </registration>

                </reginfo>



[6] Request: NOTIFY sip:+98765432100@[2001:0:0:2::1]:5060



Internet Protocol Version 6, Src: 2001:0:0:11::2, Dst: 2001:0:0:2::1

User Datagram Protocol, Src Port: 5060, Dst Port: 5060

Session Initiation Protocol (NOTIFY)

    Request-Line: NOTIFY sip:+98765432100@[2001:0:0:2::1]:5060 SIP/2.0

        Method: NOTIFY

        Request-URI: sip:+98765432100@[2001:0:0:2::1]:5060

            Request-URI User Part: +98765432100

            E.164 number (MSISDN): 98765432100

                Country Code: Iran (Islamic Republic of) (98)

            Request-URI Host Part: [2001:0:0:2::1]

            Request-URI Host Port: 5060

        [Resent Packet: True]

        [Suspected resend of frame: 49]

    Message Header

        Via: SIP/2.0/UDP [2001:0:0:11::2]:5060;

               branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a6404;rport;transport=udp

            Transport: UDP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 5060

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a6404

            RPort: rport

            transport=udp

        Max-Forwards: 69

        Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1

        [Generated Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1]

        CSeq: 1 NOTIFY

            Sequence Number: 1

            Method: NOTIFY

        To: <sip:+98765432100@test.3gpp.com>;tag=6382823e

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

            SIP to tag: 6382823e

        From: <sip:+98765432100@test.3gpp.com>;tag=6382823e

            SIP from address: sip:+98765432100@test.3gpp.com

                SIP from address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 6382823e

        Contact: <sip:[2001:0:0:11::2]:5060;transport=tcp>

            Contact URI: sip:[2001:0:0:11::2]:5060;transport=tcp

                Contact URI Host Part: [2001:0:0:11::2]

                Contact URI Host Port: 5060

                Contact URI parameter: transport=tcp

        Event: reg

        Subscription-State: active;expires=600000

        Content-Type: application/reginfo+xml

        Content-Length: 678

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr

    Message Body

        eXtensible Markup Language

            <?xml

                version="1.0"

                encoding="UTF-8"

                ?>

            <reginfo

                version="0"

                state="full"

                xmlns="urn:ietf:params:xml:ns:reginfo">

                <registration

                    aor="sip:+98765432100@test.3gpp.com"

                    id="a1"

                    state="active">

                    <contact

                        id="1"

                        state="active"

                        event="registered">

                        <uri>

                            sip:+98765432100@[2001:0:0:2::1]:5060

                            </uri>

                        <unknown-param

                            name="+sip.instance">

                            "&lt;urn:gsma:imei:35012167-001225-0&gt;"

                            </unknown-param>

                        <unknown-param

                            name="+g.3gpp.icsi-ref">

                            "urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

                            </unknown-param>

                        <unknown-param

                            name="video"/>

                        <unknown-param

                            name="+g.3gpp.smsip"/>

                        <unknown-param

                            name="text"/>

                        </contact>

                    </registration>

                </reginfo>



[7] Status: 200 OK (NOTIFY)



Internet Protocol Version 6, Src: 2001:0:0:2::1, Dst: 2001:0:0:11::2

User Datagram Protocol, Src Port: 5060, Dst Port: 5060

Session Initiation Protocol (200)

    Status-Line: SIP/2.0 200 OK

        Status-Code: 200

        [Resent Packet: False]

        [Request Frame: 49]

        [Response Time (ms): 28]

    Message Header

        Via: SIP/2.0/UDP [2001:0:0:11::2]:5060;

              branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a6404;rport;transport=udp

            Transport: UDP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 5060

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a6404

            RPort: rport

            transport=udp

        Max-Forwards: 70

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr

         [truncated]Contact: <sip:+98765432100@[2001:0:0:2::1]:5060>;

                                      +sip.instance="<urn:gsma:imei:35012167-001225-0>";

                                      +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

                                      +g.3gpp.mid-call;+g.3gpp.srvcc-alerting;+g.3gpp.ps2cs-srvcc-orig-p

            Contact URI: sip:+98765432100@[2001:0:0:2::1]:5060

                Contact URI User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                Contact URI Host Part: [2001:0:0:2::1]

                Contact URI Host Port: 5060

            Contact parameter: +sip.instance="<urn:gsma:imei:35012167-001225-0>"

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: +g.3gpp.mid-call

            Contact parameter: +g.3gpp.srvcc-alerting

            Contact parameter: +g.3gpp.ps2cs-srvcc-orig-pre-alerting

            Contact parameter: video

            Contact parameter: +g.3gpp.smsip

            Contact parameter: text

        To: <sip:+98765432100@test.3gpp.com>;tag=6382823e

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

            SIP to tag: 6382823e

        From: <sip:+98765432100@test.3gpp.com>;tag=6382823e

            SIP from address: sip:+98765432100@test.3gpp.com

                SIP from address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 6382823e

        Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1

        [Generated Call-ID: SUnkKfWjftMfBtyk4UTOhw..@2001:0:0:2::1]

        CSeq: 1 NOTIFY

            Sequence Number: 1

            Method: NOTIFY

        User-Agent: Test VONR-RCSUP-ePDG-IR94-RTT-ussd-VVM SEC/SM-G998U G998USQU4AUG8

        P-Access-Network-Info: 3GPP-NR-FDD;utran-cell-id-3gpp=00101000001000000000

            access-type: 3GPP-NR-FDD

            utran-cell-id-3gpp: 00101000001000000000

        Content-Length: 0



[8] Request: INVITE sip:+98765432100@[2001:0:0:2::1]:5060



Internet Protocol Version 6, Src: 2001:0:0:11::2, Dst: 2001:0:0:2::1

Transmission Control Protocol, Src Port: 58024, Dst Port: 5060, Seq: 1, Ack: 1, Len: 2069

Session Initiation Protocol (INVITE)

    Request-Line: INVITE sip:+98765432100@[2001:0:0:2::1]:5060 SIP/2.0

        Method: INVITE

        Request-URI: sip:+98765432100@[2001:0:0:2::1]:5060

            Request-URI User Part: +98765432100

            E.164 number (MSISDN): 98765432100

                Country Code: Iran (Islamic Republic of) (98)

            Request-URI Host Part: [2001:0:0:2::1]

            Request-URI Host Port: 5060

        [Resent Packet: False]

    Message Header

        Via: SIP/2.0/TCP [2001:0:0:11::2]:58024;branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a6407;

                                                                rport;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 58024

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a6407

            RPort: rport

            transport=tcp

        Via: SIP/2.0/TCP [2001:0:0:11::2]:57994;

              branch=z9hG4bK9216066c0d2b4e51b61f22f36db61549c6782a09;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 57994

            Branch: z9hG4bK9216066c0d2b4e51b61f22f36db61549c6782a09

            transport=tcp

        Max-Forwards: 69

        Call-ID: 80a0494490184dc1b46f8994e9e4efc7

        [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]

        CSeq: 57001 INVITE

            Sequence Number: 57001

            Method: INVITE

        To: sip:+98765432100@test.3gpp.com

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

        From: sip:0123456789@test.3gpp.com;tag=1111111111

            SIP from address: sip:0123456789@test.3gpp.com

                SIP from address User Part: 0123456789

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 1111111111

        Feature-Caps: *;+g.3gpp.srvcc-alerting;+g.3gpp.mid-call

            Feature Cap: *

            Feature Cap: g.3gpp.srvcc-alerting

            Feature Cap: g.3gpp.mid-call

        Allow: ACK, BYE, CANCEL, INVITE, PRACK, UPDATE

        Supported: 100rel

        Supported: precondition

        Accept-Contact: *;+g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";audio;require;explicit

        Accept: application/sdp

        P-Asserted-Service: urn:urn-7:3gpp-service.ims.icsi.mmtel

        User-Agent: Anritsu-VirtualUA/ec175bc7c

        Content-Type: application/sdp

        Content-Length: 848

        Contact: <sip:0123456789@[2001:0:0:11::2]:57994;transport=tcp>;

                      +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";audio;video;text;

                      +g.3gpp.srvcc-alerting;+g.3gpp.mid-call

            Contact URI: sip:0123456789@[2001:0:0:11::2]:57994;transport=tcp

                Contact URI User Part: 0123456789

                Contact URI Host Part: [2001:0:0:11::2]

                Contact URI Host Port: 57994

                Contact URI parameter: transport=tcp

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: audio

            Contact parameter: video

            Contact parameter: text

            Contact parameter: +g.3gpp.srvcc-alerting

            Contact parameter: +g.3gpp.mid-call

        Privacy: none

        P-Asserted-Identity: <sip:0123456789@test.3gpp.com>

            SIP PAI Address: sip:0123456789@test.3gpp.com

                SIP PAI User Part: 0123456789

                SIP PAI Host Part: test.3gpp.com

        P-Called-Party-ID: <sip:+98765432100@test.3gpp.com>

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr

    Message Body

        Session Description Protocol

            Session Description Protocol Version (v): 0

            Owner/Creator, Session Id (o): anritsu 733 90488 IN IP6 2001:0:0:11::2

                Owner Username: anritsu

                Session ID: 733

                Session Version: 90488

                Owner Network Type: IN

                Owner Address Type: IP6

                Owner Address: 2001:0:0:11::2

            Session Name (s): -

            Session Information (i): A VOIP Session

            Connection Information (c): IN IP6 2001:0:0:11::2

                Connection Network Type: IN

                Connection Address Type: IP6

                Connection Address: 2001:0:0:11::2

            Time Description, active time (t): 0 0

                Session Start Time: 0

                Session Stop Time: 0

            Media Description, name and address (m): audio 32000 RTP/AVP 96 97 98 99 100 8 0 101 102

                Media Type: audio

                Media Port: 32000

                Media Protocol: RTP/AVP

                Media Format: DynamicRTP-Type-96

                Media Format: DynamicRTP-Type-97

                Media Format: DynamicRTP-Type-98

                Media Format: DynamicRTP-Type-99

                Media Format: DynamicRTP-Type-100

                Media Format: ITU-T G.711 PCMA

                Media Format: ITU-T G.711 PCMU

                Media Format: DynamicRTP-Type-101

                Media Format: DynamicRTP-Type-102

            Bandwidth Information (b): AS:153

                Bandwidth Modifier: AS [Application Specific (RTP session bandwidth)]

                Bandwidth Value: 153 kb/s

            Bandwidth Information (b): RS:800

                Bandwidth Modifier: RS

                Bandwidth Value: 800

            Bandwidth Information (b): RR:2400

                Bandwidth Modifier: RR

                Bandwidth Value: 2400

            Media Attribute (a): ptime:20

                Media Attribute Fieldname: ptime

                Media Attribute Value: 20

            Media Attribute (a): maxptime:240

                Media Attribute Fieldname: maxptime

                Media Attribute Value: 240

            Media Attribute (a): rtpmap:96 EVS/16000/1

                Media Attribute Fieldname: rtpmap

                Media Format: 96

                MIME Type: EVS

                Sample Rate: 16000

            Media Attribute (a): fmtp:96 max-red=220

                Media Attribute Fieldname: fmtp

                Media Format: 96 [EVS]

                Media format specific parameters: max-red=220

            Media Attribute (a): rtpmap:97 AMR-WB/16000/1

                Media Attribute Fieldname: rtpmap

                Media Format: 97

                MIME Type: AMR-WB

                Sample Rate: 16000

            Media Attribute (a): fmtp:97 mode-change-capability=2

                Media Attribute Fieldname: fmtp

                Media Format: 97 [AMR-WB]

                Media format specific parameters: mode-change-capability=2

            Media Attribute (a): rtpmap:98 AMR-WB/16000/1

                Media Attribute Fieldname: rtpmap

                Media Format: 98

                MIME Type: AMR-WB

                Sample Rate: 16000

            Media Attribute (a): fmtp:98 octet-align=1; mode-change-capability=2

                Media Attribute Fieldname: fmtp

                Media Format: 98 [AMR-WB]

                Media format specific parameters: octet-align=1

                Media format specific parameters: mode-change-capability=2

            Media Attribute (a): rtpmap:99 AMR/8000/1

                Media Attribute Fieldname: rtpmap

                Media Format: 99

                MIME Type: AMR

                Sample Rate: 8000

            Media Attribute (a): fmtp:99 mode-change-capability=2

                Media Attribute Fieldname: fmtp

                Media Format: 99 [AMR]

                Media format specific parameters: mode-change-capability=2

            Media Attribute (a): rtpmap:100 AMR/8000/1

                Media Attribute Fieldname: rtpmap

                Media Format: 100

                MIME Type: AMR

                Sample Rate: 8000

            Media Attribute (a): fmtp:100 octet-align=1; mode-change-capability=2

                Media Attribute Fieldname: fmtp

                Media Format: 100 [AMR]

                Media format specific parameters: octet-align=1

                Media format specific parameters: mode-change-capability=2

            Media Attribute (a): rtpmap:8 PCMA/8000/1

                Media Attribute Fieldname: rtpmap

                Media Format: 8

                MIME Type: PCMA

                Sample Rate: 8000

            Media Attribute (a): rtpmap:0 PCMU/8000/1

                Media Attribute Fieldname: rtpmap

                Media Format: 0

                MIME Type: PCMU

                Sample Rate: 8000

            Media Attribute (a): rtpmap:101 telephone-event/16000

                Media Attribute Fieldname: rtpmap

                Media Format: 101

                MIME Type: telephone-event

                Sample Rate: 16000

            Media Attribute (a): fmtp:101 0-15

                Media Attribute Fieldname: fmtp

                Media Format: 101 [telephone-event]

                Media format specific parameters: 0-15

            Media Attribute (a): rtpmap:102 telephone-event/8000

                Media Attribute Fieldname: rtpmap

                Media Format: 102

                MIME Type: telephone-event

                Sample Rate: 8000

            Media Attribute (a): fmtp:102 0-15

                Media Attribute Fieldname: fmtp

                Media Format: 102 [telephone-event]

                Media format specific parameters: 0-15

            Media Attribute (a): mid:0

                Media Attribute Fieldname: mid

                Media Attribute Value: 0

            Media Attribute (a): rtcp:32001

                Media Attribute Fieldname: rtcp

                Media Attribute Value: 32001

            Media Attribute (a): curr:qos local none

                Media Attribute Fieldname: curr

                Media Attribute Value: qos local none

            Media Attribute (a): curr:qos remote none

                Media Attribute Fieldname: curr

                Media Attribute Value: qos remote none

            Media Attribute (a): des:qos mandatory local sendrecv

                Media Attribute Fieldname: des

                Media Attribute Value: qos mandatory local sendrecv

            Media Attribute (a): des:qos optional remote sendrecv

                Media Attribute Fieldname: des

                Media Attribute Value: qos optional remote sendrecv

            Media Attribute (a): sendrecv

            [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]



[9] Status: 183 Session Progress



Internet Protocol Version 6, Src: 2001:0:0:2::1, Dst: 2001:0:0:11::2

Transmission Control Protocol, Src Port: 5060, Dst Port: 58024, Seq: 1001, Ack: 2070, Len: 574

Session Initiation Protocol (183)

    Status-Line: SIP/2.0 183 Session Progress

        Status-Code: 183

        [Resent Packet: False]

    Message Header

        Via: SIP/2.0/TCP [2001:0:0:11::2]:58024;branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a6407;rport;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 58024

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a6407

            RPort: rport

            transport=tcp

        Via: SIP/2.0/TCP [2001:0:0:11::2]:57994;branch=z9hG4bK9216066c0d2b4e51b61f22f36db61549c6782a09;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 57994

            Branch: z9hG4bK9216066c0d2b4e51b61f22f36db61549c6782a09

            transport=tcp

        Max-Forwards: 70

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr

        Require: precondition, 100rel

         [truncated]Contact: <sip:+98765432100@[2001:0:0:2::1]:5060>;

                                     +sip.instance="<urn:gsma:imei:35012167-001225-0>";

                                     +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

                                     +g.3gpp.mid-call;+g.3gpp.srvcc-alerting;+g.3gpp.ps2cs-srvcc-orig-p

            Contact URI: sip:+98765432100@[2001:0:0:2::1]:5060

                Contact URI User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                Contact URI Host Part: [2001:0:0:2::1]

                Contact URI Host Port: 5060

            Contact parameter: +sip.instance="<urn:gsma:imei:35012167-001225-0>"

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: +g.3gpp.mid-call

            Contact parameter: +g.3gpp.srvcc-alerting

            Contact parameter: +g.3gpp.ps2cs-srvcc-orig-pre-alerting

            Contact parameter: video

            Contact parameter: text

        To: <sip:+98765432100@test.3gpp.com>;tag=6c0f9425

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

            SIP to tag: 6c0f9425

        From: <sip:0123456789@test.3gpp.com>;tag=1111111111

            SIP from address: sip:0123456789@test.3gpp.com

                SIP from address User Part: 0123456789

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 1111111111

        Call-ID: 80a0494490184dc1b46f8994e9e4efc7

        [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]

        CSeq: 57001 INVITE

            Sequence Number: 57001

            Method: INVITE

        Allow: INVITE, ACK, OPTIONS, CANCEL, BYE, UPDATE, INFO, REFER, NOTIFY, MESSAGE, PRACK

        Content-Type: application/sdp

        Supported: timer, 100rel, precondition

        User-Agent: T-Mobile VONR-RCSUP-ePDG-IR94-RTT-ussd-VVM SEC/SM-G998U G998USQU4AUG8

        RSeq: 1

        P-Access-Network-Info: 3GPP-NR-FDD;utran-cell-id-3gpp=00101000001000000000

            access-type: 3GPP-NR-FDD

            utran-cell-id-3gpp: 00101000001000000000

        Content-Length: 464

    Message Body

        Session Description Protocol

            Session Description Protocol Version (v): 0

            Owner/Creator, Session Id (o): SAMSUNG-IMS-UE 175962184 0 IN IP6 2001:0:0:2::1

                Owner Username: SAMSUNG-IMS-UE

                Session ID: 175962184

                Session Version: 0

                Owner Network Type: IN

                Owner Address Type: IP6

                Owner Address: 2001:0:0:2::1

            Session Name (s): SS VOIP

            Connection Information (c): IN IP6 2001:0:0:2::1

                Connection Network Type: IN

                Connection Address Type: IP6

                Connection Address: 2001:0:0:2::1

            Time Description, active time (t): 0 0

                Session Start Time: 0

                Session Stop Time: 0

            Media Description, name and address (m): audio 1234 RTP/AVP 96 101

                Media Type: audio

                Media Port: 1234

                Media Protocol: RTP/AVP

                Media Format: DynamicRTP-Type-96

                Media Format: DynamicRTP-Type-101

            Bandwidth Information (b): AS:38

                Bandwidth Modifier: AS [Application Specific (RTP session bandwidth)]

                Bandwidth Value: 38 kb/s

            Bandwidth Information (b): RS:0

                Bandwidth Modifier: RS

                Bandwidth Value: 0

            Bandwidth Information (b): RR:2500

                Bandwidth Modifier: RR

                Bandwidth Value: 2500

            Media Attribute (a): rtpmap:96 EVS/16000

                Media Attribute Fieldname: rtpmap

                Media Format: 96

                MIME Type: EVS

                Sample Rate: 16000

            Media Attribute (a): fmtp:96 bw=nb-swb;br=5.9-13.2;max-red=220

                Media Attribute Fieldname: fmtp

                Media Format: 96 [EVS]

                Media format specific parameters: bw=nb-swb

                Media format specific parameters: br=5.9-13.2

                Media format specific parameters: max-red=220

            Media Attribute (a): rtpmap:101 telephone-event/16000

                Media Attribute Fieldname: rtpmap

                Media Format: 101

                MIME Type: telephone-event

                Sample Rate: 16000

            Media Attribute (a): fmtp:101 0-15

                Media Attribute Fieldname: fmtp

                Media Format: 101 [telephone-event]

                Media format specific parameters: 0-15

            Media Attribute (a): ptime:20

                Media Attribute Fieldname: ptime

                Media Attribute Value: 20

            Media Attribute (a): maxptime:240

                Media Attribute Fieldname: maxptime

                Media Attribute Value: 240

            Media Attribute (a): sendrecv

            Media Attribute (a): curr:qos local none

                Media Attribute Fieldname: curr

                Media Attribute Value: qos local none

            Media Attribute (a): curr:qos remote none

                Media Attribute Fieldname: curr

                Media Attribute Value: qos remote none

            Media Attribute (a): des:qos mandatory local sendrecv

                Media Attribute Fieldname: des

                Media Attribute Value: qos mandatory local sendrecv

            Media Attribute (a): des:qos mandatory remote sendrecv

                Media Attribute Fieldname: des

                Media Attribute Value: qos mandatory remote sendrecv

            Media Attribute (a): conf:qos remote sendrecv

                Media Attribute Fieldname: conf

                Media Attribute Value: qos remote sendrecv

            [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]



[10] Request: PRACK sip:+98765432100@[2001:0:0:2::1]:5060



Internet Protocol Version 6, Src: 2001:0:0:11::2, Dst: 2001:0:0:2::1

User Datagram Protocol, Src Port: 5060, Dst Port: 5060

Session Initiation Protocol (PRACK)

    Request-Line: PRACK sip:+98765432100@[2001:0:0:2::1]:5060 SIP/2.0

        Method: PRACK

        Request-URI: sip:+98765432100@[2001:0:0:2::1]:5060

            Request-URI User Part: +98765432100

            E.164 number (MSISDN): 98765432100

                Country Code: Iran (Islamic Republic of) (98)

            Request-URI Host Part: [2001:0:0:2::1]

            Request-URI Host Port: 5060

        [Resent Packet: False]

    Message Header

        Via: SIP/2.0/UDP [2001:0:0:11::2]:5060;branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a6409;rport;transport=udp

            Transport: UDP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 5060

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a6409

            RPort: rport

            transport=udp

        Via: SIP/2.0/UDP [2001:0:0:11::2]:64066;branch=z9hG4bK9216066c0d2b4e51b61f22f36db61549dc00911e

            Transport: UDP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 64066

            Branch: z9hG4bK9216066c0d2b4e51b61f22f36db61549dc00911e

        Max-Forwards: 69

        Call-ID: 80a0494490184dc1b46f8994e9e4efc7

        [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]

        CSeq: 57002 PRACK

            Sequence Number: 57002

            Method: PRACK

        To: <sip:+98765432100@test.3gpp.com>;tag=6c0f9425

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

            SIP to tag: 6c0f9425

        From: <sip:0123456789@test.3gpp.com>;tag=1111111111

            SIP from address: sip:0123456789@test.3gpp.com

                SIP from address User Part: 0123456789

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 1111111111

        RAck: 1 57001 INVITE

            RSeq Sequence Number: 1

            CSeq Sequence Number: 57001

            CSeq Method: INVITE

        Require: precondition

        Require: 100rel

        Supported: precondition

        Supported: 100rel

        User-Agent: Anritsu-VirtualUA/ec175bc7c

        Content-Length: 0

        Privacy: none

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr



[11] Status: 200 OK (PRACK)



Internet Protocol Version 6, Src: 2001:0:0:2::1, Dst: 2001:0:0:11::2

User Datagram Protocol, Src Port: 5060, Dst Port: 5060

Session Initiation Protocol (200)

    Status-Line: SIP/2.0 200 OK

        Status-Code: 200

        [Resent Packet: False]

        [Request Frame: 182]

        [Response Time (ms): 40]

    Message Header

        Via: SIP/2.0/UDP [2001:0:0:11::2]:5060;branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a6409;rport;transport=udp

            Transport: UDP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 5060

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a6409

            RPort: rport

            transport=udp

        Via: SIP/2.0/UDP [2001:0:0:11::2]:64066;branch=z9hG4bK9216066c0d2b4e51b61f22f36db61549dc00911e

            Transport: UDP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 64066

            Branch: z9hG4bK9216066c0d2b4e51b61f22f36db61549dc00911e

        Max-Forwards: 70

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr

         [truncated]Contact: <sip:+98765432100@[2001:0:0:2::1]:5060>;

                                +sip.instance="<urn:gsma:imei:35012167-001225-0>";

                                +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

                                +g.3gpp.mid-call;+g.3gpp.srvcc-alerting;+g.3gpp.ps2cs-srvcc-orig-p

            Contact URI: sip:+98765432100@[2001:0:0:2::1]:5060

                Contact URI User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                Contact URI Host Part: [2001:0:0:2::1]

                Contact URI Host Port: 5060

            Contact parameter: +sip.instance="<urn:gsma:imei:35012167-001225-0>"

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: +g.3gpp.mid-call

            Contact parameter: +g.3gpp.srvcc-alerting

            Contact parameter: +g.3gpp.ps2cs-srvcc-orig-pre-alerting

            Contact parameter: video

            Contact parameter: text

        To: <sip:+98765432100@test.3gpp.com>;tag=6c0f9425

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

            SIP to tag: 6c0f9425

        From: <sip:0123456789@test.3gpp.com>;tag=1111111111

            SIP from address: sip:0123456789@test.3gpp.com

                SIP from address User Part: 0123456789

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 1111111111

        Call-ID: 80a0494490184dc1b46f8994e9e4efc7

        [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]

        CSeq: 57002 PRACK

            Sequence Number: 57002

            Method: PRACK

        User-Agent: T-Mobile VONR-RCSUP-ePDG-IR94-RTT-ussd-VVM SEC/SM-G998U G998USQU4AUG8

        P-Access-Network-Info: 3GPP-NR-FDD;utran-cell-id-3gpp=00101000001000000000

            access-type: 3GPP-NR-FDD

            utran-cell-id-3gpp: 00101000001000000000

        Content-Length: 0



[12] Request: UPDATE sip:+98765432100@[2001:0:0:2::1]:5060



Internet Protocol Version 6, Src: 2001:0:0:11::2, Dst: 2001:0:0:2::1

Transmission Control Protocol, Src Port: 58024, Dst Port: 5060, Seq: 2070, Ack: 1575, Len: 1481

Session Initiation Protocol (UPDATE)

    Request-Line: UPDATE sip:+98765432100@[2001:0:0:2::1]:5060 SIP/2.0

        Method: UPDATE

        Request-URI: sip:+98765432100@[2001:0:0:2::1]:5060

            Request-URI User Part: +98765432100

            E.164 number (MSISDN): 98765432100

                Country Code: Iran (Islamic Republic of) (98)

            Request-URI Host Part: [2001:0:0:2::1]

            Request-URI Host Port: 5060

        [Resent Packet: False]

    Message Header

        Via: SIP/2.0/TCP [2001:0:0:11::2]:58024;

              branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a640c;rport;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 58024

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a640c

            RPort: rport

            transport=tcp

        Via: SIP/2.0/TCP [2001:0:0:11::2]:57994;

              branch=z9hG4bK9216066c0d2b4e51b61f22f36db6154999fc9d3b;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 57994

            Branch: z9hG4bK9216066c0d2b4e51b61f22f36db6154999fc9d3b

            transport=tcp

        Max-Forwards: 69

        Call-ID: 80a0494490184dc1b46f8994e9e4efc7

        [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]

        CSeq: 57003 UPDATE

            Sequence Number: 57003

            Method: UPDATE

        To: <sip:+98765432100@test.3gpp.com>;tag=6c0f9425

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

            SIP to tag: 6c0f9425

        From: <sip:0123456789@test.3gpp.com>;tag=1111111111

            SIP from address: sip:0123456789@test.3gpp.com

                SIP from address User Part: 0123456789

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 1111111111

        Supported: 100rel

        Supported: precondition

        Require: precondition

        Allow: ACK, BYE, CANCEL, INVITE, PRACK, UPDATE

        Accept-Contact: *;+g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";require;explicit

        User-Agent: Anritsu-VirtualUA/ec175bc7c

        Content-Type: application/sdp

        Content-Length: 473

        Contact: <sip:0123456789@[2001:0:0:11::2]:57994;transport=tcp>;

                    +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";audio;video;text;

                    +g.3gpp.srvcc-alerting;+g.3gpp.mid-call

            Contact URI: sip:0123456789@[2001:0:0:11::2]:57994;transport=tcp

                Contact URI User Part: 0123456789

                Contact URI Host Part: [2001:0:0:11::2]

                Contact URI Host Port: 57994

                Contact URI parameter: transport=tcp

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: audio

            Contact parameter: video

            Contact parameter: text

            Contact parameter: +g.3gpp.srvcc-alerting

            Contact parameter: +g.3gpp.mid-call

        Privacy: none

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr

    Message Body

        Session Description Protocol

            Session Description Protocol Version (v): 0

            Owner/Creator, Session Id (o): anritsu 733 90489 IN IP6 2001:0:0:11::2

                Owner Username: anritsu

                Session ID: 733

                Session Version: 90489

                Owner Network Type: IN

                Owner Address Type: IP6

                Owner Address: 2001:0:0:11::2

            Session Name (s): -

            Session Information (i): A VOIP Session

            Connection Information (c): IN IP6 2001:0:0:11::2

                Connection Network Type: IN

                Connection Address Type: IP6

                Connection Address: 2001:0:0:11::2

            Time Description, active time (t): 0 0

                Session Start Time: 0

                Session Stop Time: 0

            Media Description, name and address (m): audio 32000 RTP/AVP 96 101

                Media Type: audio

                Media Port: 32000

                Media Protocol: RTP/AVP

                Media Format: DynamicRTP-Type-96

                Media Format: DynamicRTP-Type-101

            Bandwidth Information (b): AS:38

                Bandwidth Modifier: AS [Application Specific (RTP session bandwidth)]

                Bandwidth Value: 38 kb/s

            Bandwidth Information (b): RS:0

                Bandwidth Modifier: RS

                Bandwidth Value: 0

            Bandwidth Information (b): RR:2500

                Bandwidth Modifier: RR

                Bandwidth Value: 2500

            Media Attribute (a): ptime:20

                Media Attribute Fieldname: ptime

                Media Attribute Value: 20

            Media Attribute (a): maxptime:240

                Media Attribute Fieldname: maxptime

                Media Attribute Value: 240

            Media Attribute (a): rtpmap:96 EVS/16000/1

                Media Attribute Fieldname: rtpmap

                Media Format: 96

                MIME Type: EVS

                Sample Rate: 16000

            Media Attribute (a): fmtp:96 bw=nb-swb; br=5.9-13.2; max-red=220

                Media Attribute Fieldname: fmtp

                Media Format: 96 [EVS]

                Media format specific parameters: bw=nb-swb

                Media format specific parameters: br=5.9-13.2

                Media format specific parameters: max-red=220

            Media Attribute (a): rtpmap:101 telephone-event/16000

                Media Attribute Fieldname: rtpmap

                Media Format: 101

                MIME Type: telephone-event

                Sample Rate: 16000

            Media Attribute (a): fmtp:101 0-15

                Media Attribute Fieldname: fmtp

                Media Format: 101 [telephone-event]

                Media format specific parameters: 0-15

            Media Attribute (a): mid:0

                Media Attribute Fieldname: mid

                Media Attribute Value: 0

            Media Attribute (a): rtcp:32001

                Media Attribute Fieldname: rtcp

                Media Attribute Value: 32001

            Media Attribute (a): curr:qos local sendrecv

                Media Attribute Fieldname: curr

                Media Attribute Value: qos local sendrecv

            Media Attribute (a): curr:qos remote none

                Media Attribute Fieldname: curr

                Media Attribute Value: qos remote none

            Media Attribute (a): des:qos mandatory local sendrecv

                Media Attribute Fieldname: des

                Media Attribute Value: qos mandatory local sendrecv

            Media Attribute (a): des:qos mandatory remote sendrecv

                Media Attribute Fieldname: des

                Media Attribute Value: qos mandatory remote sendrecv

            Media Attribute (a): sendrecv

            [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]



[13] Status: 200 OK (UPDATE)



Internet Protocol Version 6, Src: 2001:0:0:2::1, Dst: 2001:0:0:11::2

Transmission Control Protocol, Src Port: 5060, Dst Port: 58024, Seq: 2575, Ack: 3551, Len: 556

Session Initiation Protocol (200)

    Status-Line: SIP/2.0 200 OK

        Status-Code: 200

        [Resent Packet: False]

    Message Header

        Via: SIP/2.0/TCP [2001:0:0:11::2]:58024;branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a640c;rport;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 58024

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a640c

            RPort: rport

            transport=tcp

        Via: SIP/2.0/TCP [2001:0:0:11::2]:57994;branch=z9hG4bK9216066c0d2b4e51b61f22f36db6154999fc9d3b;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 57994

            Branch: z9hG4bK9216066c0d2b4e51b61f22f36db6154999fc9d3b

            transport=tcp

        Max-Forwards: 70

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr

        Require: precondition

         [truncated]Contact: <sip:+98765432100@[2001:0:0:2::1]:5060>;

                   +sip.instance="<urn:gsma:imei:35012167-001225-0>";

                   +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";

                   +g.3gpp.mid-call;+g.3gpp.srvcc-alerting;+g.3gpp.ps2cs-srvcc-orig-p

            Contact URI: sip:+98765432100@[2001:0:0:2::1]:5060

                Contact URI User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                Contact URI Host Part: [2001:0:0:2::1]

                Contact URI Host Port: 5060

            Contact parameter: +sip.instance="<urn:gsma:imei:35012167-001225-0>"

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: +g.3gpp.mid-call

            Contact parameter: +g.3gpp.srvcc-alerting

            Contact parameter: +g.3gpp.ps2cs-srvcc-orig-pre-alerting

            Contact parameter: video

            Contact parameter: text

        To: <sip:+98765432100@test.3gpp.com>;tag=6c0f9425

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

            SIP to tag: 6c0f9425

        From: <sip:0123456789@test.3gpp.com>;tag=1111111111

            SIP from address: sip:0123456789@test.3gpp.com

                SIP from address User Part: 0123456789

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 1111111111

        Call-ID: 80a0494490184dc1b46f8994e9e4efc7

        [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]

        CSeq: 57003 UPDATE

            Sequence Number: 57003

            Method: UPDATE

        Session-Expires: 1800;refresher=uas

        Allow: INVITE, ACK, OPTIONS, CANCEL, BYE, UPDATE, INFO, REFER, NOTIFY, MESSAGE, PRACK

        Content-Type: application/sdp

        Supported: timer, 100rel, precondition

        User-Agent: T-Mobile VONR-RCSUP-ePDG-IR94-RTT-ussd-VVM SEC/SM-G998U G998USQU4AUG8

        P-Access-Network-Info: 3GPP-NR-FDD;utran-cell-id-3gpp=00101000001000000000

            access-type: 3GPP-NR-FDD

            utran-cell-id-3gpp: 00101000001000000000

        Content-Length: 440

    Message Body

        Session Description Protocol

            Session Description Protocol Version (v): 0

            Owner/Creator, Session Id (o): SAMSUNG-IMS-UE 175962184 1 IN IP6 2001:0:0:2::1

                Owner Username: SAMSUNG-IMS-UE

                Session ID: 175962184

                Session Version: 1

                Owner Network Type: IN

                Owner Address Type: IP6

                Owner Address: 2001:0:0:2::1

            Session Name (s): SS VOIP

            Connection Information (c): IN IP6 2001:0:0:2::1

                Connection Network Type: IN

                Connection Address Type: IP6

                Connection Address: 2001:0:0:2::1

            Time Description, active time (t): 0 0

                Session Start Time: 0

                Session Stop Time: 0

            Media Description, name and address (m): audio 1234 RTP/AVP 96 101

                Media Type: audio

                Media Port: 1234

                Media Protocol: RTP/AVP

                Media Format: DynamicRTP-Type-96

                Media Format: DynamicRTP-Type-101

            Bandwidth Information (b): AS:38

                Bandwidth Modifier: AS [Application Specific (RTP session bandwidth)]

                Bandwidth Value: 38 kb/s

            Bandwidth Information (b): RS:0

                Bandwidth Modifier: RS

                Bandwidth Value: 0

            Bandwidth Information (b): RR:2500

                Bandwidth Modifier: RR

                Bandwidth Value: 2500

            Media Attribute (a): rtpmap:96 EVS/16000

                Media Attribute Fieldname: rtpmap

                Media Format: 96

                MIME Type: EVS

                Sample Rate: 16000

            Media Attribute (a): fmtp:96 bw=nb-swb;br=5.9-13.2;max-red=220

                Media Attribute Fieldname: fmtp

                Media Format: 96 [EVS]

                Media format specific parameters: bw=nb-swb

                Media format specific parameters: br=5.9-13.2

                Media format specific parameters: max-red=220

            Media Attribute (a): rtpmap:101 telephone-event/16000

                Media Attribute Fieldname: rtpmap

                Media Format: 101

                MIME Type: telephone-event

                Sample Rate: 16000

            Media Attribute (a): fmtp:101 0-15

                Media Attribute Fieldname: fmtp

                Media Format: 101 [telephone-event]

                Media format specific parameters: 0-15

            Media Attribute (a): ptime:20

                Media Attribute Fieldname: ptime

                Media Attribute Value: 20

            Media Attribute (a): maxptime:240

                Media Attribute Fieldname: maxptime

                Media Attribute Value: 240

            Media Attribute (a): sendrecv

            Media Attribute (a): curr:qos local none

                Media Attribute Fieldname: curr

                Media Attribute Value: qos local none

            Media Attribute (a): curr:qos remote sendrecv

                Media Attribute Fieldname: curr

                Media Attribute Value: qos remote sendrecv

            Media Attribute (a): des:qos mandatory local sendrecv

                Media Attribute Fieldname: des

                Media Attribute Value: qos mandatory local sendrecv

            Media Attribute (a): des:qos mandatory remote sendrecv

                Media Attribute Fieldname: des

                Media Attribute Value: qos mandatory remote sendrecv

            [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]



[14]  Status: 180 Ringing



Internet Protocol Version 6, Src: 2001:0:0:2::1, Dst: 2001:0:0:11::2

Transmission Control Protocol, Src Port: 5060, Dst Port: 58024, Seq: 3131, Ack: 3551, Len: 941

Session Initiation Protocol (180)

    Status-Line: SIP/2.0 180 Ringing

        Status-Code: 180

        [Resent Packet: False]

    Message Header

        Via: SIP/2.0/TCP [2001:0:0:11::2]:58024;

              branch=z9hG4bKb0149d1122e24dd6a49f63b786d0a6407;rport;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 58024

            Branch: z9hG4bKb0149d1122e24dd6a49f63b786d0a6407

            RPort: rport

            transport=tcp

        Via: SIP/2.0/TCP [2001:0:0:11::2]:57994;

              branch=z9hG4bK9216066c0d2b4e51b61f22f36db61549c6782a09;transport=tcp

            Transport: TCP

            Sent-by Address: 2001:0:0:11::2

            Sent-by port: 57994

            Branch: z9hG4bK9216066c0d2b4e51b61f22f36db61549c6782a09

            transport=tcp

        Max-Forwards: 70

        Record-Route: <sip:[2001:0:0:11::2]:5060;lr>

            Record-Route URI: sip:[2001:0:0:11::2]:5060;lr

                Record-Route Host Part: [2001:0:0:11::2]

                Record-Route Host Port: 5060

                Record-Route URI parameter: lr

         [truncated]Contact: <sip:+98765432100@[2001:0:0:2::1]:5060>;

               +sip.instance="<urn:gsma:imei:35012167-001225-0>";

               +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel";+g.3gpp.mid-call;

               +g.3gpp.srvcc-alerting;+g.3gpp.ps2cs-srvcc-orig-p

            Contact URI: sip:+98765432100@[2001:0:0:2::1]:5060

                Contact URI User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                Contact URI Host Part: [2001:0:0:2::1]

                Contact URI Host Port: 5060

            Contact parameter: +sip.instance="<urn:gsma:imei:35012167-001225-0>"

            Contact parameter: +g.3gpp.icsi-ref="urn%3Aurn-7%3A3gpp-service.ims.icsi.mmtel"

            Contact parameter: +g.3gpp.mid-call

            Contact parameter: +g.3gpp.srvcc-alerting

            Contact parameter: +g.3gpp.ps2cs-srvcc-orig-pre-alerting

            Contact parameter: video

            Contact parameter: text

        To: <sip:+98765432100@test.3gpp.com>;tag=6c0f9425

            SIP to address: sip:+98765432100@test.3gpp.com

                SIP to address User Part: +98765432100

                E.164 number (MSISDN): 98765432100

                    Country Code: Iran (Islamic Republic of) (98)

                SIP to address Host Part: test.3gpp.com

            SIP to tag: 6c0f9425

        From: <sip:0123456789@test.3gpp.com>;tag=1111111111

            SIP from address: sip:0123456789@test.3gpp.com

                SIP from address User Part: 0123456789

                SIP from address Host Part: test.3gpp.com

            SIP from tag: 1111111111

        Call-ID: 80a0494490184dc1b46f8994e9e4efc7

        [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]

        CSeq: 57001 INVITE

            Sequence Number: 57001

            Method: INVITE

        Supported: timer, 100rel, precondition

        User-Agent: T-Mobile VONR-RCSUP-ePDG-IR94-RTT-ussd-VVM SEC/SM-G998U G998USQU4AUG8

        P-Access-Network-Info: 3GPP-NR-FDD;utran-cell-id-3gpp=00101000001000000000

            access-type: 3GPP-NR-FDD

            utran-cell-id-3gpp: 00101000001000000000

        Content-Length: 0



[15] EVS      107    PT=EVS, SSRC=0x33050, Seq=1, Time=277680, Mark, EVS Primary 13.2



Internet Protocol Version 6, Src: 2001:0:0:2::1, Dst: 2001:0:0:11::2

User Datagram Protocol, Src Port: 1234, Dst Port: 32000

Real-Time Transport Protocol

    [Stream setup by SDP (frame 185)]

        [Setup frame: 185]

        [Setup Method: SDP]

        [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]

    10.. .... = Version: RFC 1889 Version (2)

    ..0. .... = Padding: False

    ...0 .... = Extension: False

    .... 0000 = Contributing source identifiers count: 0

    1... .... = Marker: True

    Payload type: EVS (96)

    Sequence number: 1

    [Extended sequence number: 65537]

    Timestamp: 277680

    Synchronization Source identifier: 0x00033050 (208976)

Enhanced Voice Services

    [Framing Mode: Compact]

     EVS Primary 13.2, packet_len 264 bits

    Voice Data

        0111 0... = BW CT RF Index: SWB inactive (14)



[16] EVS      107    PT=EVS, SSRC=0x33051, Seq=1, Time=277680, Mark, EVS Primary 13.2



Internet Protocol Version 6, Src: 2001:0:0:11::2, Dst: 2001:0:0:2::1

User Datagram Protocol, Src Port: 32000, Dst Port: 1234

Real-Time Transport Protocol

    [Stream setup by SDP (frame 190)]

        [Setup frame: 190]

        [Setup Method: SDP]

        [Generated Call-ID: 80a0494490184dc1b46f8994e9e4efc7]

    10.. .... = Version: RFC 1889 Version (2)

    ..0. .... = Padding: False

    ...0 .... = Extension: False

    .... 0000 = Contributing source identifiers count: 0

    1... .... = Marker: True

    Payload type: EVS (96)

    Sequence number: 1

    [Extended sequence number: 65537]

    Timestamp: 277680

    Synchronization Source identifier: 0x00033051 (208977)

Enhanced Voice Services

    [Framing Mode: Compact]

     EVS Primary 13.2, packet_len 264 bits

    Voice Data

        0111 0... = BW CT RF Index: SWB inactive (14)

Reference
