Antenna Radiation - Rotating Beam

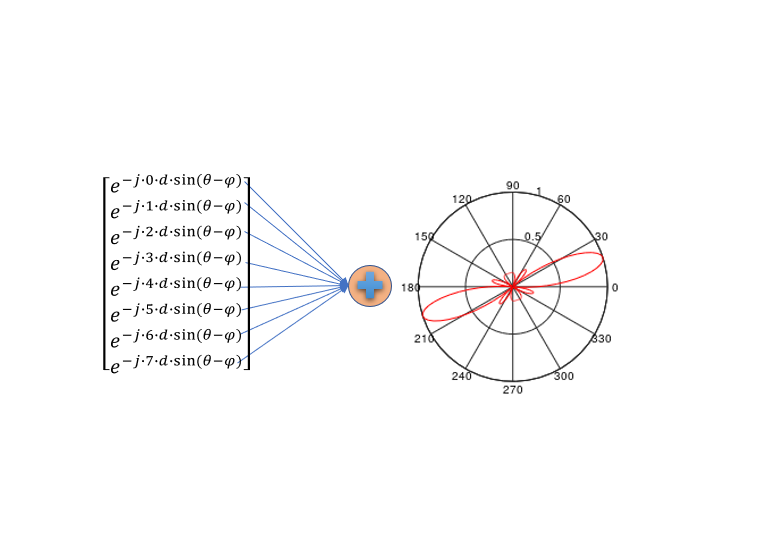

this code shows  beam steering by phase in the antenna array. By varying the progressive phase shift p across the 8 elements, the code demonstrates electronic beam steering while maintaining the beam shape. The phase controls the steering angle.

• Key Aspects:
• Defines array factor based on phase term p
• Coherently sums array factors
• Plots beam patterns
• Parameters:
• n = 8 elements
• d = spacing between elements
• p = progressive phase shift
• Varying p steers the beam direction
• Keeps main lobe width and sidelobes fixed

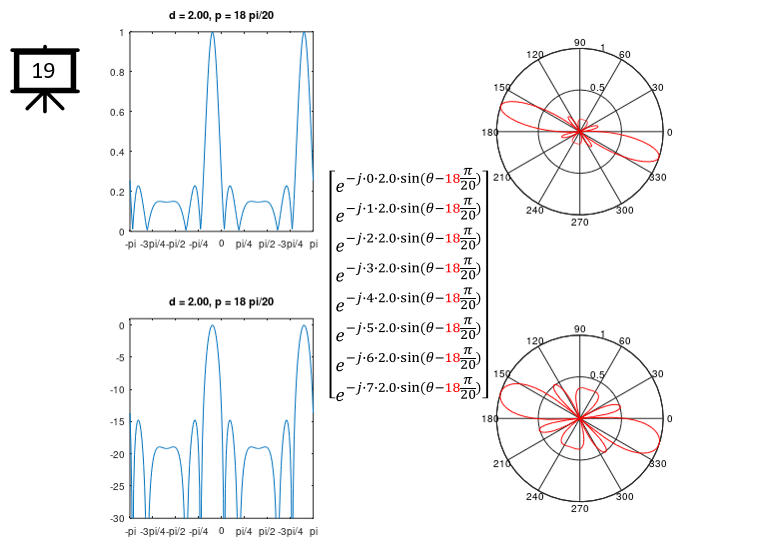

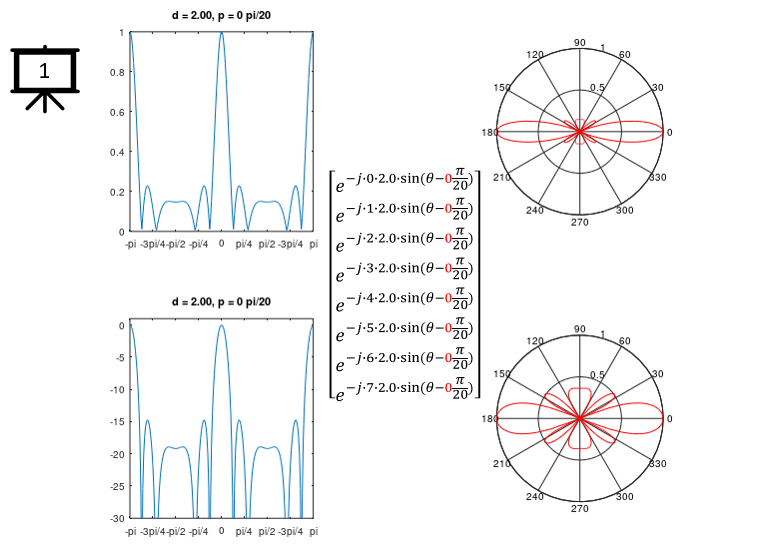

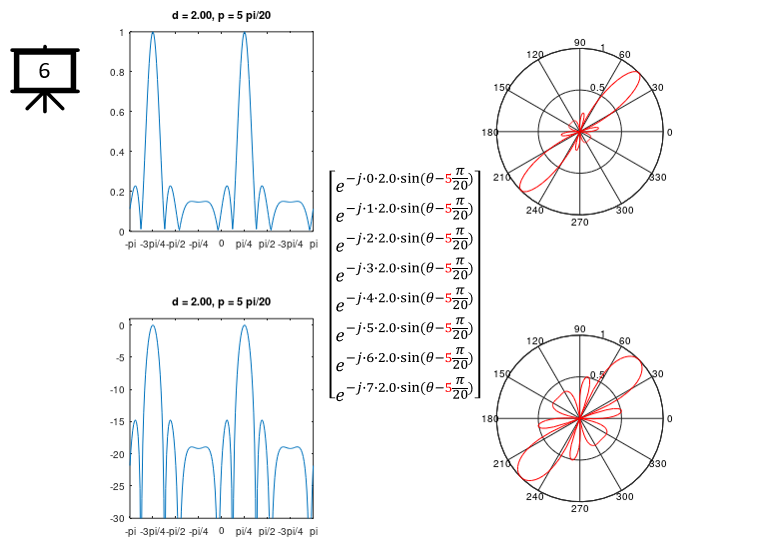

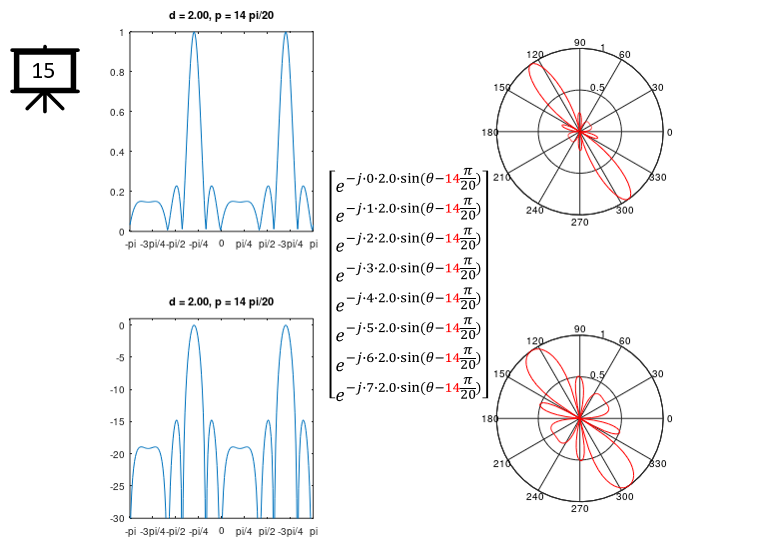

• Plots:
• Array factor magnitude vs angle
• Normalized array factor
• Array factor in dB
• Beam steering on x-axis

< Code 1 >

theta = -1.0*pi:pi/100:1.0*pi;

phaseShift = exp(-j*2*pi/8);

pn = 20;

p = pn*pi/20;

d = 2.0;

a_theta = [exp(-j .* 0 .* d .* sin(theta-p)) ;

           exp(-j .* 1 .* d .* sin(theta-p));

           exp(-j .* 2 .* d .* sin(theta-p));

           exp(-j .* 3 .* d .* sin(theta-p));

           exp(-j .* 4 .* d .* sin(theta-p));

           exp(-j .* 5 .* d .* sin(theta-p));

           exp(-j .* 6 .* d .* sin(theta-p));

           exp(-j .* 7 .* d .* sin(theta-p))];

n = 8;

a_theta =  a_theta([1:n],:);

a_theta_sum = sum(a_theta);

%s_theta_sum = sum(s_theta);

a_theta_sum_abs = abs(a_theta_sum);

a_theta_sum_abs = a_theta_sum_abs ./ max(a_theta_sum_abs);

a_theta_sum_abs_dB = 10 .* log(a_theta_sum_abs);

for i = 1:length(a_theta_sum_abs_dB)

    if a_theta_sum_abs_dB(i) <= -30

        a_theta_sum_abs_dB(i) = -30;

    end;

end;

a_theta_sum_abs_dB = a_theta_sum_abs_dB - min(a_theta_sum_abs_dB);

if max(a_theta_sum_abs_dB) != 0

   a_theta_sum_abs_dB = a_theta_sum_abs_dB/max(a_theta_sum_abs_dB);

end;

hFig = figure(1,'Position',[300 300 700 600]);

subplot(2,5,[1 2]);

plot(theta,a_theta_sum_abs);

xlim([-pi pi]);

ylim([0 1]);

tStr = sprintf("d = %0.2f, p = %d pi/20",d,pn);

title(tStr);

set(gca,'xtick',[-pi -(3/4)*pi  -pi/2 -pi/4 0 pi/4 pi/2 (3/4)*pi pi]);

set(gca,'xticklabel',{'-pi','-3pi/4','-pi/2' '-pi/4' '0' 'pi/4' 'pi/2','-3pi/4','pi'});

subplot(2,5,[4 5]);

polar(theta,a_theta_sum_abs,'-r');

t = findall(gcf,'type','text');

%delete(t);

subplot(2,5,[6 7]);plot(theta,10 .* log(a_theta_sum_abs));ylim([-30 1]);

xlim([-pi pi]);

tStr = sprintf("d = %0.2f, p = %d pi/20",d,pn);

title(tStr);

set(gca,'xtick',[-pi -(3/4)*pi  -pi/2 -pi/4 0 pi/4 pi/2 (3/4)*pi pi]);

set(gca,'xticklabel',{'-pi','-3pi/4','-pi/2' '-pi/4' '0' 'pi/4' 'pi/2','-3pi/4','pi'});

subplot(2,5,[9 10]);

polar(theta,a_theta_sum_abs_dB,'-r');

t = findall(gcf,'type','text');
