In this page, I will show you how to download and install the VirtualBox softwre on my Windows PC and install a Linux on the Virtual box.  The setup that I am using at the time of writing (Jan 2018) are as follows.

• Windows 7 (I've tried on Windows 10 as well) PC
• VirtualBox v5.1 (I've tried v5.2 as well)
• Ubuntu 16.2 (I've tried with Ubuntu 16.04). You can download Ubutu here.

NOTE : Recently (Apr 2019), I have installed the virtual box as follows.

• Windows 10 PC
• VirtualBox v6.0
• Ubuntu 19.4. You can download Ubutu here.

I see a little bit of changes on Virtual Box GUI from this tutorial, but overall procedure hasn't changed.

NOTE : Recently (Dec 2020), I have installed the virtual box as follows.

• Windows 10 PC
• VirtualBox v6.1
• Ubuntu 20.04.1 LTS(Long Term Support). You can download Ubutu here.

I see a little bit of changes on Virtual Box GUI from this tutorial, but overall procedure hasn't changed.

NOTE : Recently (Aug 2024), I have installed the virtual box as follows.

• Windows 11 PC
• VirtualBox v7.1
• Ubuntu 22.04.1 LTS(Long Term Support). You can download Ubutu here.

I see a little bit of changes on Virtual Box GUI from this tutorial, but overall procedure hasn't changed.

Followings are the overal steps to install VirtualBox and Install an Operating System (Ubuntu in this case) on it.

• Where to get VirtualBox ?
• Check if your PC allows Virtualization
• Install VirtualBox
• Install Linux (Ubuntu) on VirtualBox

Following is some additional tips to extend the functionality of the virtual machine.

• Linux : VirtualBox : Bridged Network Interface (Physical Network Interface between Host and Guest)
• Linux : VirtualBox : Setting a Network Interface between Host and Virtual PC
• Linux : VirtualBox : Setting a Sharefolder for VirtualBox and Windows
• Linux : VirtualBox : Setting a Serial Port
• Linux : VirtualBox : Sharing Clipboard between Host and Virtual box

Where to get VirtualBox ?

You can download the VirtualBox for various operating system from VirtualBox wiki page or VirtualBox main page. You can download it for free.

Check if your PC allows Virtualization

In some PC, you may install the Virtual Machine (e.g, VirtualBox) directly with no problem, but in some PC BIOS might be configured to block the virtualization of the PC. I would suggest you to check your PC BIOS and make it sure to configure the BIOS to allow PC Virtualization. See this page on how to change the virtualization configuration in BIOS.

Install VirtualBox

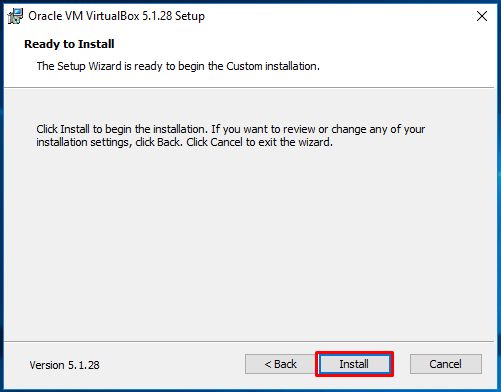

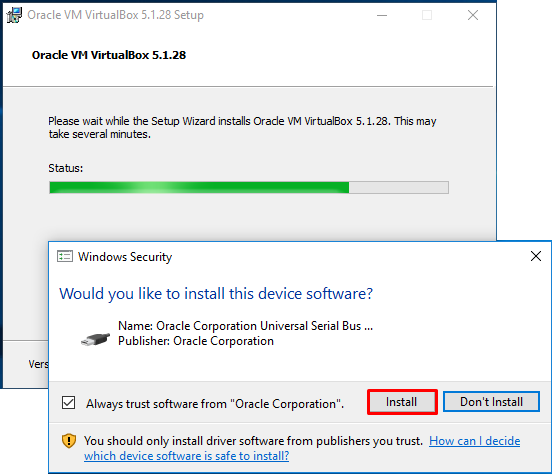

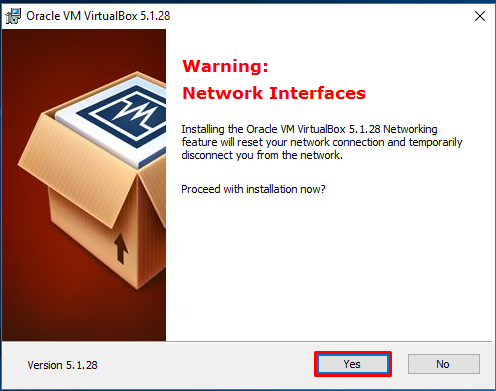

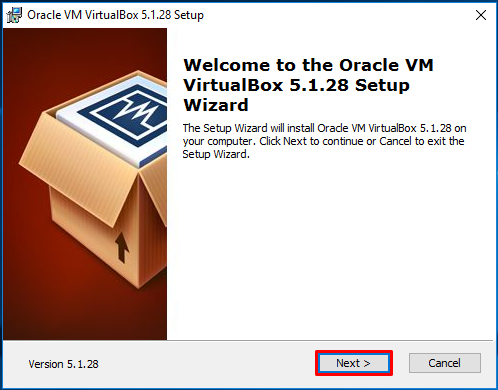

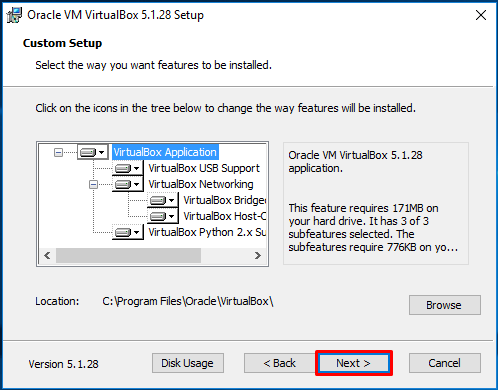

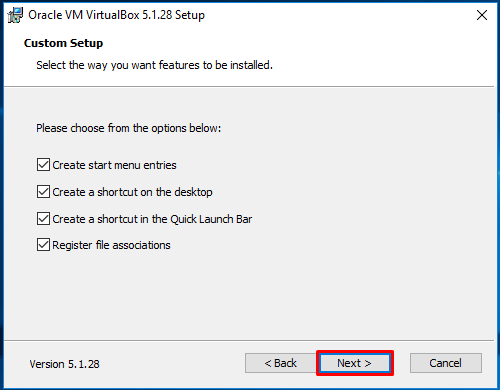

This section shows you how to install the VirtualBox on my Windows PC. I would not put any special comments on this section because it is pretty straightforward and just click on Next/OK buttons with default setting.

Install Linux (Ubuntu) on VirtualBox

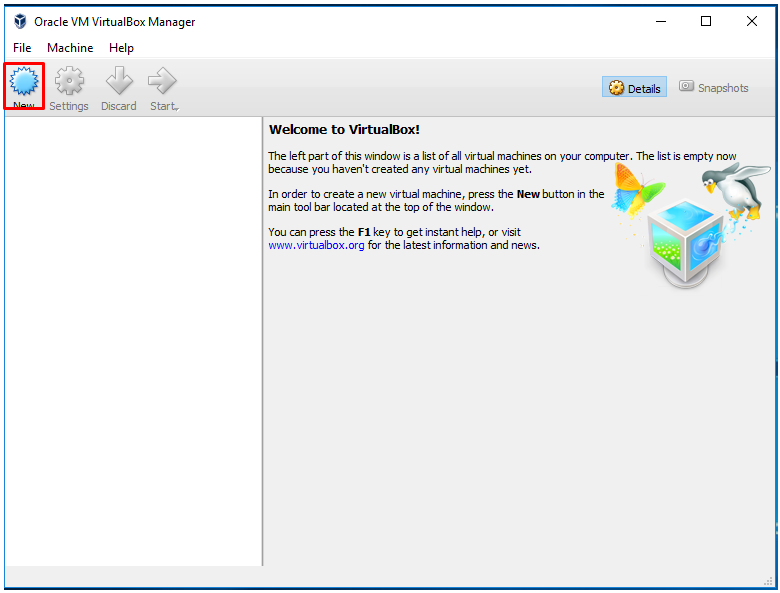

This section will show you on how to install Ubuntu on the VirtualBox. At almost every steps, you will see some configuration you select or type in some numbers. It is up to you on what to select. The screenshots shown here is just what I have chosen for my installation.  Just follow the screenshots and you wouldn't need much of the explanation.

In Name field, you can type in any name as you like and then select the type of Operating system using the dropdown box in Type field. And select the version of the selected Operating System Type.

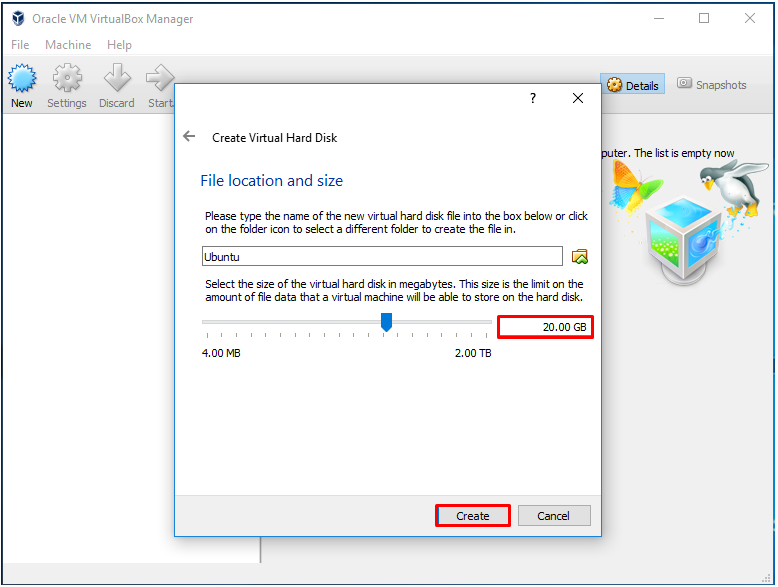

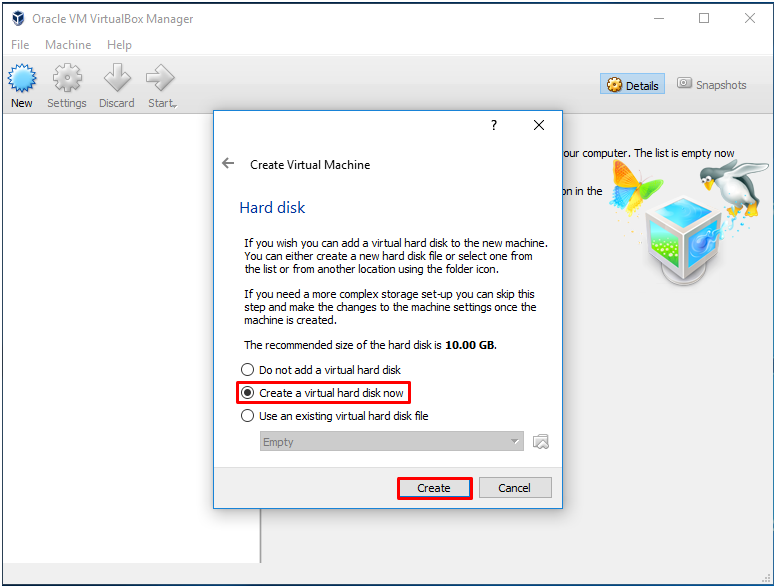

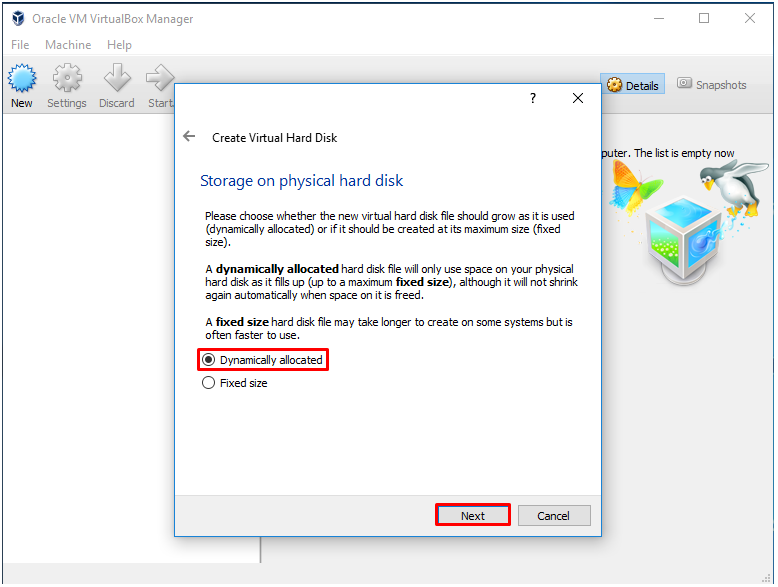

I would suggest you to increase this space a little bit more than the default value. The default value would be big enough to install the operating system itself, but as you use more on the operating system you would need to install more and more application software on it. At some point, you would reach the max disk space and will not be able to install any more application software.

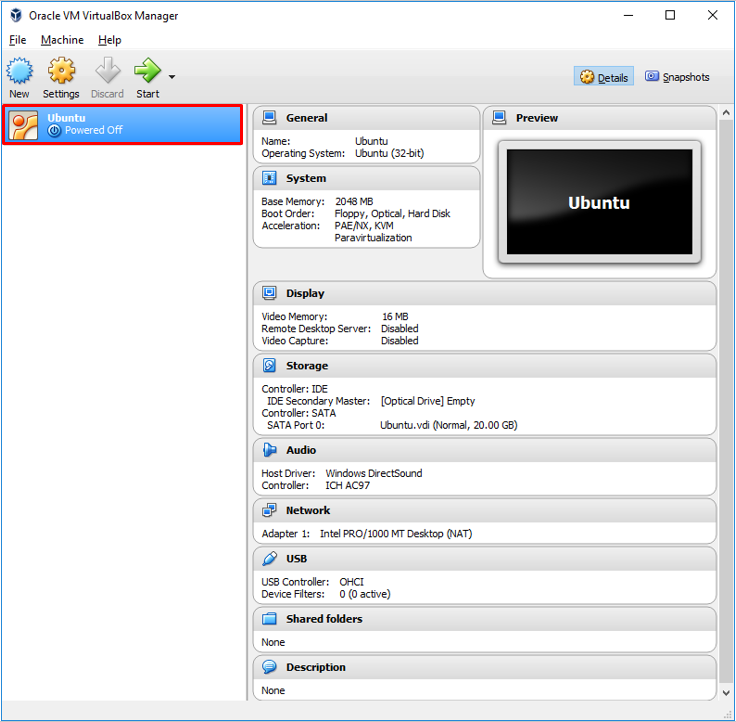

Now double click the Ubuntu button.

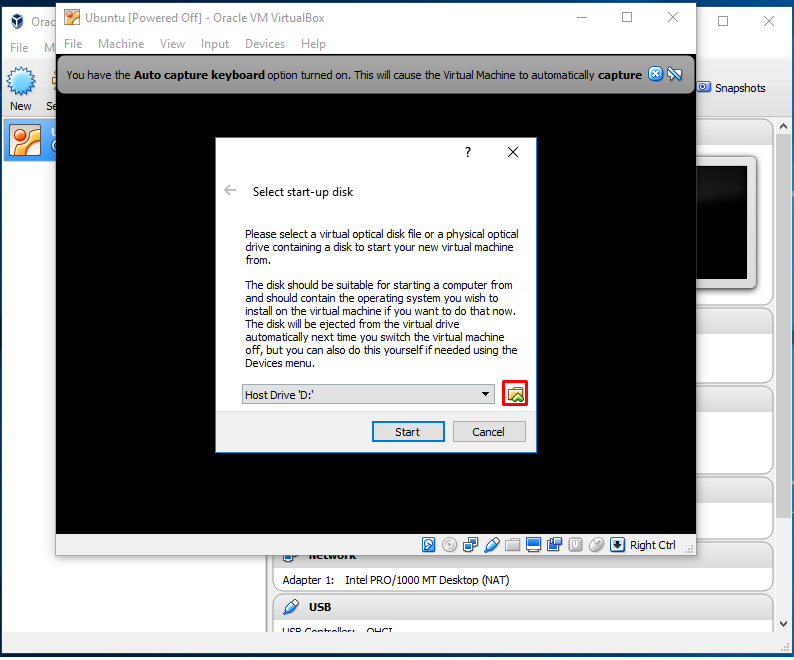

When you run the operating system button for the first time, you need to go through these steps. Once you complete these process, you don't need to do this next time.

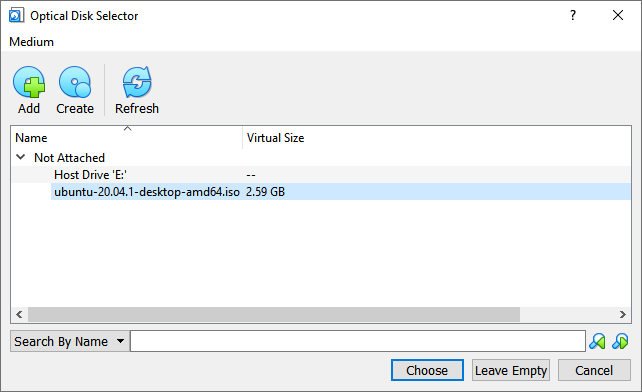

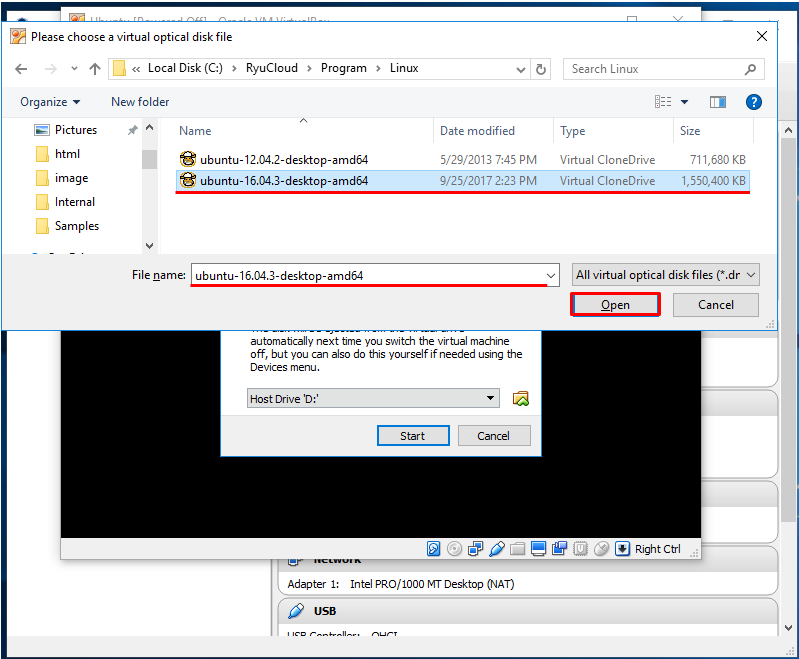

NOTE : When I tried with Virtual Box 6.1, I got the following window at this point. If you see the ubuntu image file(iso file) you want to install in this box, just select it and hit [Choose]. If you don't see the operating system you want to install in this list, hit [Add] button.

NOTE : If you run the Ubutu for the first time in the Virtual box, you would get the Ubuntu Installation screen. Then follow through the installation process as it instructs.

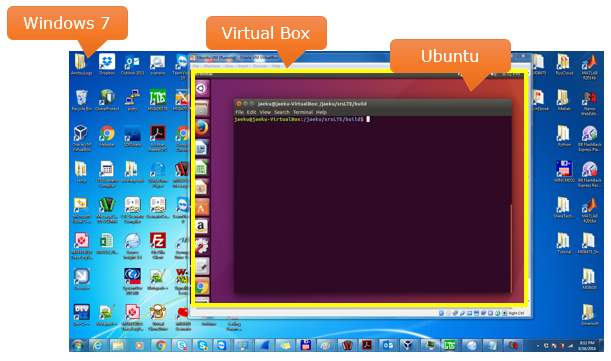

Now you see Ubuntu is running as show below.
